THE ALL-NEW PROCESS X
THE ALL-NEW PROCESS X
The Process X and Process X DL are our answer to big days of gravity-fueled riding. Two carbon models feature 170mm/162mm front and rear travel, 29" wheels, and aggressive geometry ready to charge down the burliest of descents. While the Process X is the enduro/freeride bike designed with descents in mind, it is still able to pedal up big climbs to get you to the goods.
Two All-New Carbon models
Process X DL
Process X
Find out what makes the Process X the ultimate gravity weapon for today's mountain biker.
Process X
A gravity rider's ultimate all-mountain weapon.

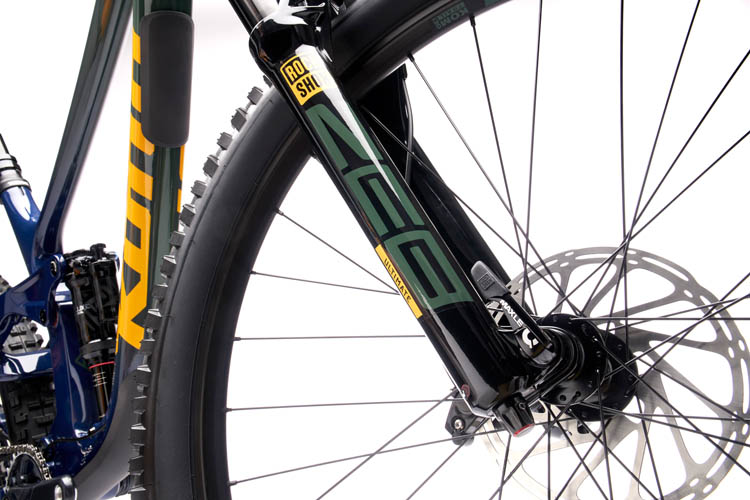

Both models feature 170mm of front travel ready to take the biggest hits.
162mm of rear travel keep things smooth across all terrain. The trunnion mounted shock allows for a full size bottle to fit in all frame sizes.
Chainstay length can be adjusted to 435mm or 450mm to achieve either a playful or hard-charging ride.
Shorter riders on smaller frames will find a better balance with the shorter chainstay setting and taller riders who have higher saddle heights and center of gravity may find more balance in the longer setting.
A 63.5° head tube angle paired with a reduced offset fork makes for aggressive descending.
A 77.5° seat tube angle puts the rider in a comfortable pedaling position when climbing.
A shorter seat tube length allows for longer travel droppers across all sizes. Smalls and mediums run a 170mm post. Larges and Extra Larges run a 200mm post.
Both models feature clean internal cable routing. You're also able to mount your brakes moto-style.
A flip chip allows you to run either a 29"or 27.5" rear wheel.

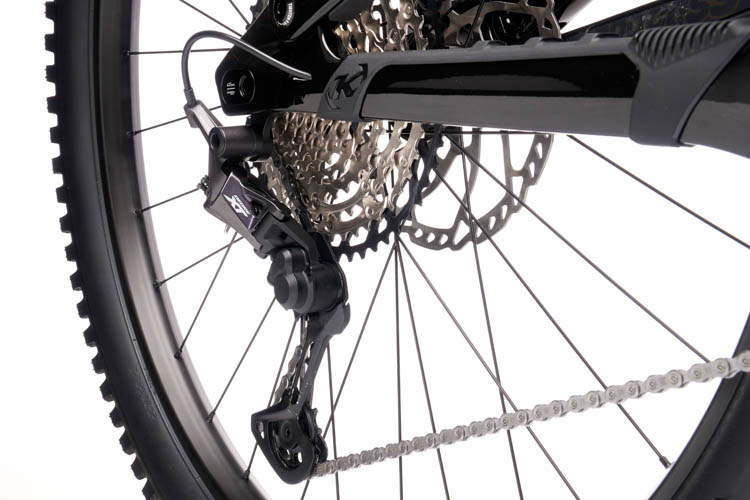

The Process X runs a Shimano XT/SLX drivetrain and XT brakes.
The Process X DL runs a SRAM X01 drivetrain and SRAM Code RSC brakes.
A custom downtube protector keeps bikes from wear and tear during shuttling.
ISCG-05 tabs make mounting a chain guide easy
