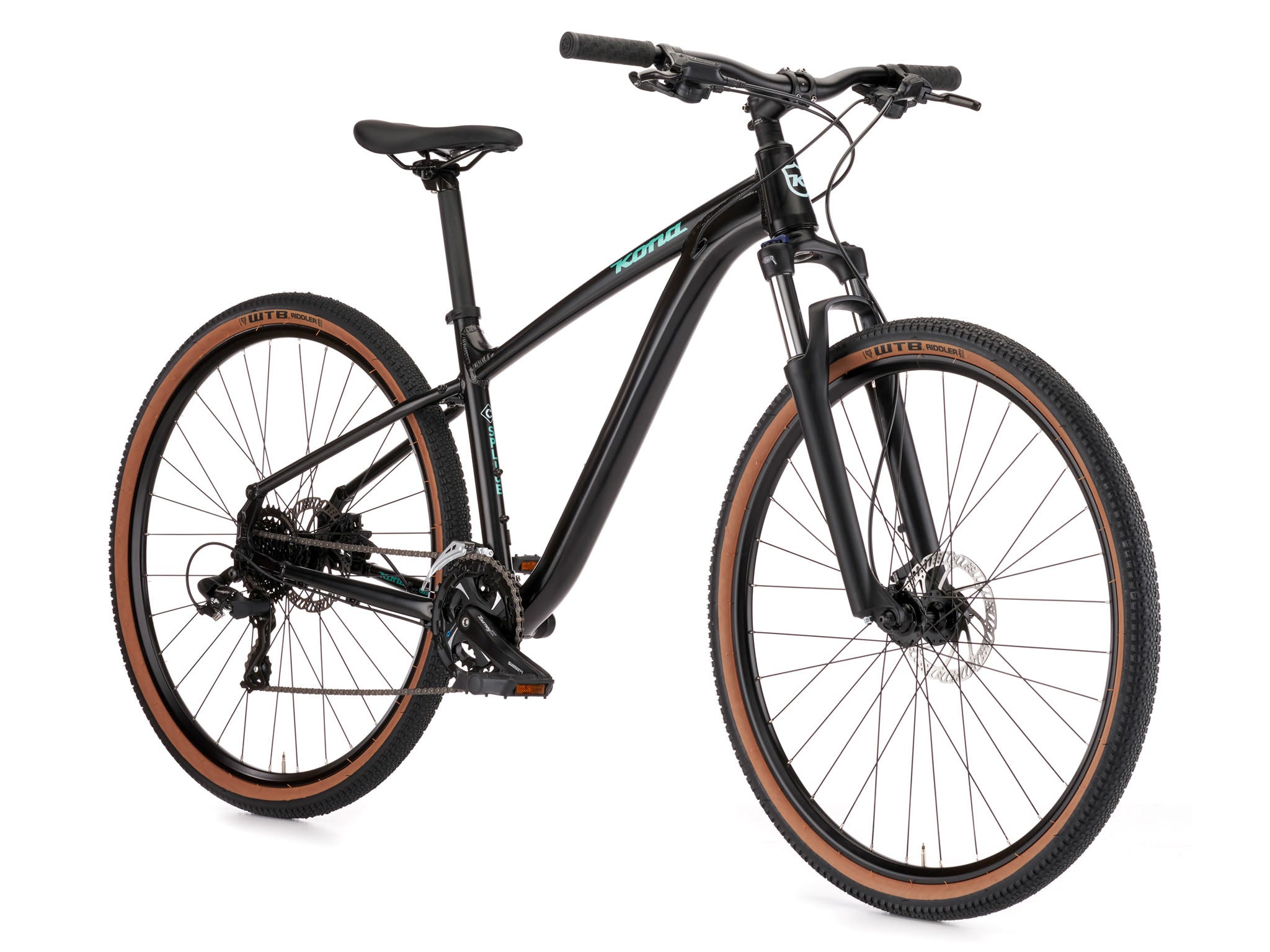

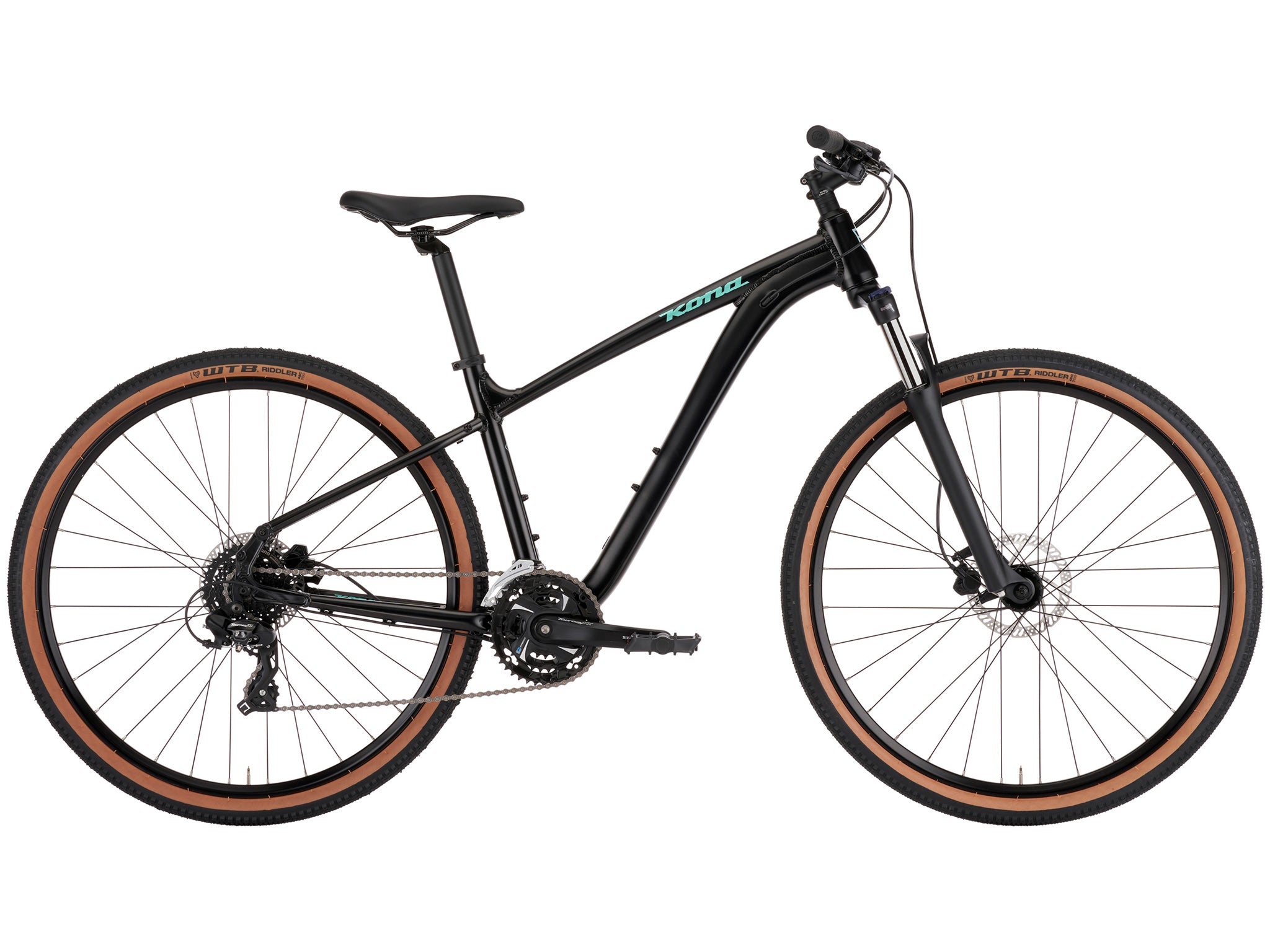

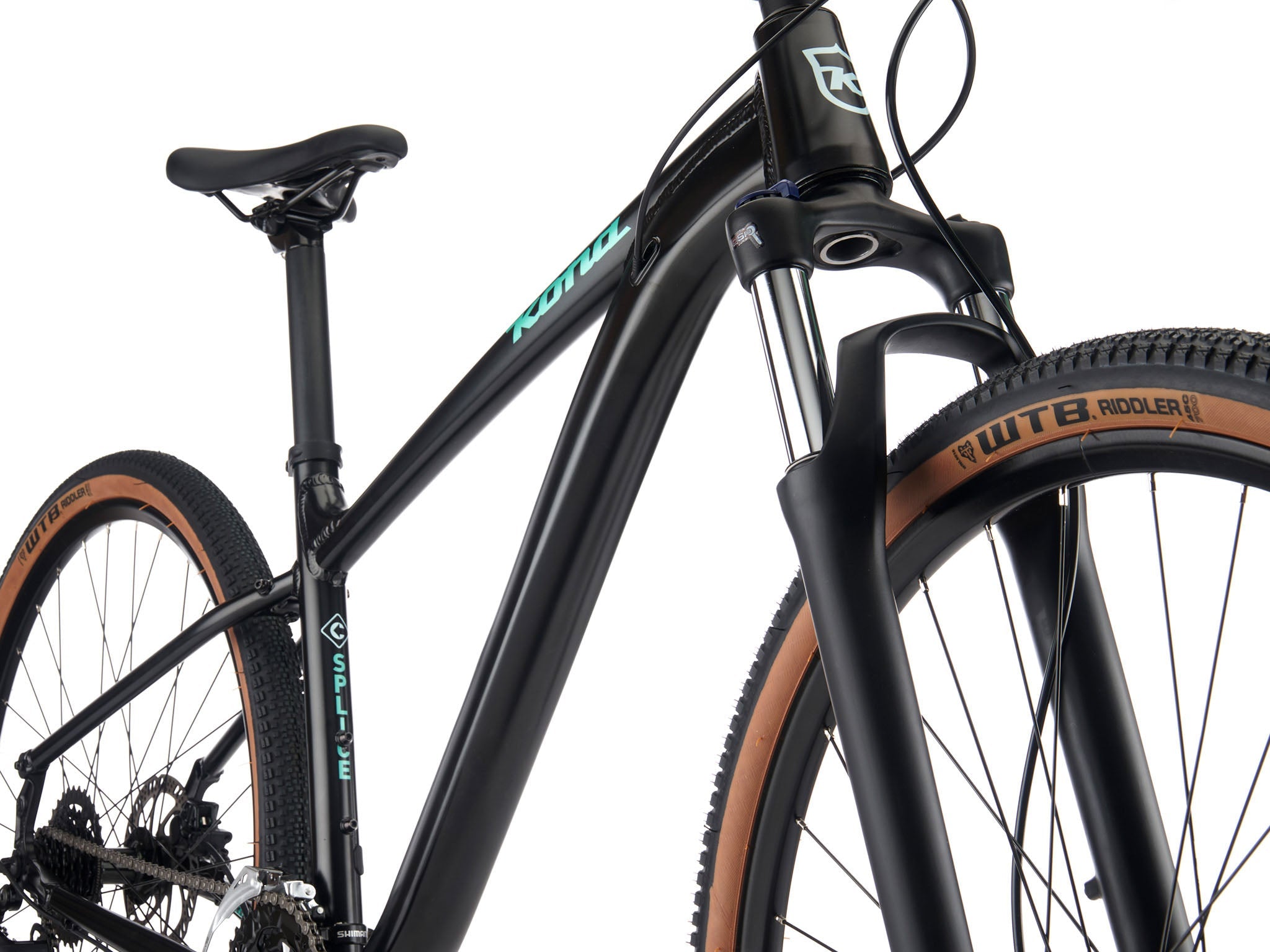

The Splice strikes that coveted balance of bike path-cruiser and hybrid comfort. It’s the perfect complement to a camping trip, the perfect steed for rides through the local park, and it’s also a great commuter. It’s got modern geometry that provides an excellent fit with a shorter reach and the ability to run a dropper post. The Splice has just enough suspension up front that you can lock out for efficient pedaling, hydraulic disc brakes for powerful stopping, and sturdy wheels and tires. It may just tempt you to explore further than ever before.
SPECS & GEOMETRY
SPECIFICATIONS

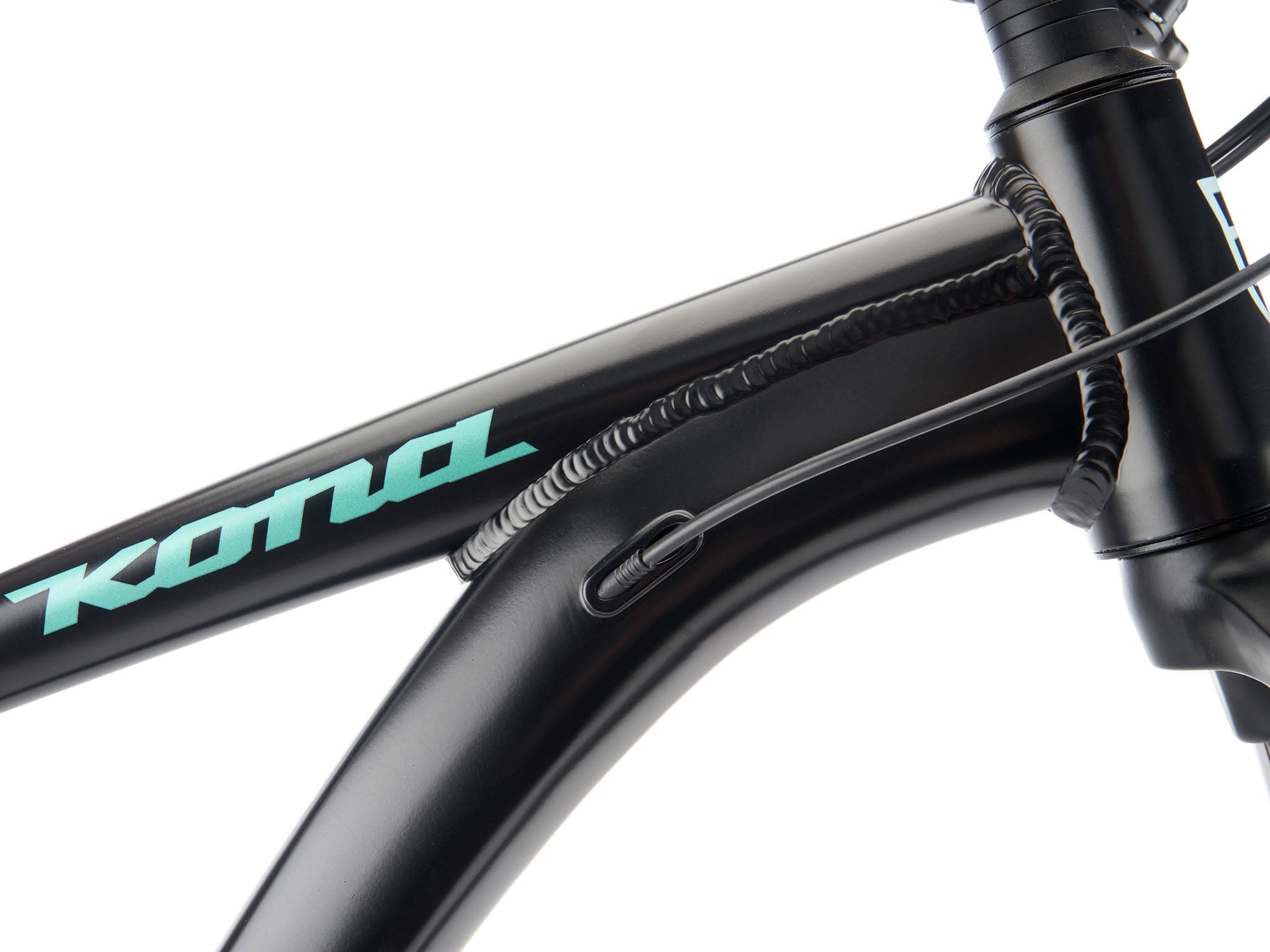

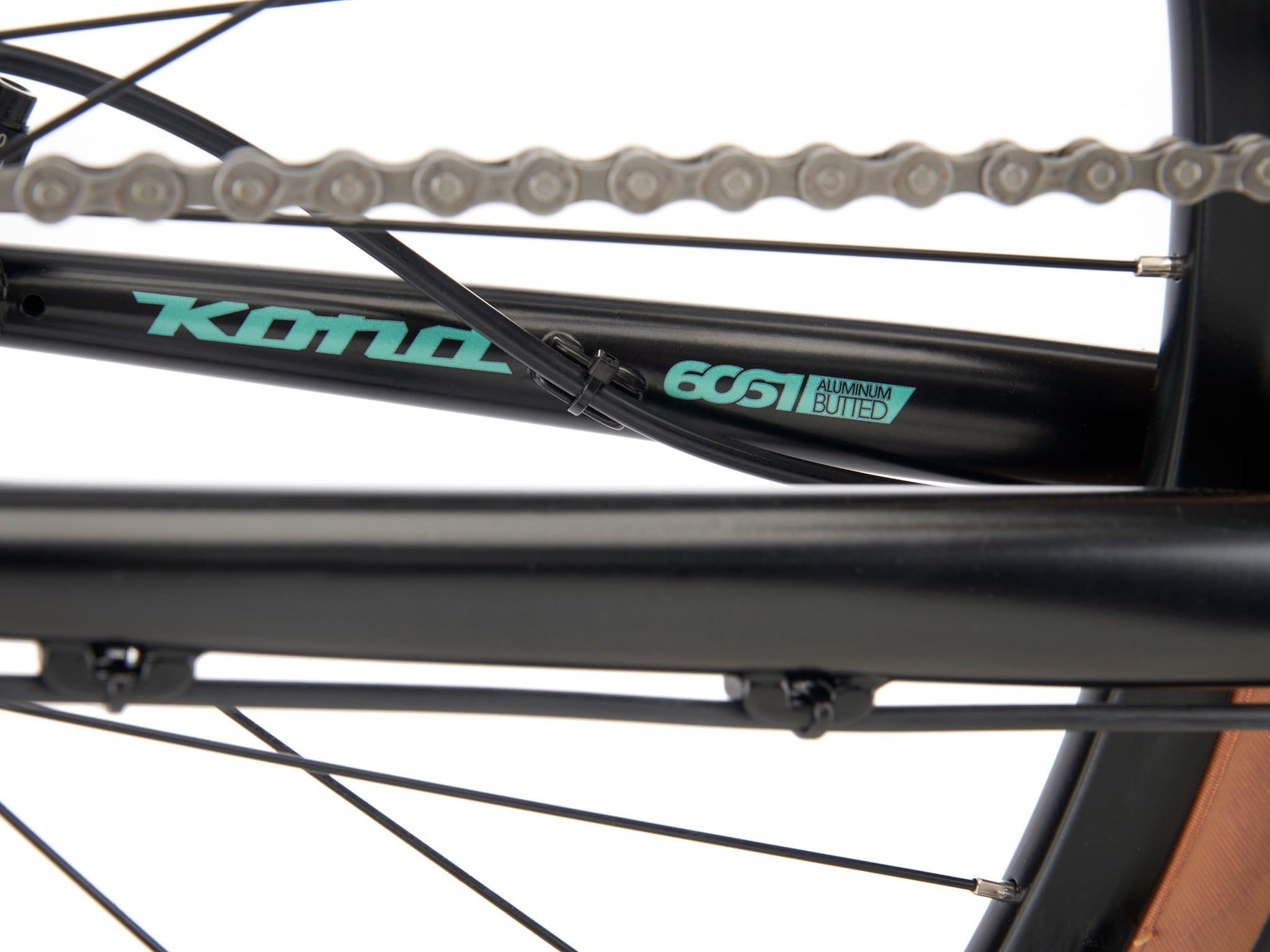

| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |

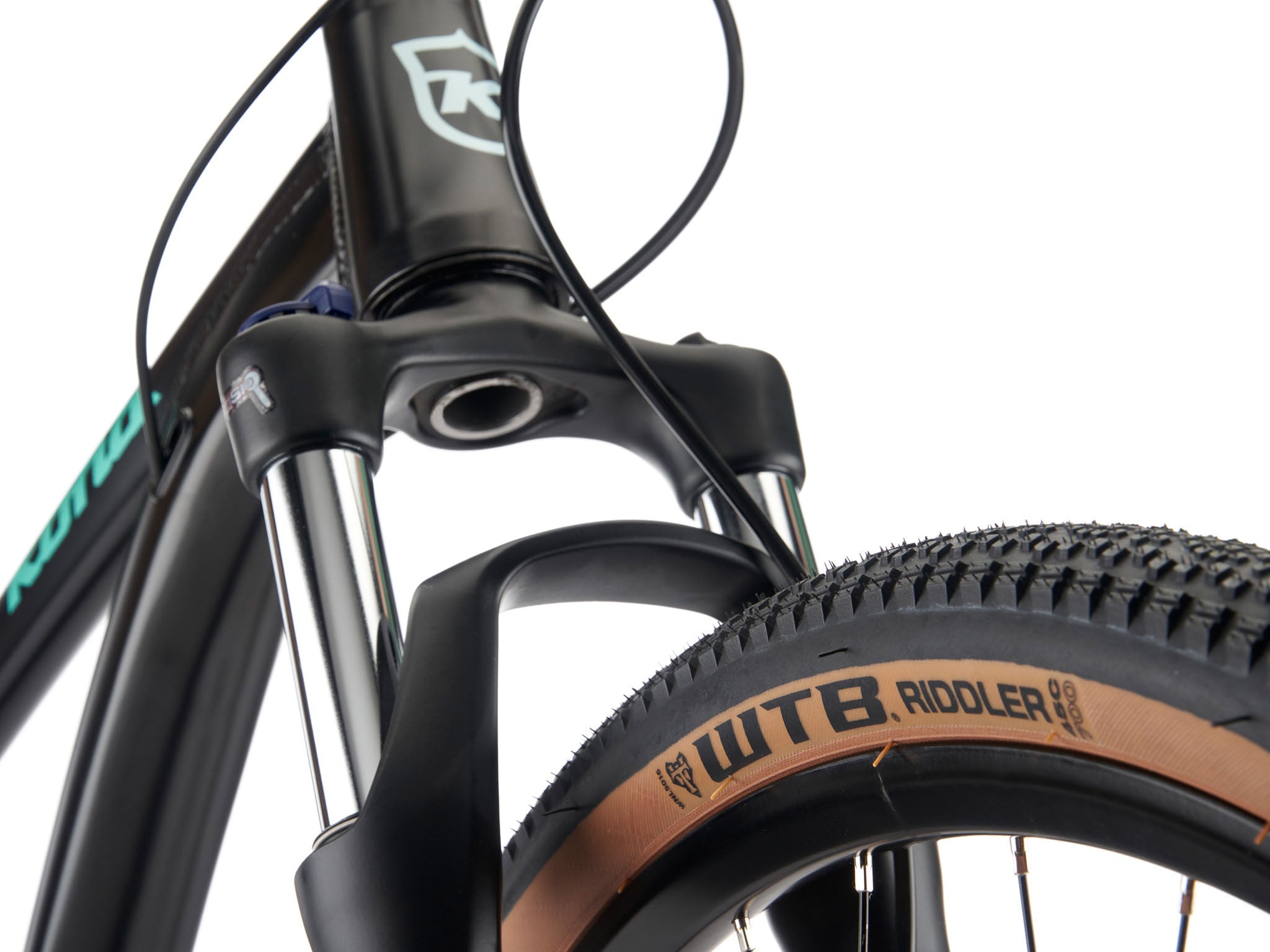

| Fork | Suntour NEX Coil Spring 80mm |

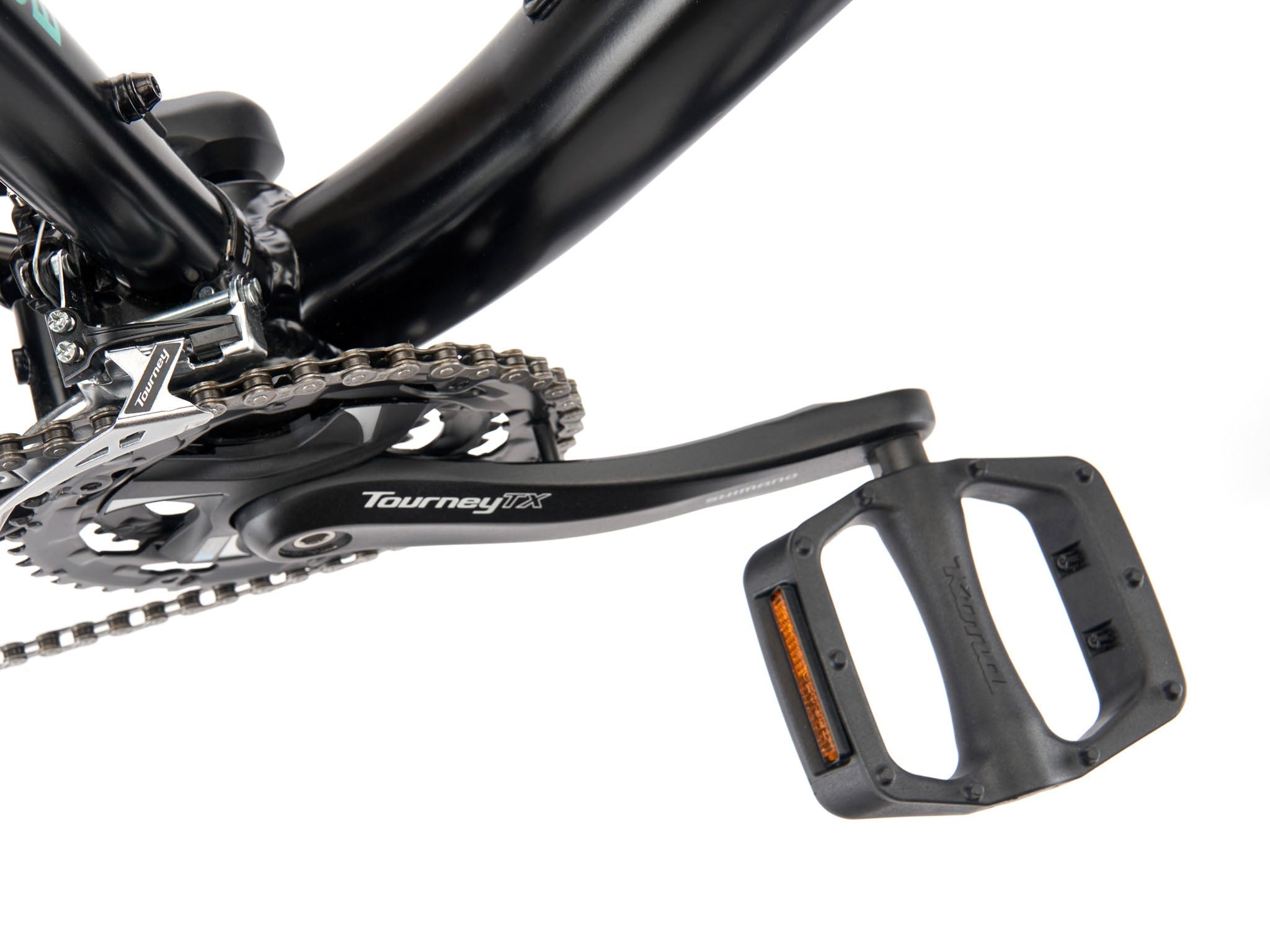

| Crankarms | Shimano |
| Chainrings | 22/32/42t |
| B/B | FSA 68mm |
| Pedals | Kona JS2 |
| Chain | KMC Z8.3 |
| Cassette | Shimano Altus 11-34t 8spd |
| Chainguide | n/a |
| F/D | Shimano Tourney |

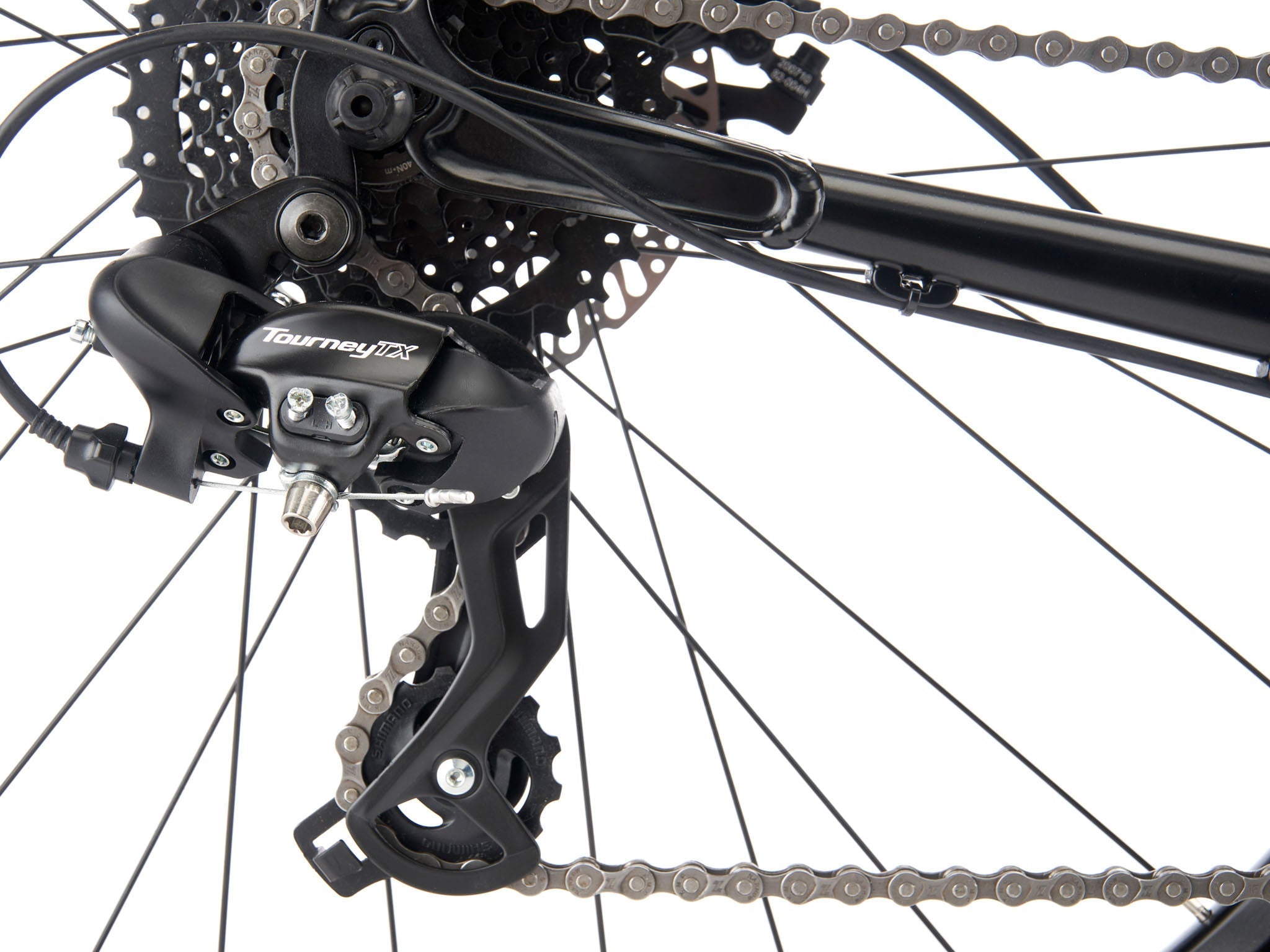

| R/D | Shimano Tourney |
| Shifters | Shimano Altus |

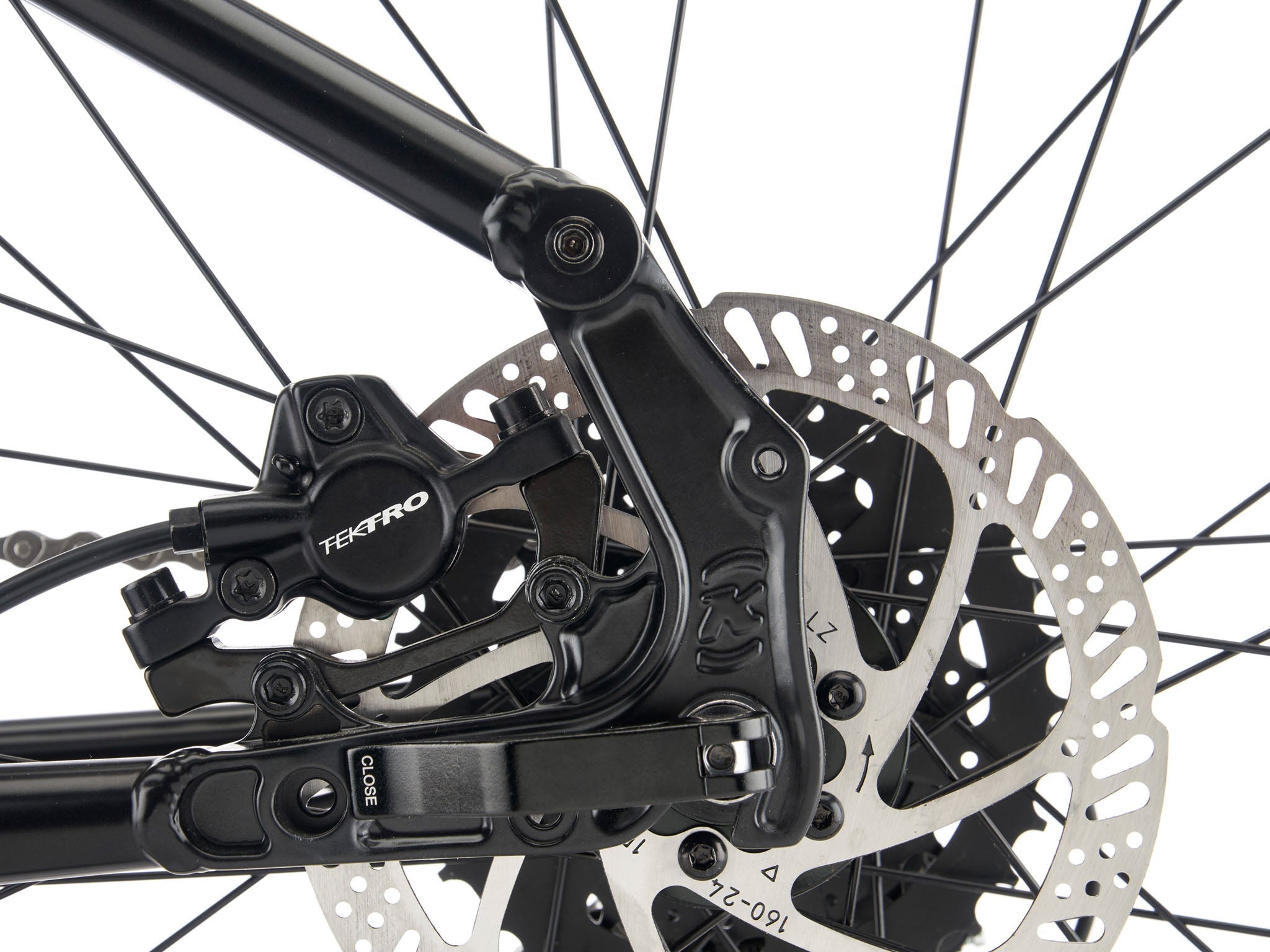

| Brake Calipers | Clarks M2 Hydraulic |
| Front Brake Rotor | Clarks M2 160mm |
| Rear Brake Rotor | Clarks M2 160mm |

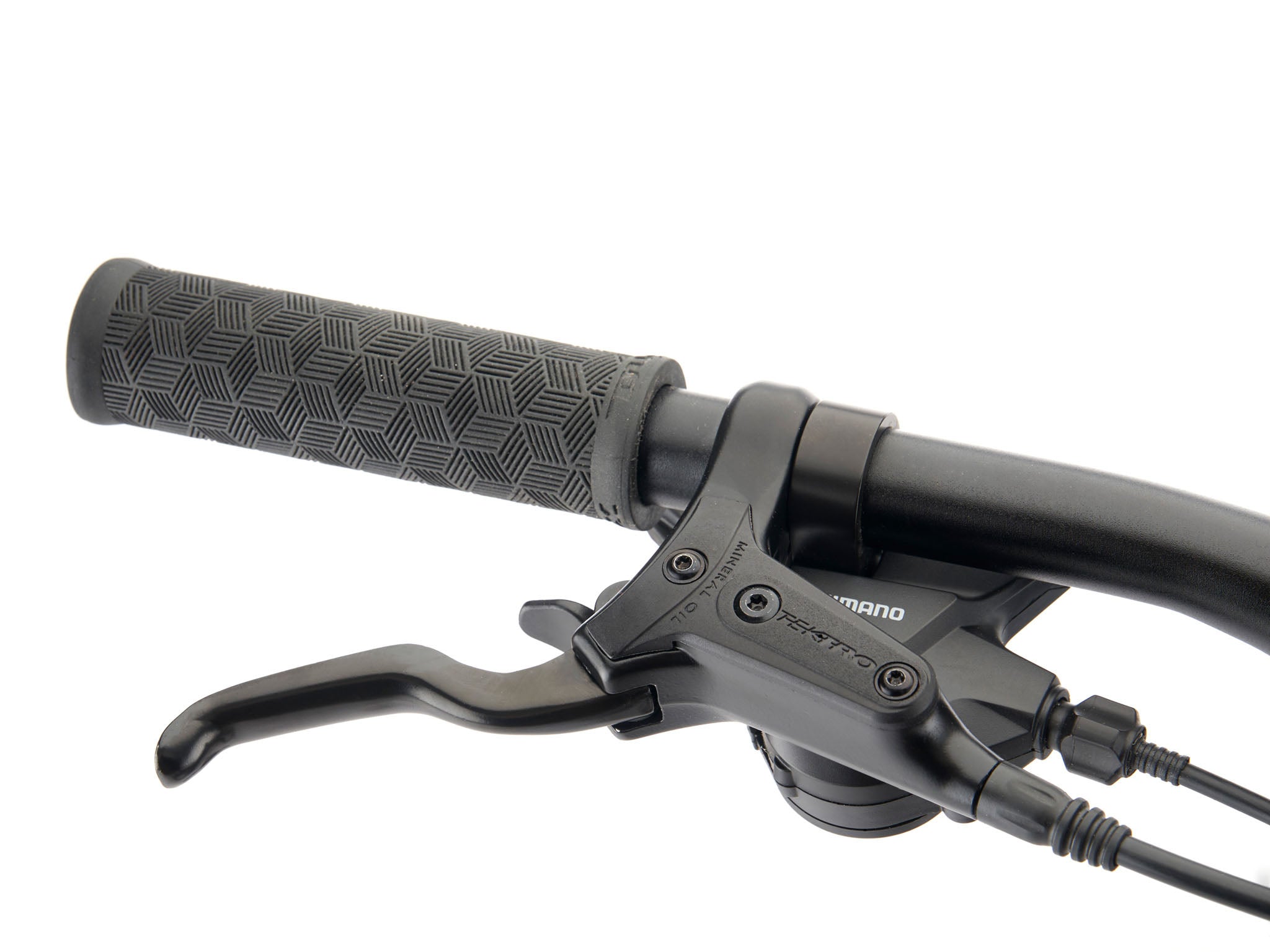

| Brake Levers | Clarks M2 Hydraulic |

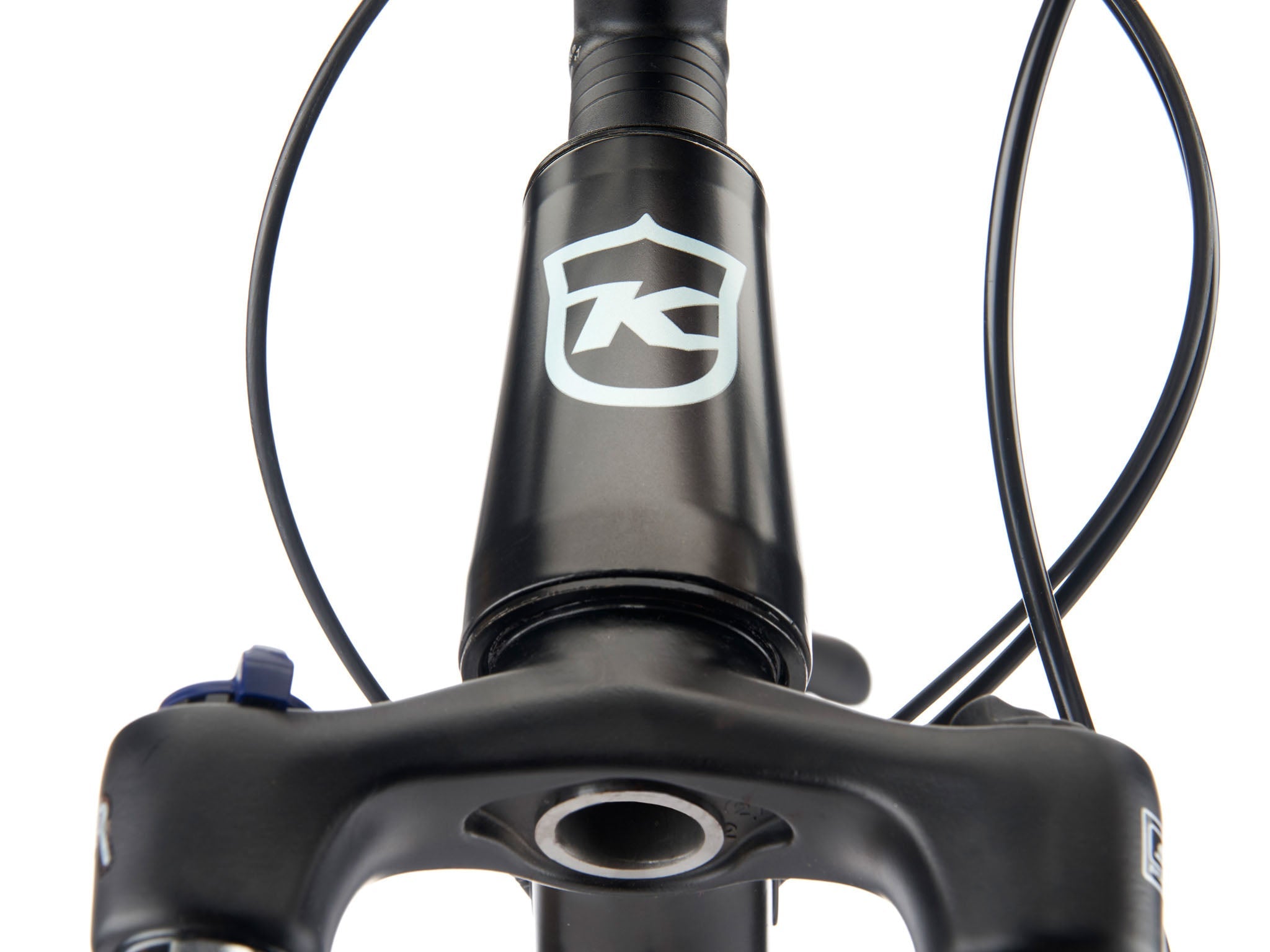

| Headset | Feimin FP-H863 |

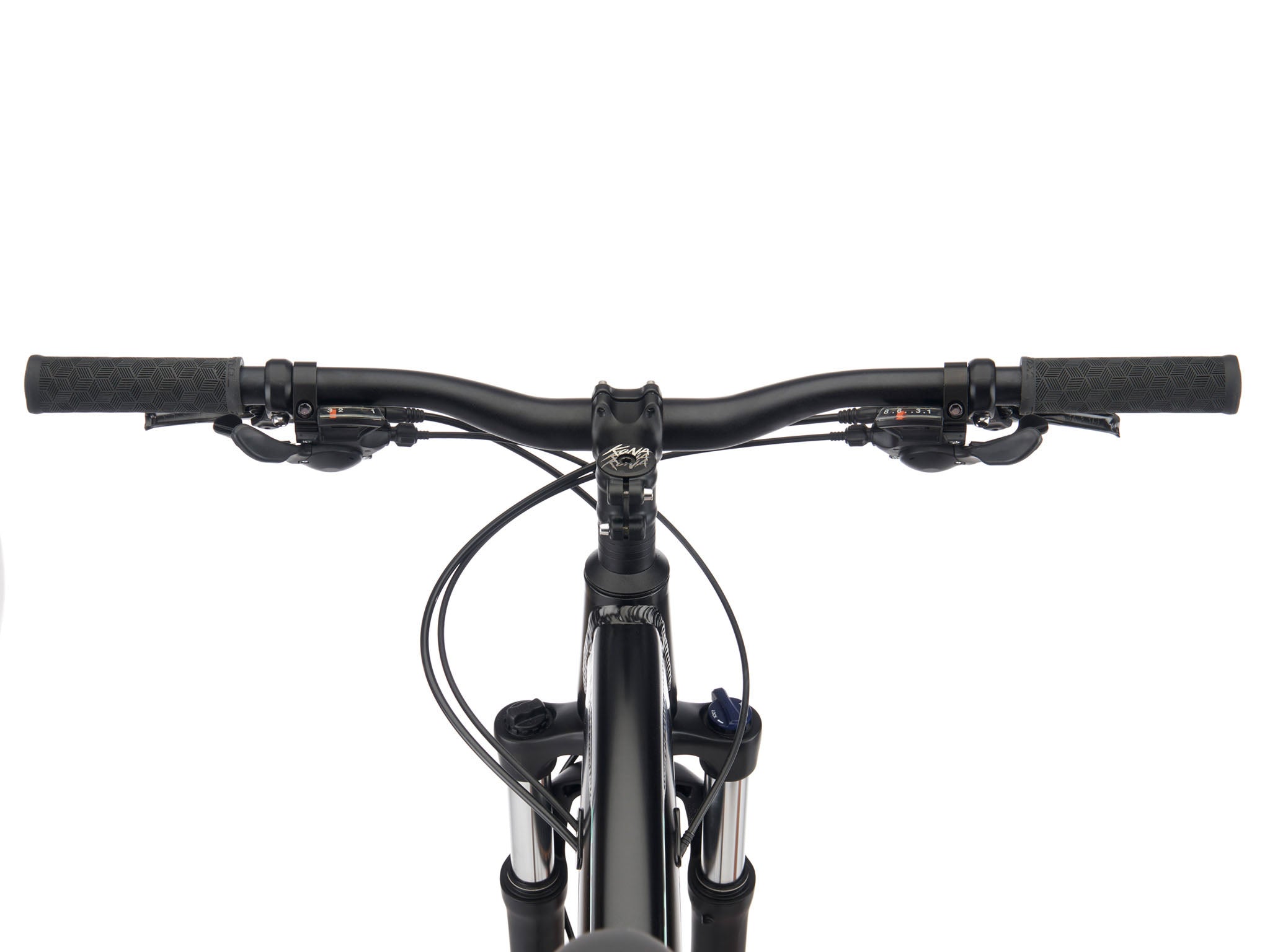

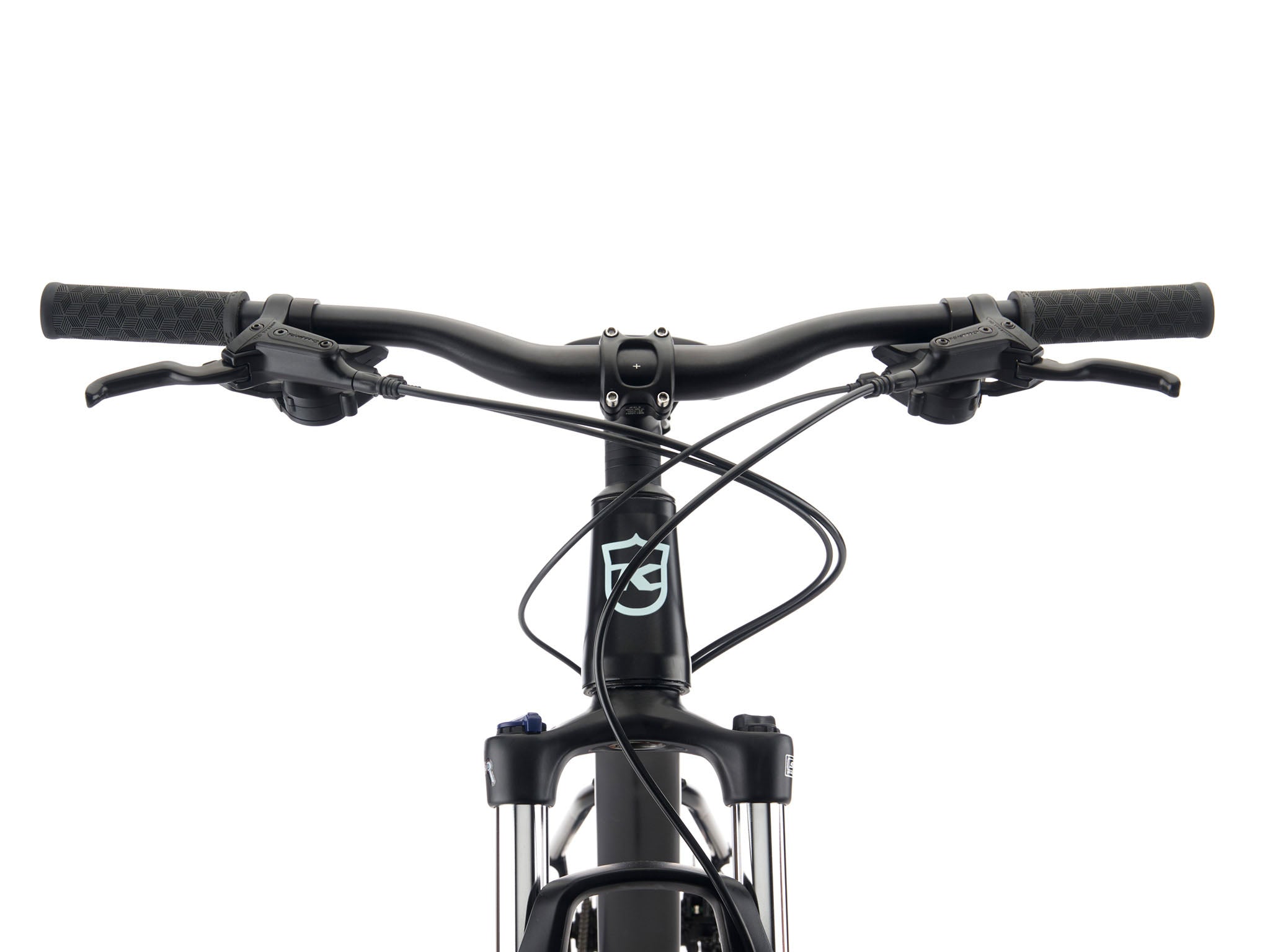

| Handlebar | Kona Aluminum Riser |
| Stem | Kona Control |
| Seatpost | Kona Thumb w/Offset 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip Slip on |
| Saddle | Kona Crosstrail |
| Front Hub | Formula 100x9mm |
| Rear Hub | Formula 135x10mm |
| Spokes | Stainless Black 14g |
| Rims | Double Wall alloy |
| Front Tire | WTB Riddler 700x45c |
| Rear Tire | WTB Riddler 700x45c |

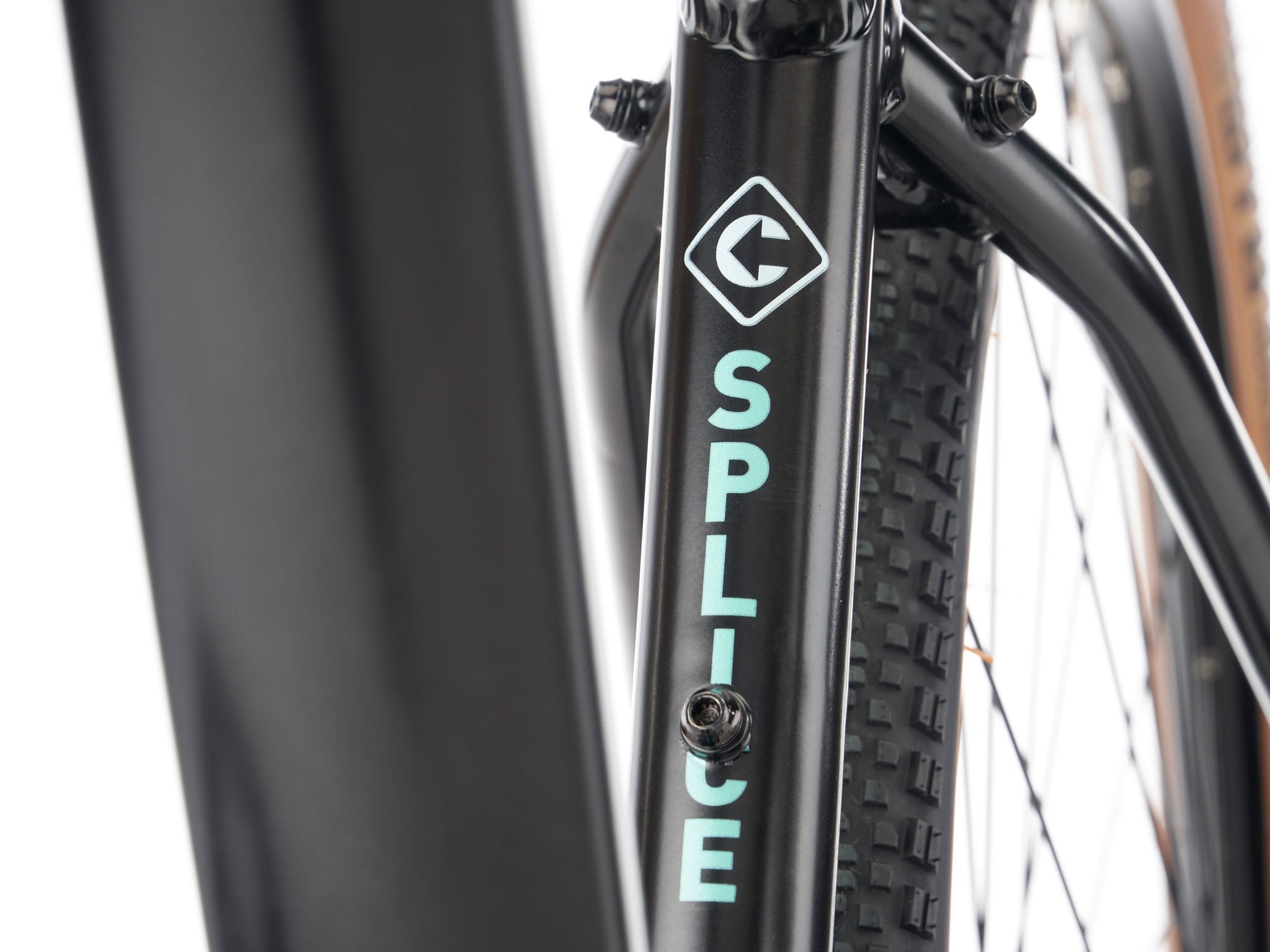

| Paint Color | Satin Black w/ Metallic Mint & Metallic Silver Decals |
| Extras | n/a |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 381 | 432 | 483 | 533 |
| 2 | TT Length | 572 | 597 | 623 | 647 |
| 3 | Reach | 398 | 419 | 439 | 458 |
| 4 | Stack | 590 | 603 | 622 | 641 |
| 5 | Standover | 691 | 734 | 773 | 812 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 110 | 130 | 150 | 170 |
| 8 | ST Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| 9 | CS Length | 440 | 440 | 440 | 440 |
| 10 | BB Drop | 58 | 53 | 53 | 53 |
| 11 | BB Height | 297 | 302 | 302 | 302 |
| 12 | Wheelbase | 1072 | 1100 | 1127 | 1153 |
| 13 | Front Center | 638 | 666 | 692 | 718 |
| 14 | Fork Length | 467 | 467 | 467 | 467 |
| 15 | Fork Offset | 42 | 42 | 42 | 42 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
