Sale price$999.00 USD
Price includes all US federal tariff charges
Size: 50

Not finding what you want here?
Contact your local Kona Dealer.

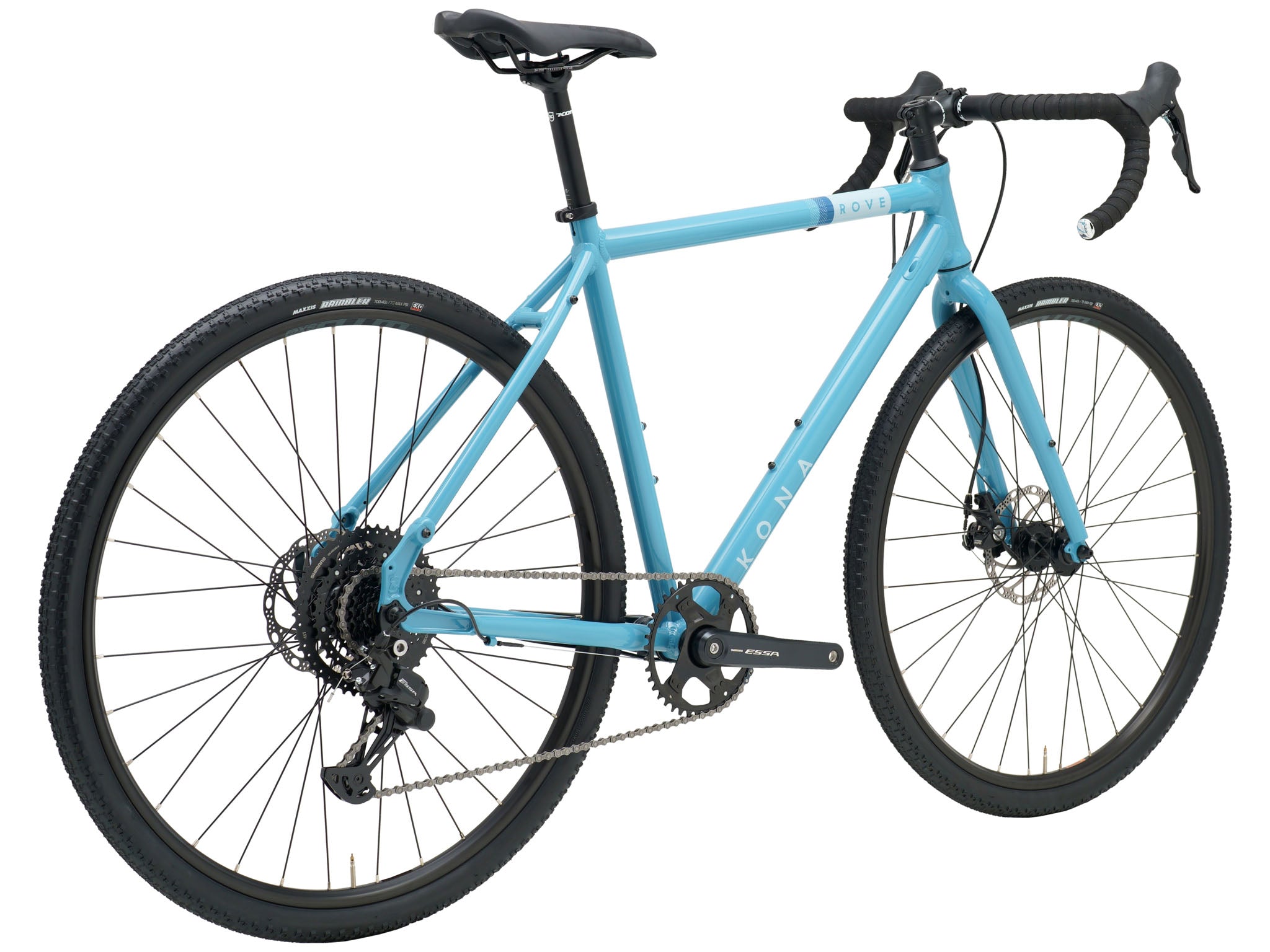

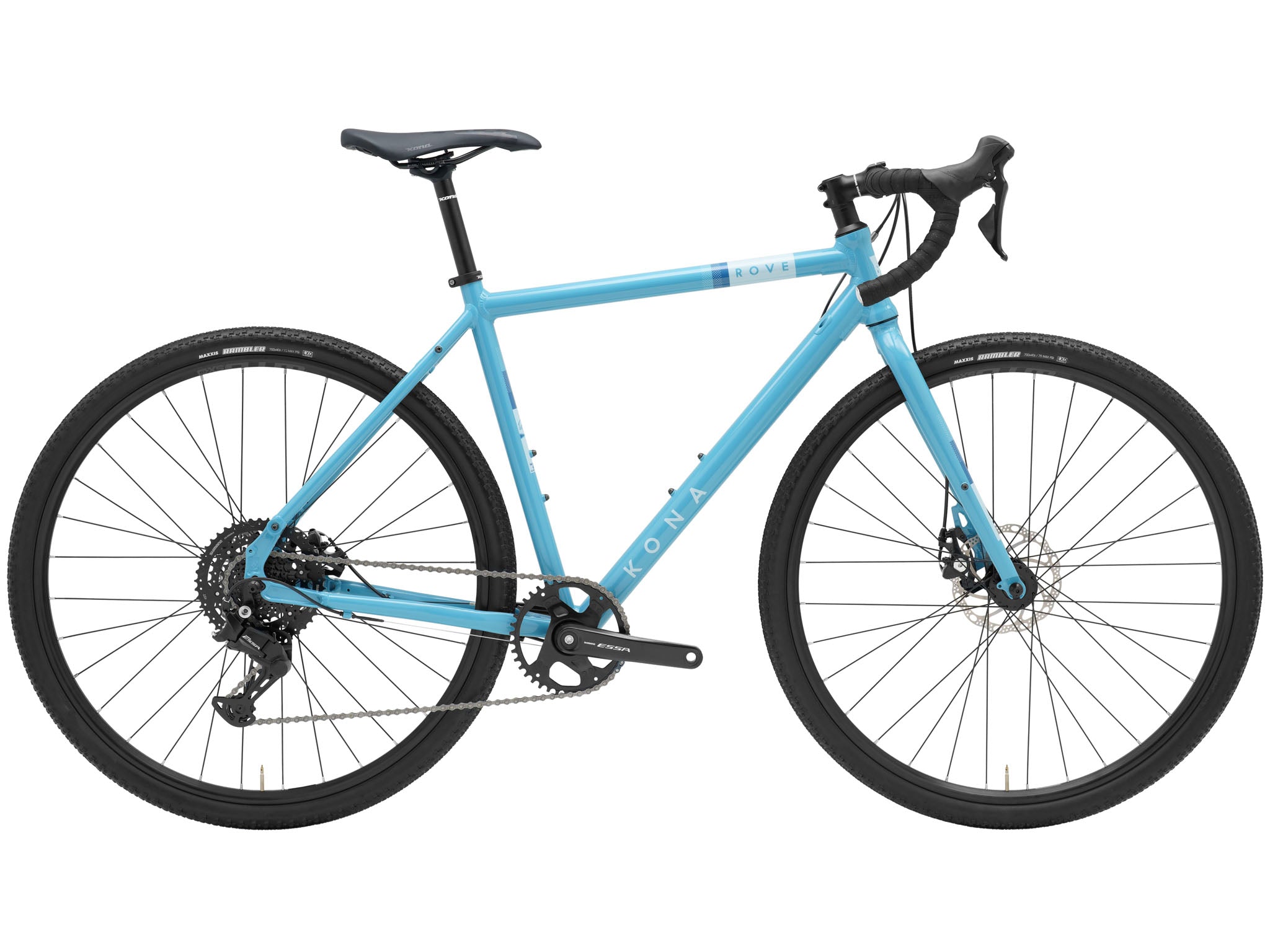

Rove AL is an affordable drop bar bike that doesn’t cut corners. With updated geometry that mirrors our high-end gravel line, the Rove AL is versatile, comfortable, and ready for errands, school, or dirt road adventures. Same trusted frame, smarter fit, same entry level price range.

SPECS & GEOMETRY

SPECIFICATIONS

FRAME Kona 6061 Aluminum Butted
SIZES 48, 50, 52, 54, 56, 58
REAR SHOCK n/a
FORK Kona 6061 Aluminum Disc

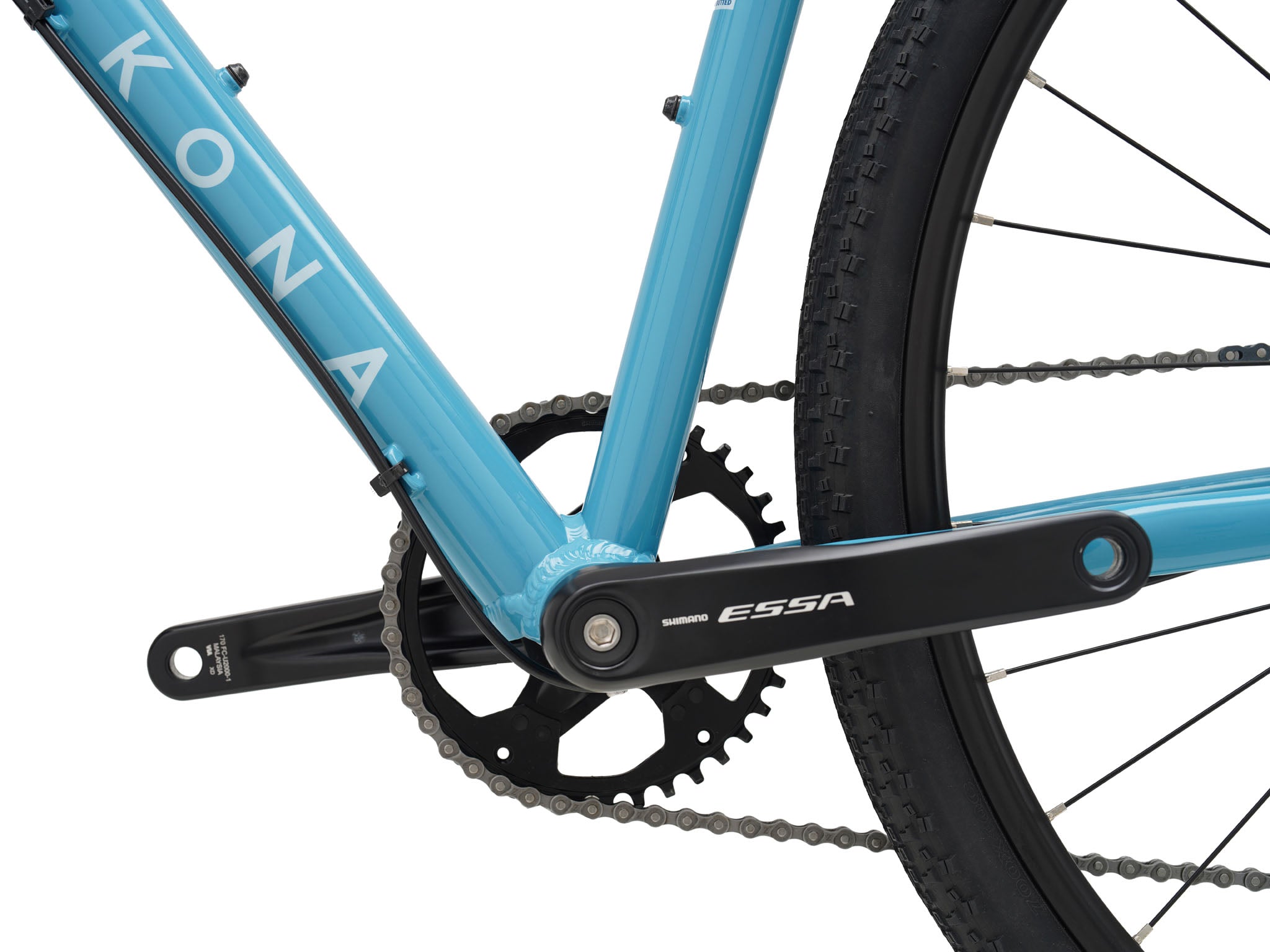

CRANKSET Shimano ESSA 2000 40t / 48-56 170mm / 58 175mm
BOTTOM BRACKET Shimano BSA 68
PEDALS n/a
CHAIN KMC Z8.3
CASSETTE Shimano ESSA HG300 11-45t 8spd
CHAINGUIDE n/a
FRONT DERAILLEUR n/a
REAR DERAILLEUR Shimano ESSA RDU2000
SHIFTERS Shimano ESSA U2000
BRAKE CALIPERS Tektro Mira CX
FRONT BRAKE ROTOR Tektro 160mm 6B 1.8mm
REAR BRAKE ROTOR Tektro 160mm 6B 1.8mm
BRAKE LEVERS Shimano ESSA U2000
HEADSET Feimin ZS44/ZS44
HANDLEBAR Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm
STEM Kona 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm
SEATPOST Kona w/Offset 27.2mm / 48-52 350mm / 54-58 375mm
SEAT CLAMP Kona Clamp 31.8mm
GRIPS Kona Cork Tape
SADDLE Kona Gravel
FRONT HUB Joytech 9x100mm
REAR HUB Joytech 10x135mm
SPOKES Stainless 2mm Black
RIMS WTB SX19
FRONT TIRE Maxxis Rambler 700x40mm
REAR TIRE Maxxis Rambler 700x40mm
PAINT COLOR Gloss Blue Smoke w/ Celestial Blue & Pastel Decals
All specifications are subject to change without notice.

GEOMETRY

  Size 48 50 52 54 56 58
1 ST Length 480 500 520 540 560 580
2 TT Length 522 537 552 568 584 601
3 Reach 380 385 390 395 400 405
4 Stack 528 547 566 584 601 620
5 Standover 745 765 786 805 825 843
6 HT Angle 69.5 69.5 70 70 70 70
7 HT Length 90 110 130 150 170 190
8 ST Angle 75 74.5 74 73.5 73 72.5
9 CS Length 435 435 435 435 435 435
10 BB Drop 74 74 72 72 70 70
11 BB Height 281 281 283 283 285 285
12 Wheelbase 1032 1044 1052 1064 1076 1091
13 Front Center 608 620 627 639 650 662
14 Fork Length 410 410 410 410 410 410
15 Fork Offset 50 50 50 50 50 50
Bike Geometry

Sizing & Selection

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.

GRAVEL / DROP BAR / URBAN

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Rove Libre Sutra/Ouroboros Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
