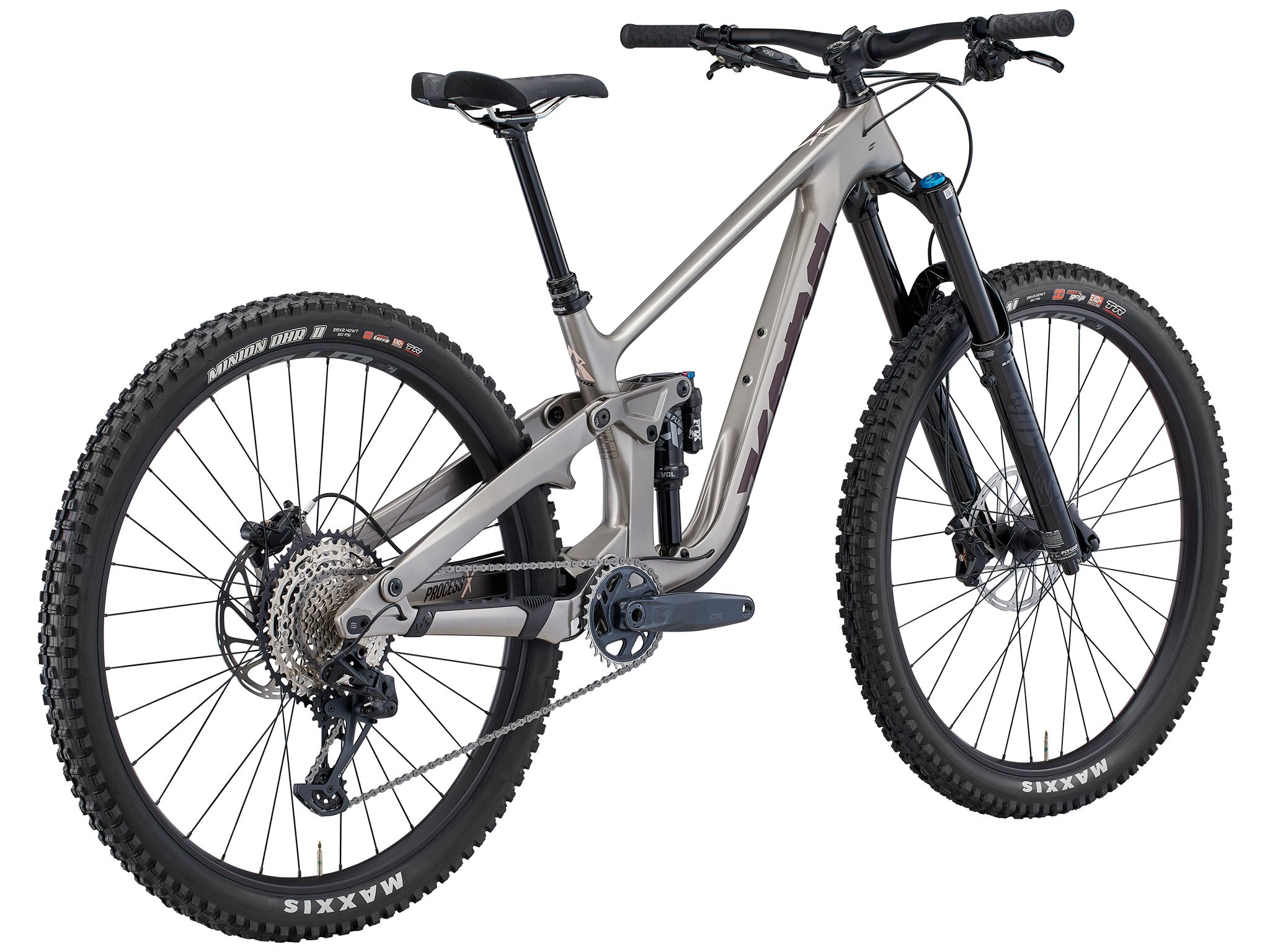

Process X CR

Name: Process X CR
Brand: Kona Bicycles
SKU: B36PRXC01

For the rider looking to go big on terrain but not break the bank, the Process X CR is a perfect choice. A carbon frame is laced with a durable, but practical build to ensure your money goes where it matters. The 170mm of ultra-squishy travel makes quick work of those features you’ve been eyeing up. And don’t be fooled by the numbers, this bike may go big on the descents, but it is built to ensure you make it to the top with plenty of gas left in the tank.

“I’ve had an absolute blast on this rig. For me, the Process X epitomizes what I enjoy in a bike. It can pedal when the going gets tough, it can play with the best of them, and boy, it can hold its own in a drag race.” -Spoke Magazine

SKU: B36PRXC01 — SM

SKU: B36PRXC03 — MD

SKU: B36PRXC05 — LG

SKU: B36PRXC06 — XL

SPECS & GEOMETRY

SPECIFICATIONS

Frame Material	Kona Carbon 162mm Travel
Sizes	S, M, L, XL
Rear Shock	Fox DPX2 Performance Elite Trunnion
Fork	Fox 38 Performance Grip Damper 170mm
Crankarms	SRAM GX Eagle DUB
Chainrings	32t X-Sync Eagle
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM NX-Eagle
Cassette	SRAM GX-Eagle 10-52t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM GX-Eagle
Shifters	SRAM GX-Eagle
Brake Calipers	SRAM Code R
Front Brake Rotor	SRAM Centerline 200mm
Rear Brake Rotor	SRAM Centerline 200mm
Brake Levers	SRAM Code R
Headset	FSA Orbit 1.5 E ZS
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	DT Swiss 370 110x15mm
Rear Hub	DT Swiss 370 148x12mm
Spokes	Stainless Black 14g
Rims	WTB KOM Trail i30 TCS
Front Tire	Maxxis Assegai EXO+ TR 3C 29x2.5" WT
Rear Tire	Maxxis Minion DHR II EXO+ TR 3C 29x2.4" WT (27.5x2.4" WT size S)
Paint Color	Gloss Metallic Grey w/ Chocolate & Bronze Decals

All specifications are subject to change without notice.

GEOMETRY

	Size	S	M	L	XL
1	ST Length	380	380	420	450
2	TT Length	569	594	623	664
3	Reach	440	465	490	525
4	Stack	615	615	625	635
5	Standover	690	700	710	720
6	HT Angle	63.5	63.5	63.5	63.5
7	HT Length	94	94	105	116
8	ST Angle	78.2	78.2	78.0	77.9
9	CS Length	435 [450]	435 [450]	435 [450]	435 [450]
10	BB Drop	20	30	30	30
11	BB Height	345	345	345	345
12	Wheelbase	1213 [1228]	1238 [1253]	1268 [1283]	1308 [1323]
13	Front Center	779	804	834	874
14	Fork Length	581	581	581	581
15	Fork Offset	42	42	42	42
