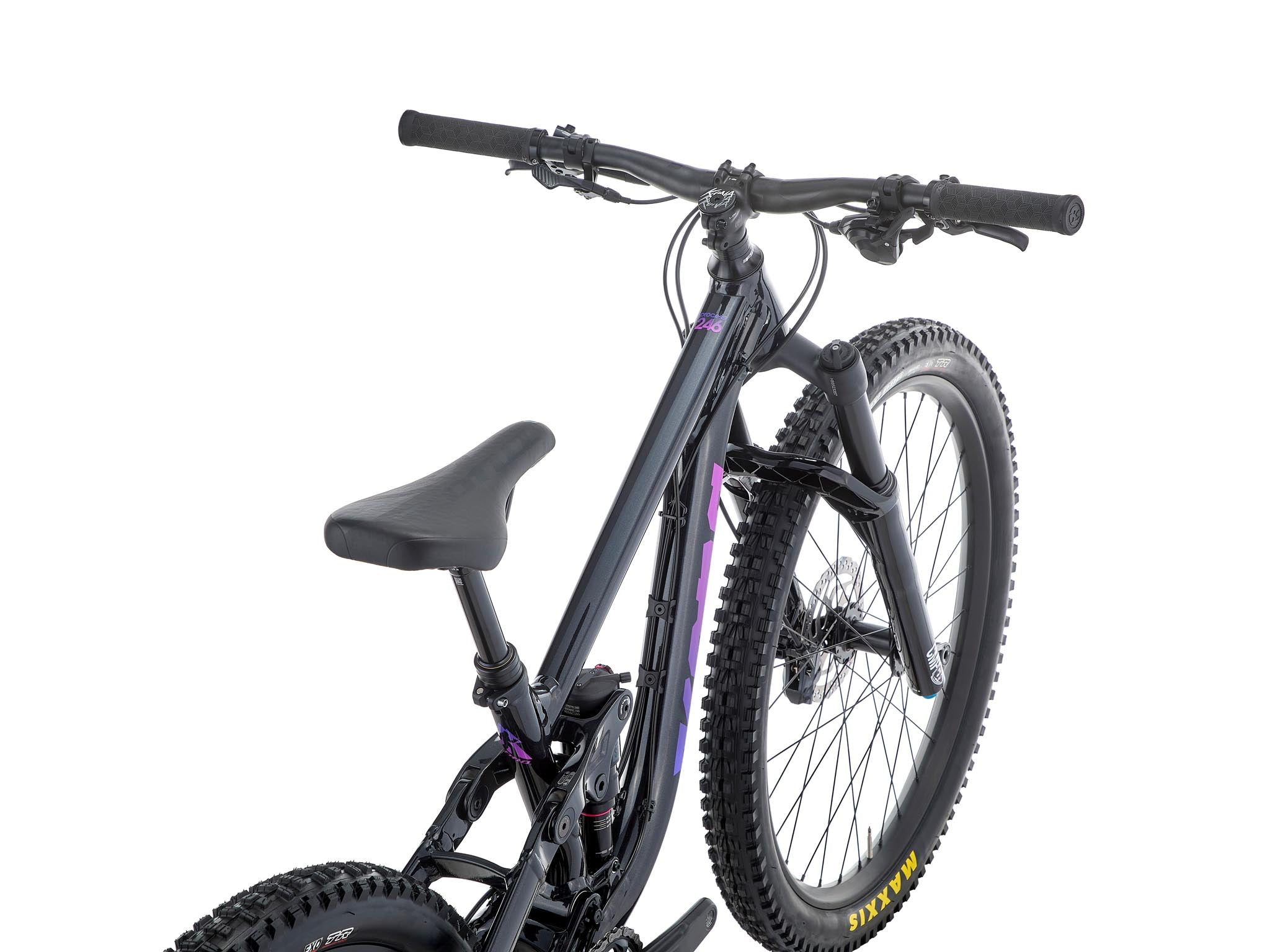

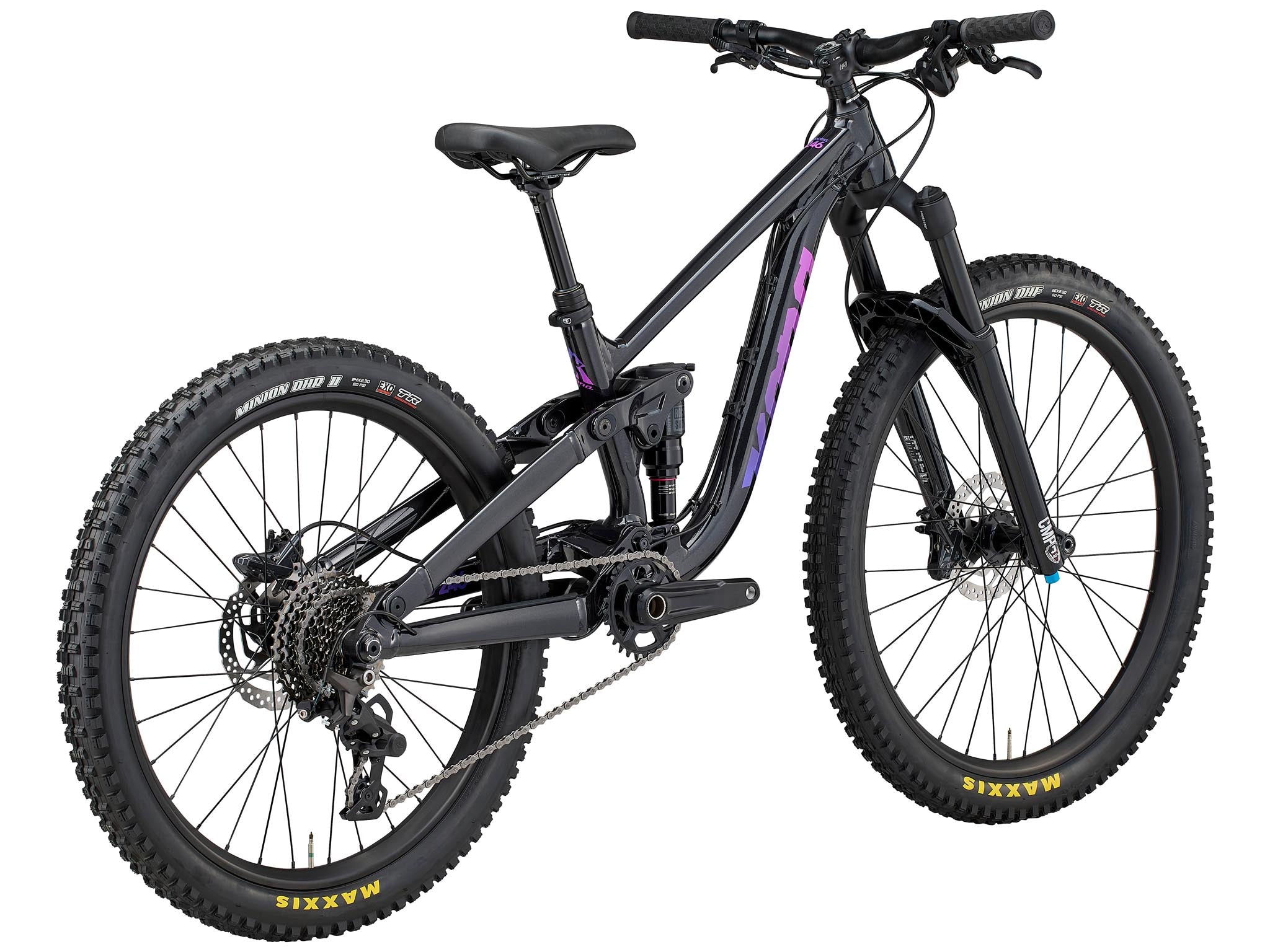

The Process 246 is the natural next step for young riders leveling up, carrying the same DNA that made our Process line award-winning. Built to optimize performance for smaller bodies without compromising capability, it’s everything we wanted in a young shredder’s bike.
The Process 246 is highly tunable—whether you’re adjusting for rider size, style, or terrain. Named for its ability to run matching 26” wheels or a mixed 26”/24”, it rolls confidently through all terrain.
We spec’d brakes with adjustable throw so smaller hands can reach levers comfortably and brake with precision. Add intuitive suspension, great standover, and an efficient pedaling platform, and you’ve got a bike built to take youngsters from playful laps to serious lines.
From backyard jump lines to their first real descent—they’ll clear it, send it, and ask to ride it again.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted 120mm Travel |
| Sizes | One size |

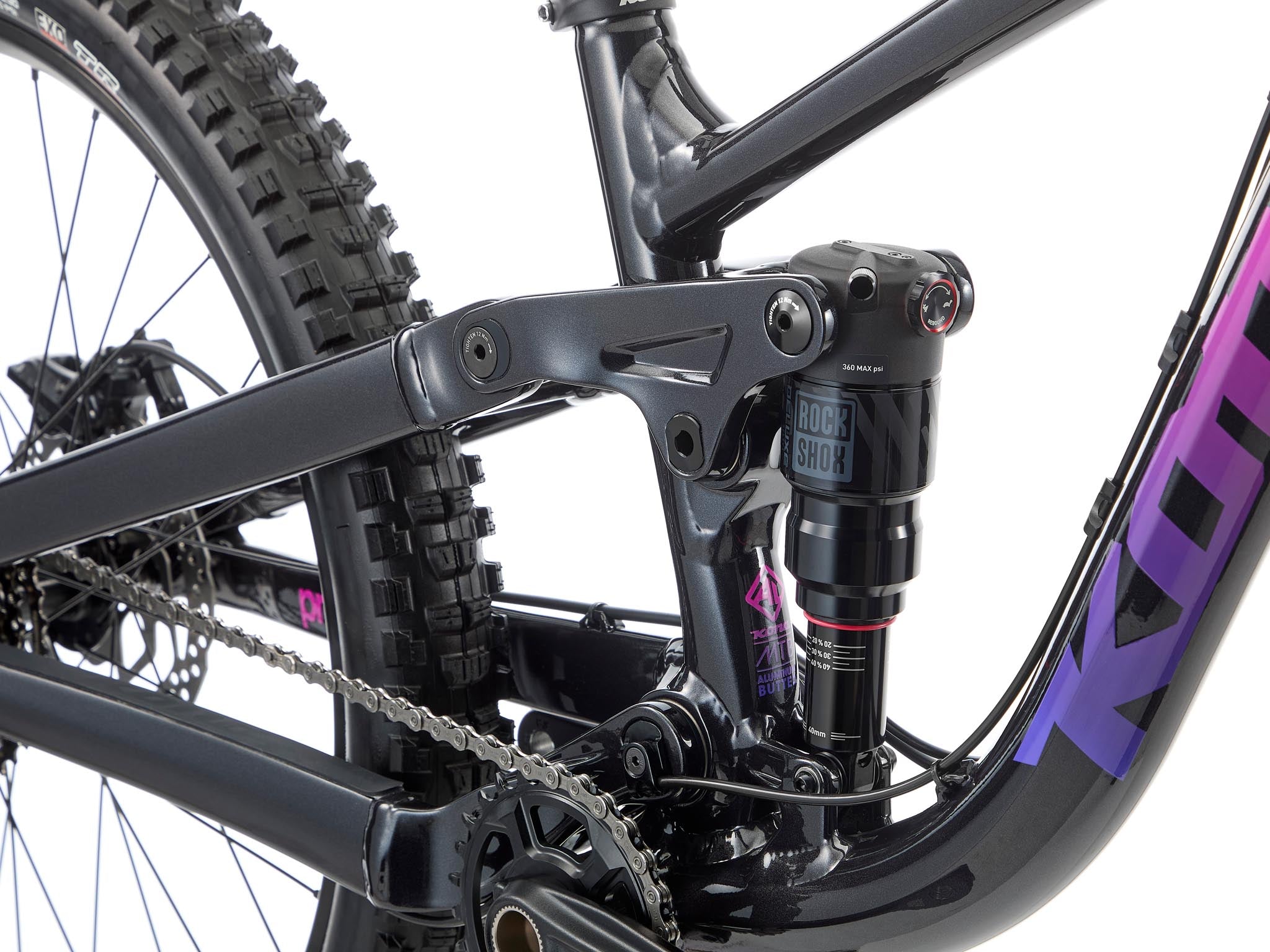

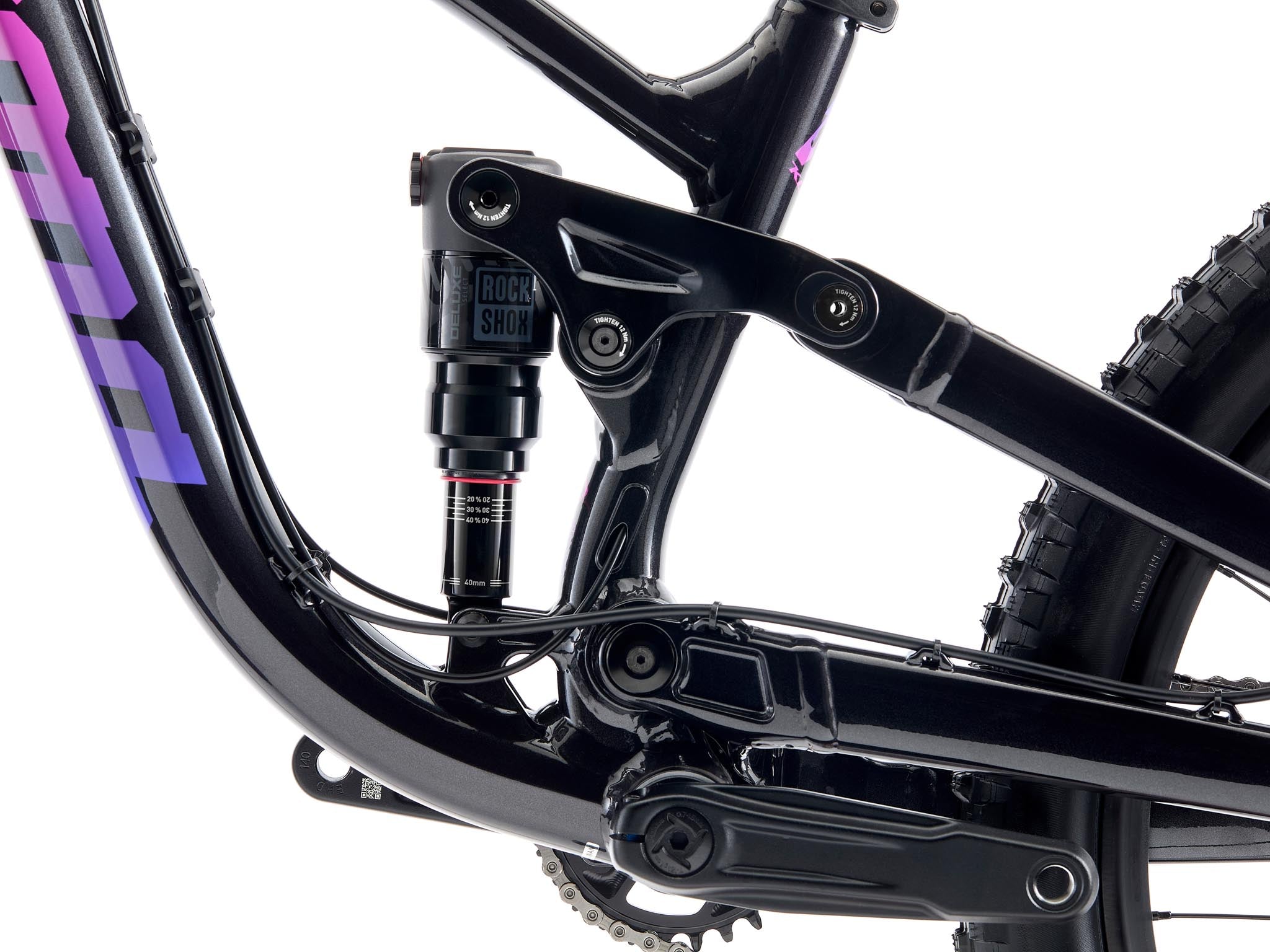

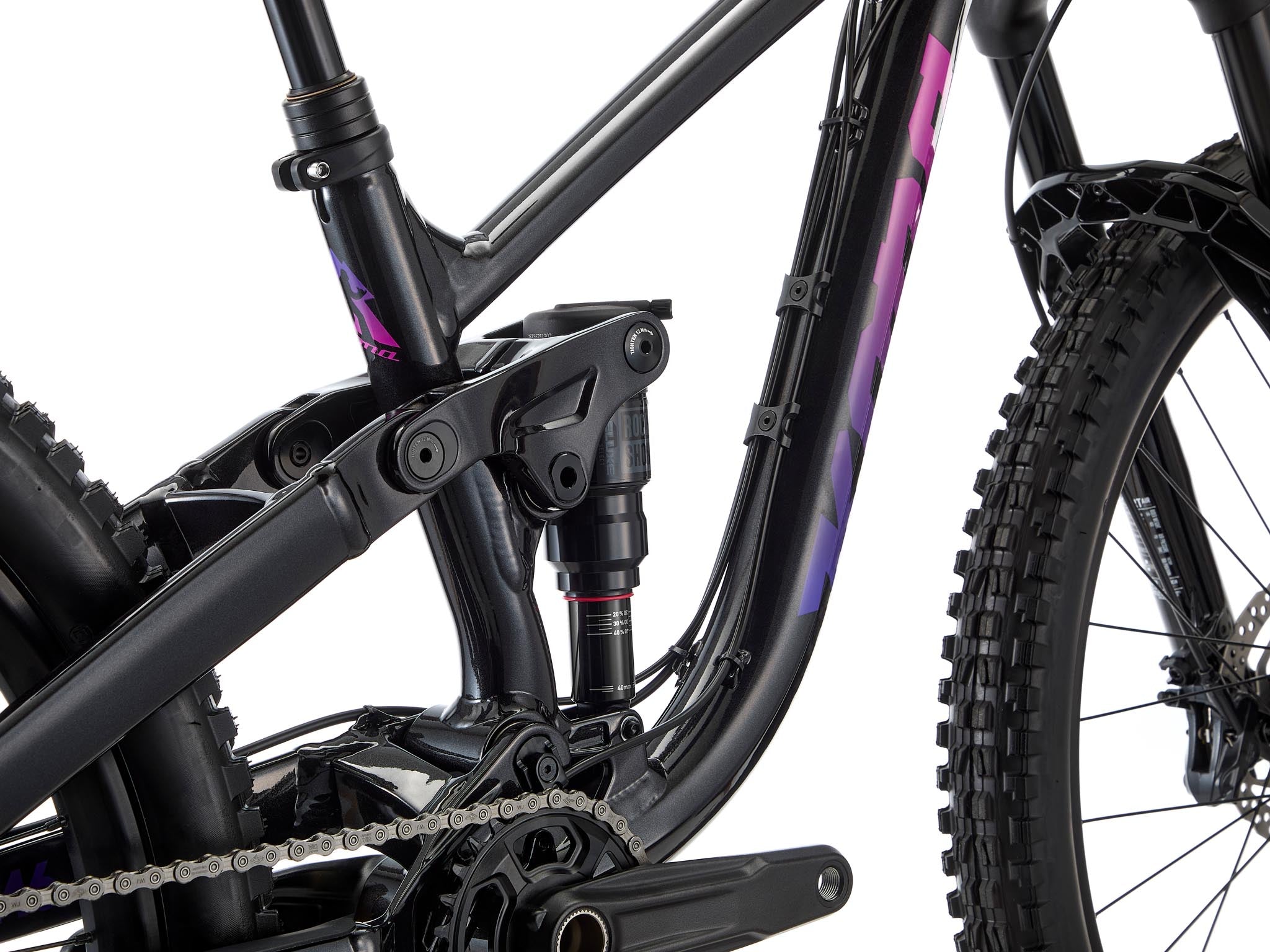

| Rear Shock | Rock Shox Deluxe Select |
| Fork | Manitou JUNIT 34mm Comp |
| Crankarms | ProWheel |
| Chainrings | ProWheel 28t |
| B/B | ProWheel PF92 |
| Pedals | Kona JS2 |
| Chain | Shimano 10sp |
| Cassette | Shimano CUES 10sp 11-39t |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano CUES 10sp |
| Shifters | Shimano CUES |
| Brake Calipers | Shimano Deore |
| Front Brake Rotor | Shimano 160mm 6-bolt |
| Rear Brake Rotor | Shimano 160mm 6-bolt |

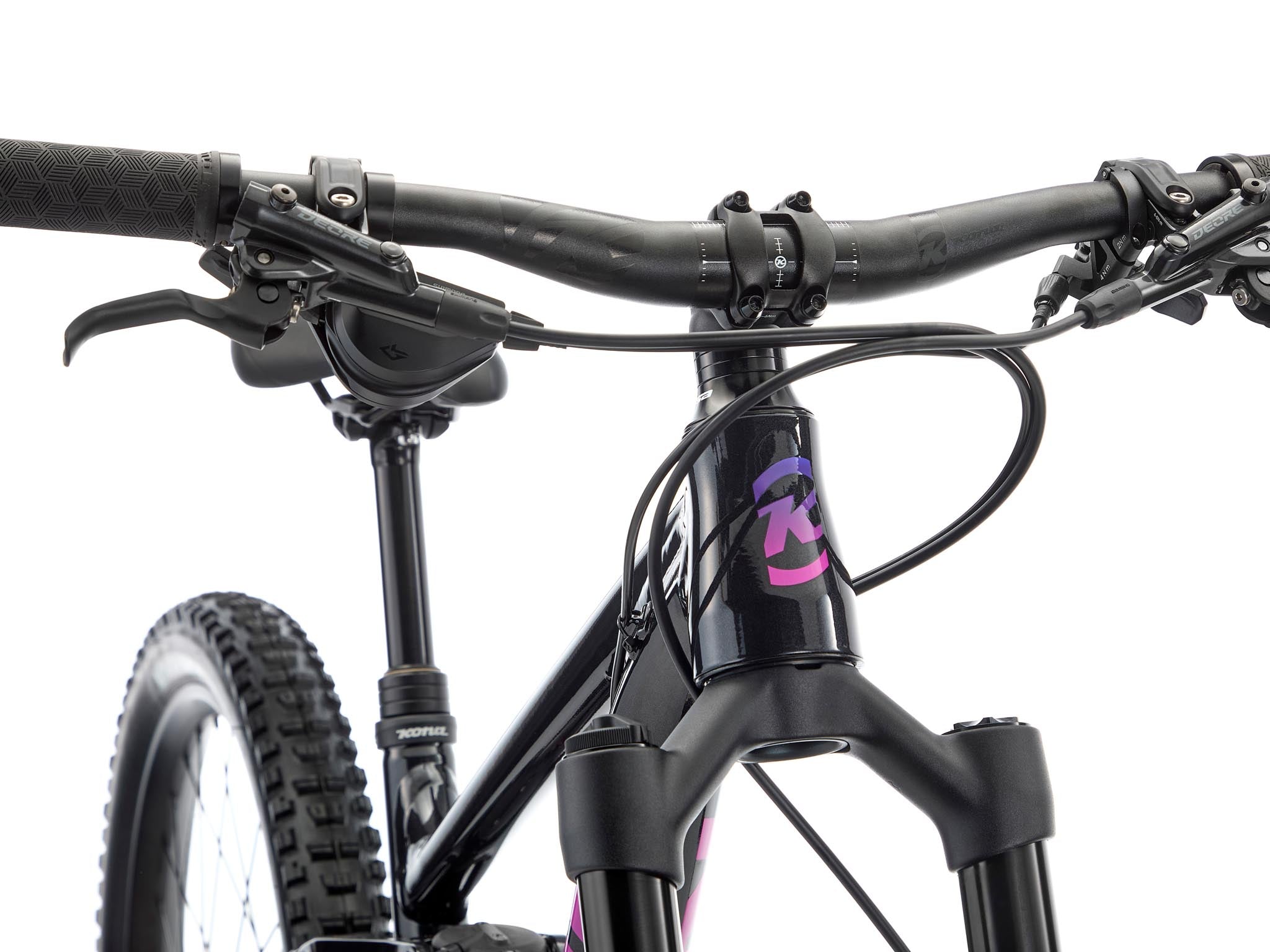

| Brake Levers | Shimano Deore |
| Headset | FSA Orbit No.57B ZS |
| Handlebar | Kona XC/BC 680mm |
| Stem | Kona XC/BC 35mm |
| Seatpost | TranzX Kids Dropper 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Velo JR Grip lock-on |
| Saddle | Kona Kids |
| Front Hub | Formula 110x15mm |
| Rear Hub | Formula 148x12mm |
| Spokes | Stainless Black 14g |
| Rims | Alex MD30 32h 26" (front) / 24" (rear) |
| Front Tire | Maxxis Minion DHF EXO+ TR 26x2.3" |
| Rear Tire | Maxxis Minion DHR II EXO+ TR 24x2.3" |
| Paint Color | Gloss Metallic Black w/ Orchid Fade decals |
GEOMETRY
| Size | SM | |
| 1 | ST Length | 330 |
| 2 | TT Length | 509 |
| 3 | Reach | 370 |
| 4 | Stack | 537 |
| 5 | Standover | 628 |
| 6 | HT Angle | 65 |
| 7 | HT Length | 90 |
| 8 | ST Angle | 75.5 |
| 9 | CS Length | 422 |
| 10 | BB Drop | 5 |
| 11 | BB Height | 297 |
| 12 | Wheelbase | 1081 |
| 13 | Front Center | 659 |
| 14 | Fork Length | 500 |
| 15 | Fork Offset | 41 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
