Process 134 CR
Sale price$5,999.00 USD
Regular price$0.00 USD (/)

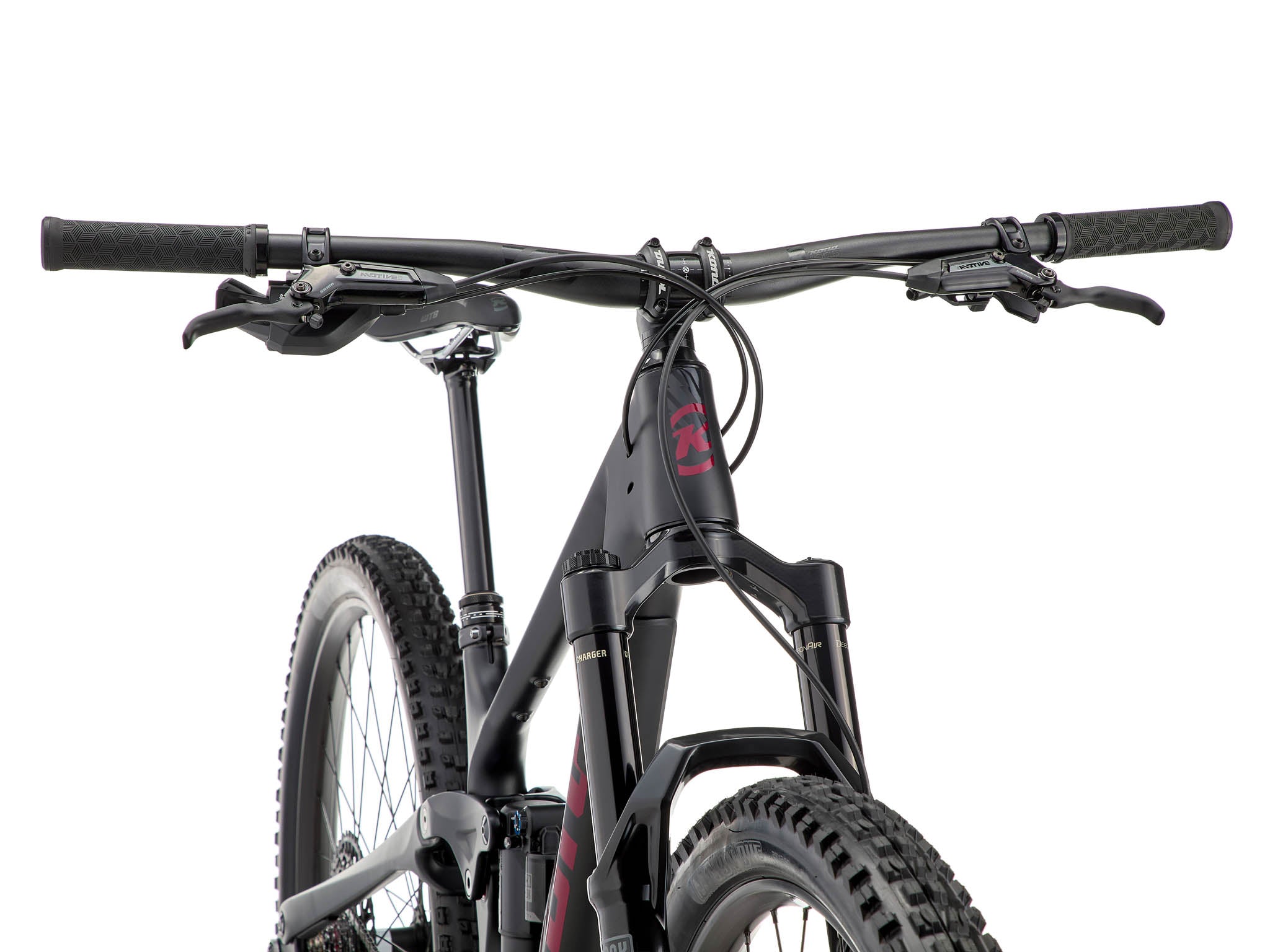

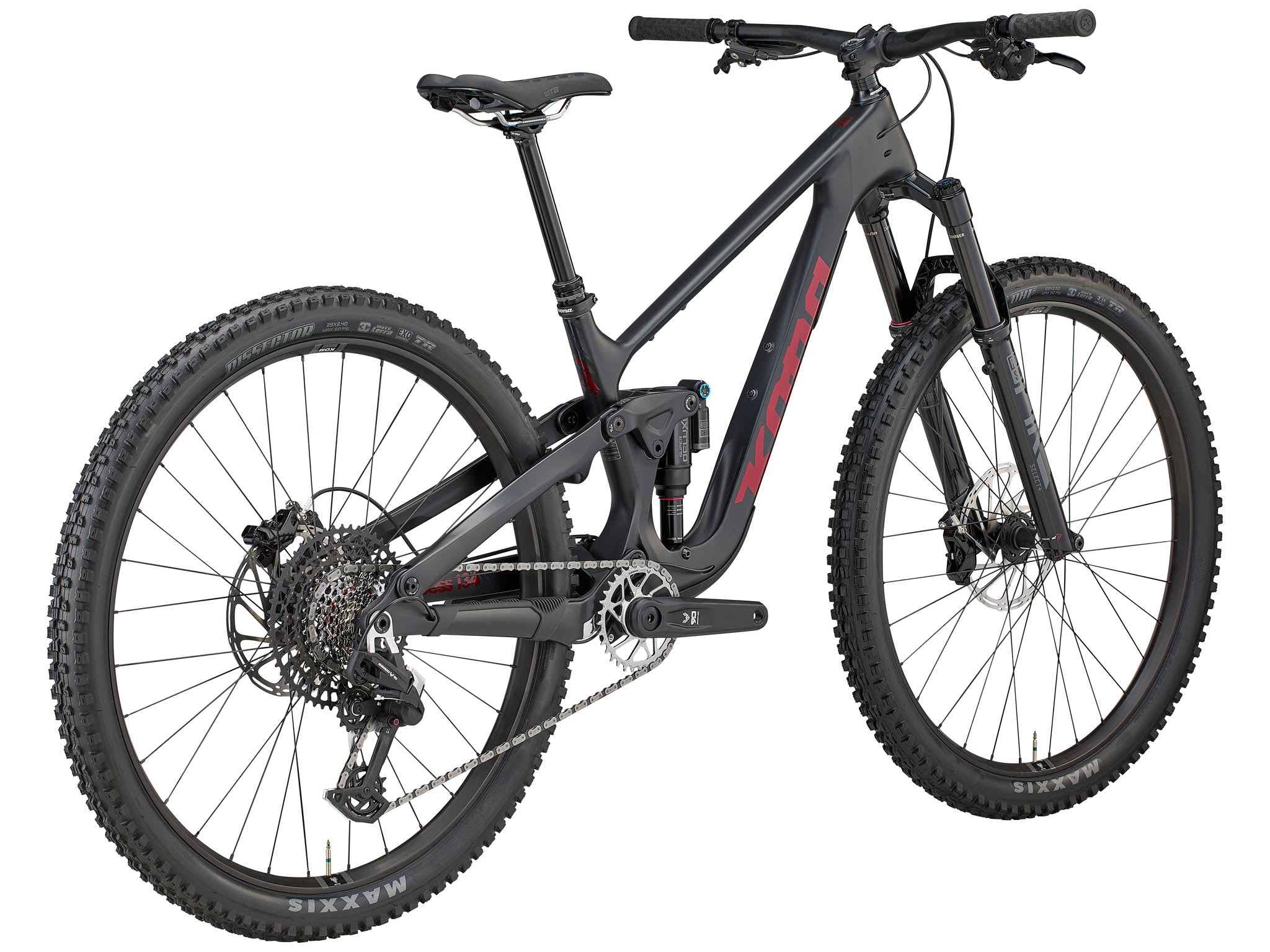

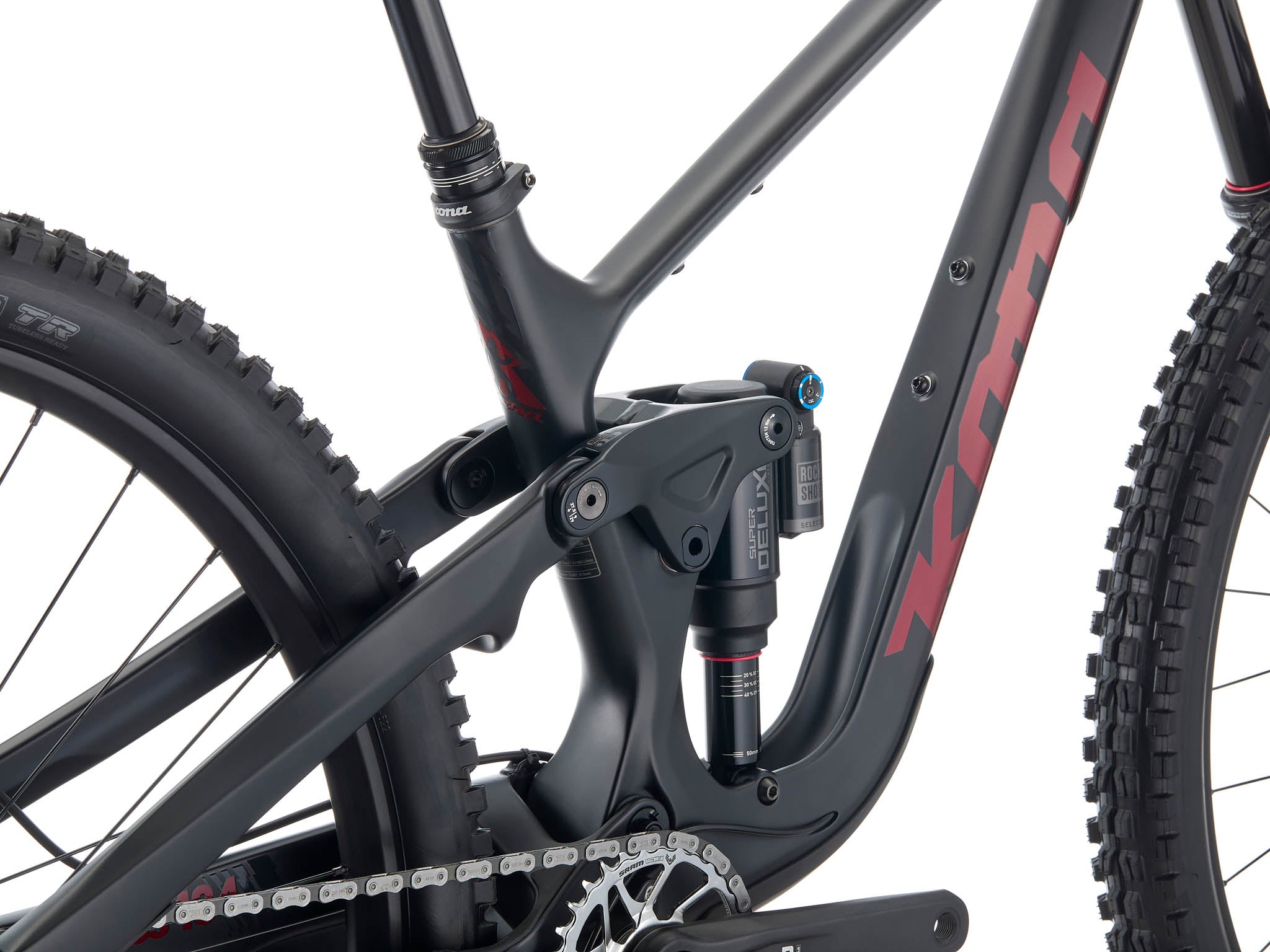

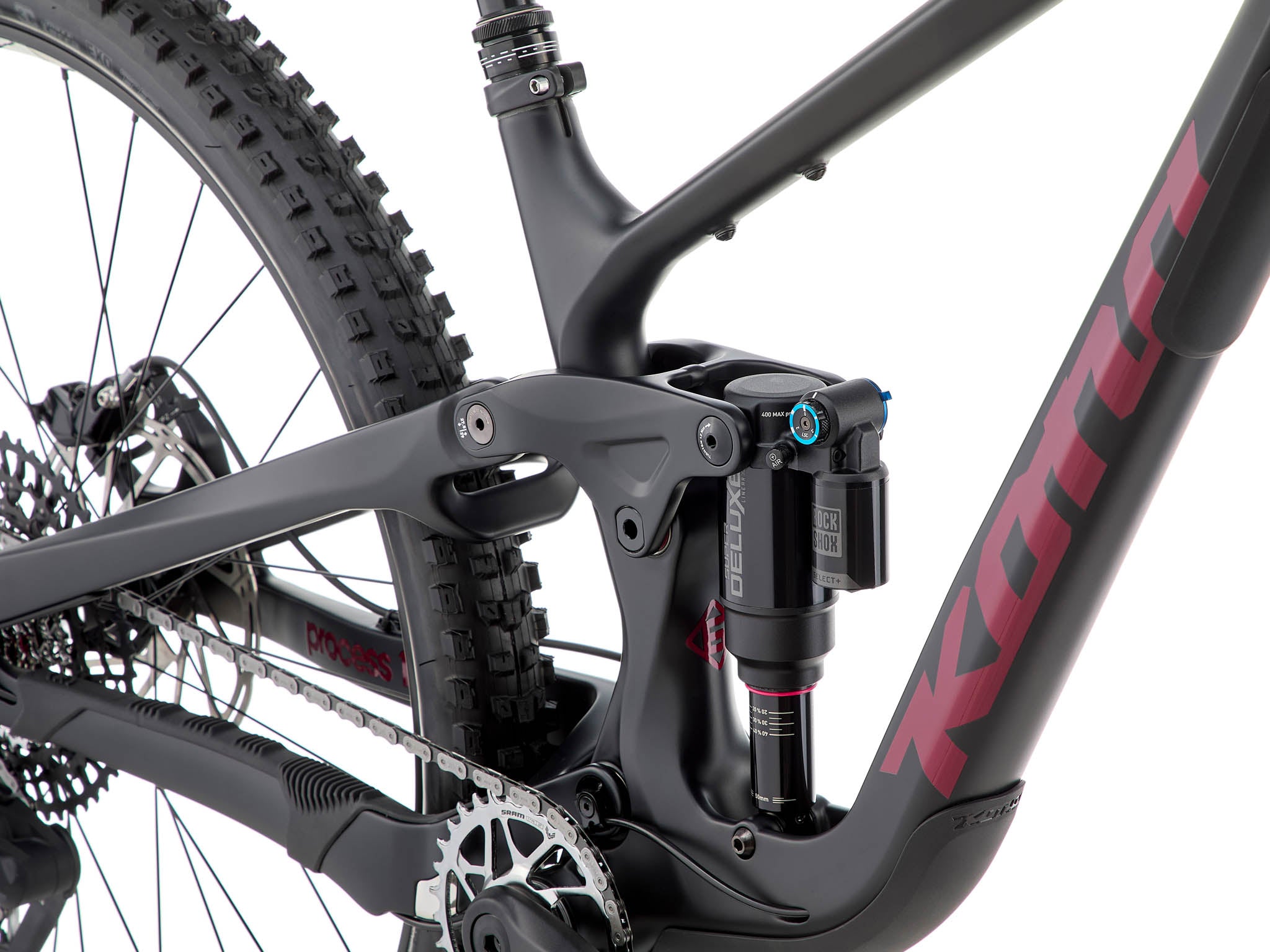

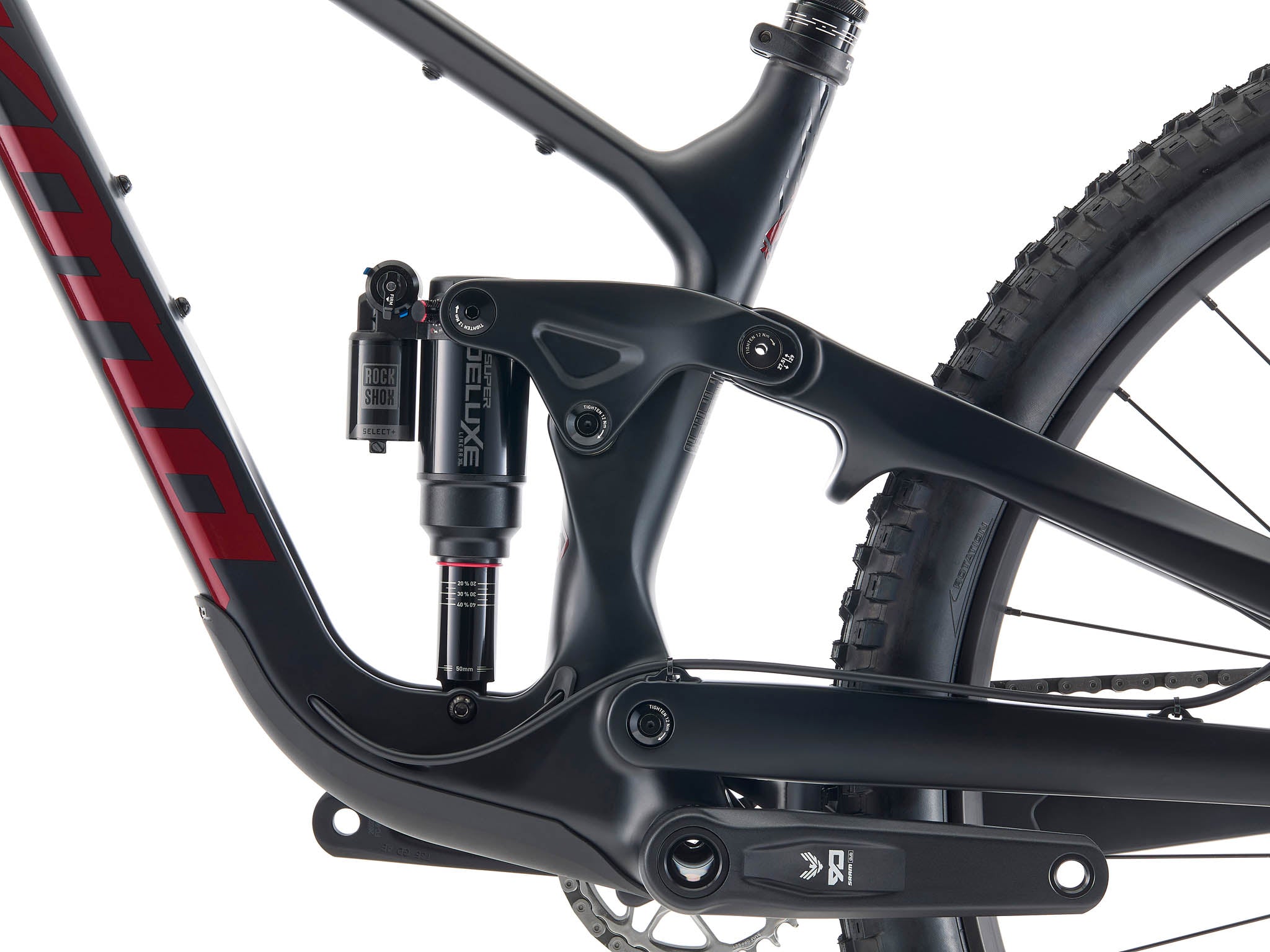

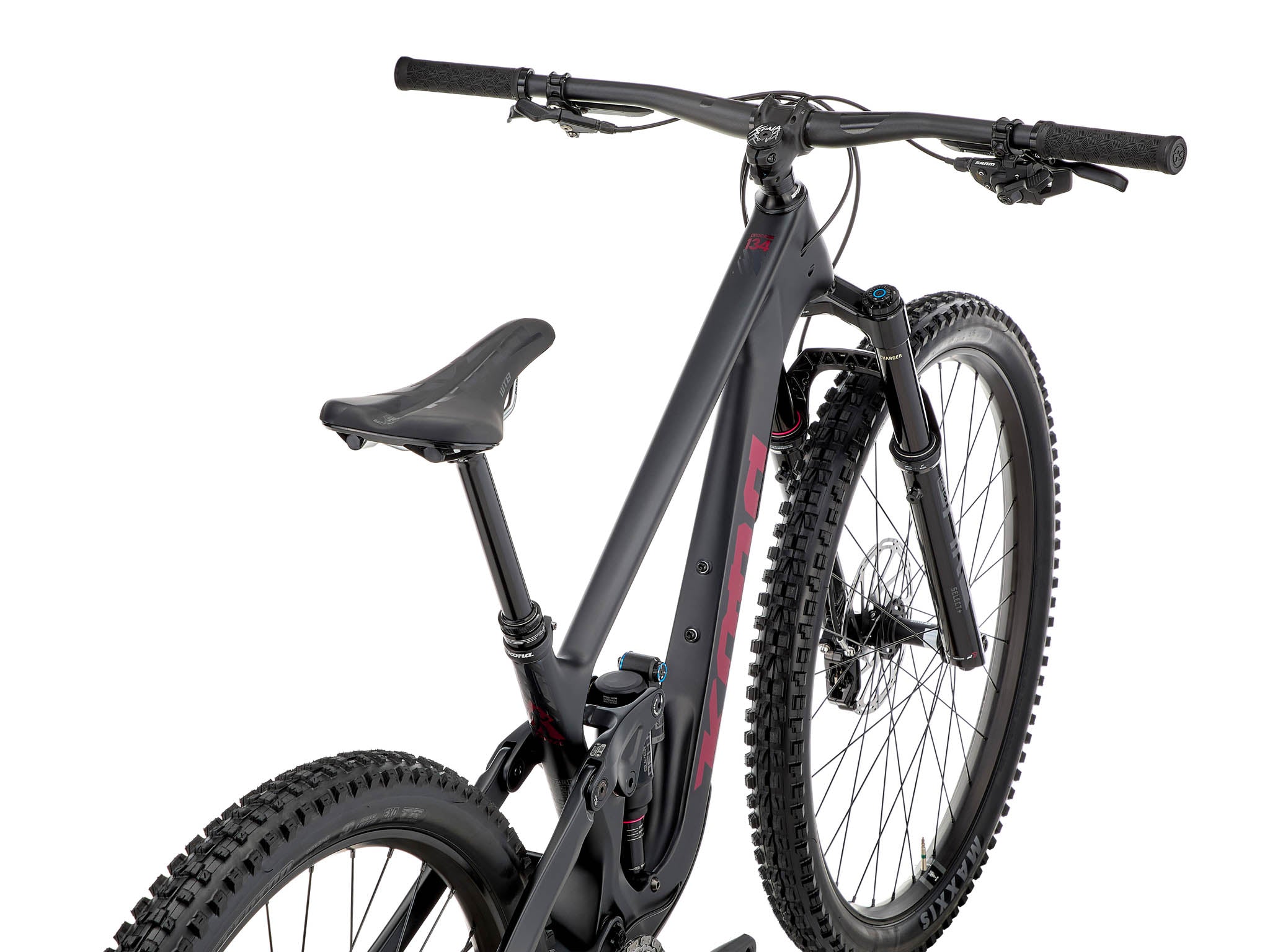

The Process 134 CR is a carbon trail mountain bike with 140mm of front travel and 134mm in the rear, built for riders who refuse to let suspension numbers dictate the day. Its carbon frame and dialled geometry keep it quick under power and sharp through corners, with enough stability and support to charge technical descents, jump lines, and everything between them. Fox suspension handles the rough stuff, while a dependable drivetrain and DT Swiss 350 hubs keep the ride crisp, reliable, and ready to disappear deep into the trail network. Pedal it farther. Push it harder. Race it, jump it, or spend the whole day looking for its limits. Call it a hard charging chameleon. It blends into nothing.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona Carbon 134mm Travel |
| SIZES | S, M, L, XL |
| REAR SHOCK | Rockshox Super Deluxe Select+ 185x50mm |
| FORK | RockShox Pike Select+ 140mm 29" |
| CRANKSET | SRAM Eagle 90 DUB 32t / Length S 165mm / M-XL 170mm |
| BOTTOM BRACKET | SRAM DUB PF92 MTB WIDE |
| PEDALS | n/a |
| CHAIN | SRAM Eagle 70 T-Type |
| CASSETTE | SRAM XS 1275 10-52t 12spd XD |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Eagle 90 Transmission |
| SHIFTERS | SRAM Eagle 90 Transmission |
| BRAKE CALIPERS | SRAM Motive Silver 4-Piston |
| FRONT BRAKE ROTOR | SRAM Centerline 200mm 6B |
| REAR BRAKE ROTOR | SRAM Centerline 200mm 6B |
| BRAKE LEVERS | SRAM Motive Silver |
| HEADSET | FSA Orbit No.57 ZS44/ZS56 |
| HANDLEBAR | Kona 35mm / Back 8º / Rise 18mm / Width S 780mm / M-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / Length S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt SL Fusion |
| FRONT HUB | DT Swiss 350 15x110mm |
| REAR HUB | DT Swiss 350 12x148mm XD |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB KOM Team i30 TCS 2.0 |
| FRONT TIRE | Maxxis Minion DHF 29x2.5" EXO / TR / 3C MaxxTerra |
| REAR TIRE | Maxxis Dissector 29x2.4" WT EXO / TR / 3C Maxx Terra (27.5x2.4" size S) |
| PAINT COLOR | Matte Carbon w/ Gloss Carmine & Spot Gloss Decals |
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 380 | 380 | 420 | 450 |
| 2 | TT Length | 570 | 599 | 628 | 666 |
| 3 | Reach | 430 | 455 | 480 | 515 |
| 4 | Stack | 605 | 615 | 625 | 635 |
| 5 | Standover | 700 | 700 | 710 | 720 |
| 6 | HT Angle | 65.5 | 65.5 | 65.5 | 65.5 |
| 7 | HT Length | 94 | 105 | 116 | 127 |
| 8 | ST Angle | 76.9 | 76.9 | 76.7 | 76.6 |
| 9 | CS Length | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 23 | 33 | 33 | 33 |
| 11 | BB Height | 342 | 342 | 342 | 342 |
| 12 | Wheelbase | 1171 | 1200 | 1230 | 1269 |
| 13 | Front Center | 738 | 767 | 797 | 836 |
| 14 | Fork Length | 551 | 551 | 551 | 551 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
