Process 134
Not finding what you want here?
Contact your local Kona Dealer.

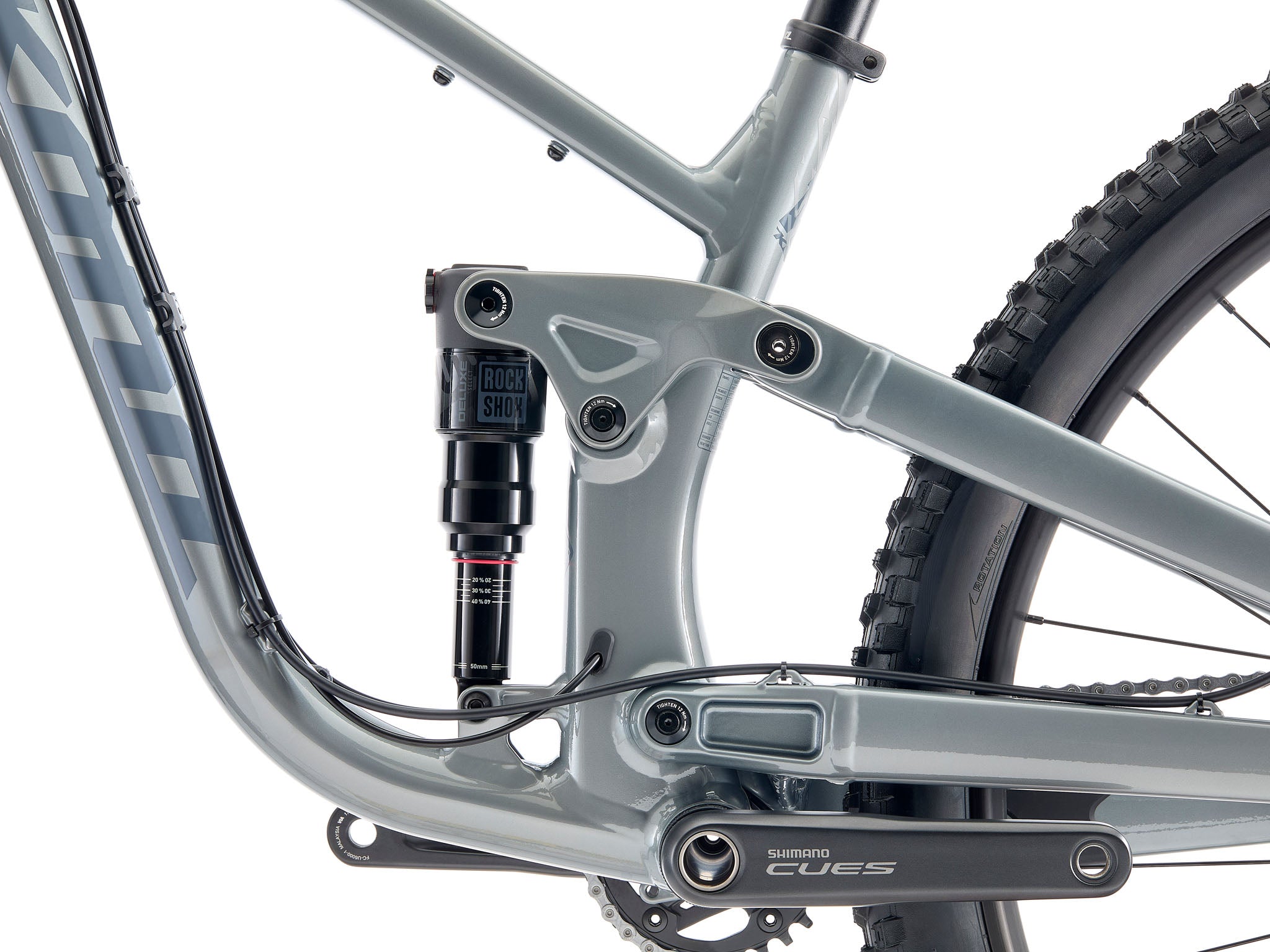

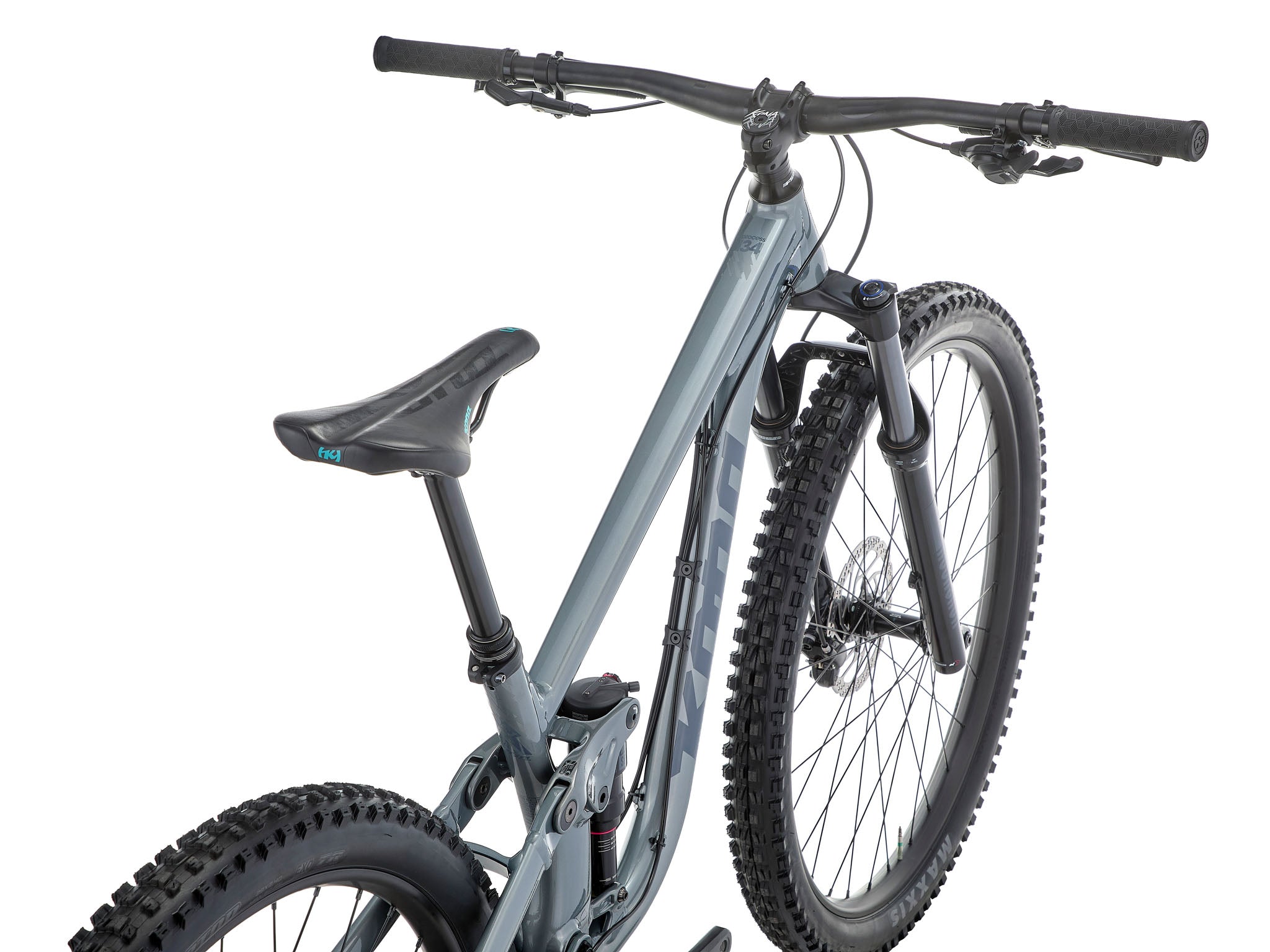

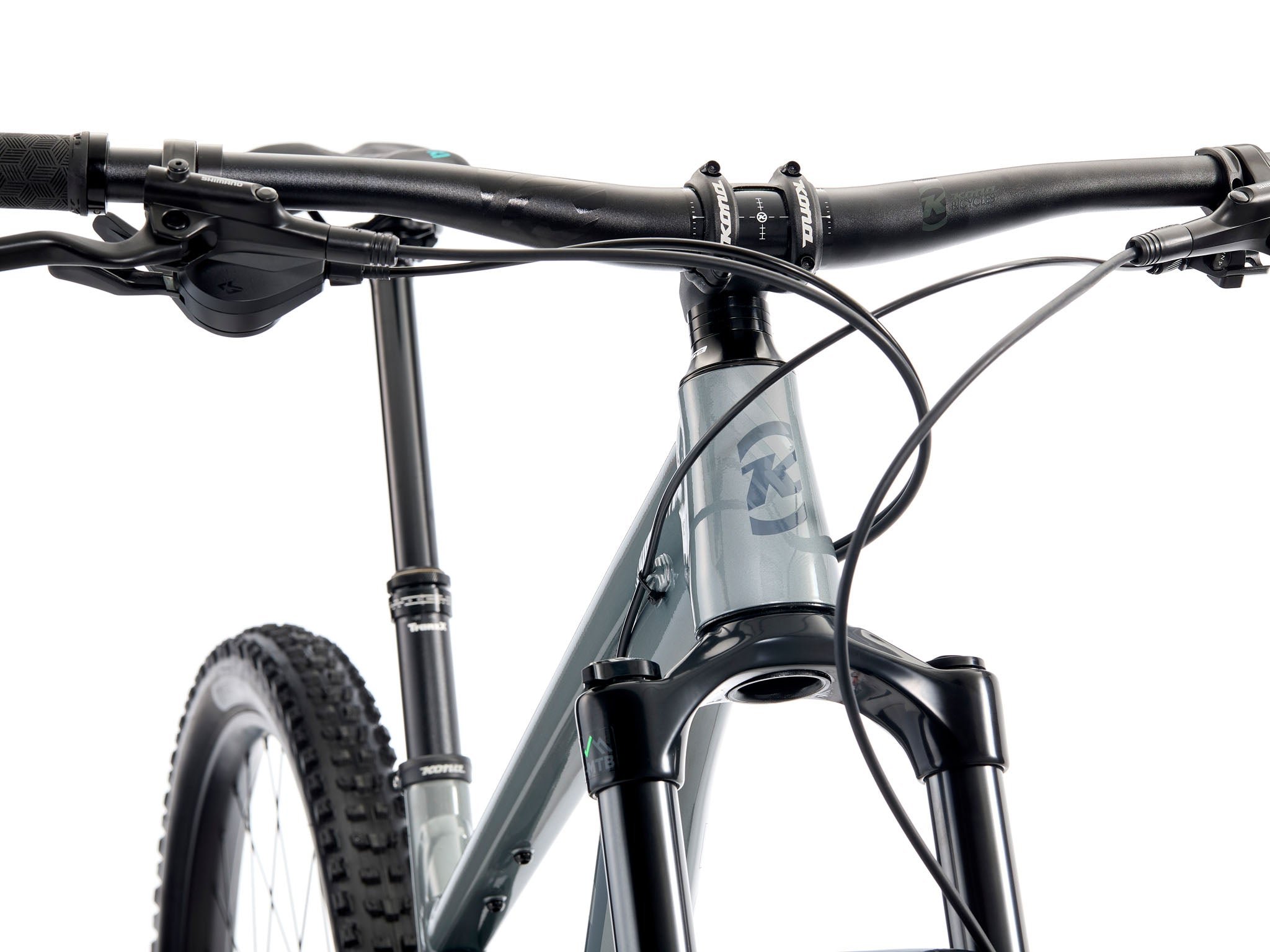

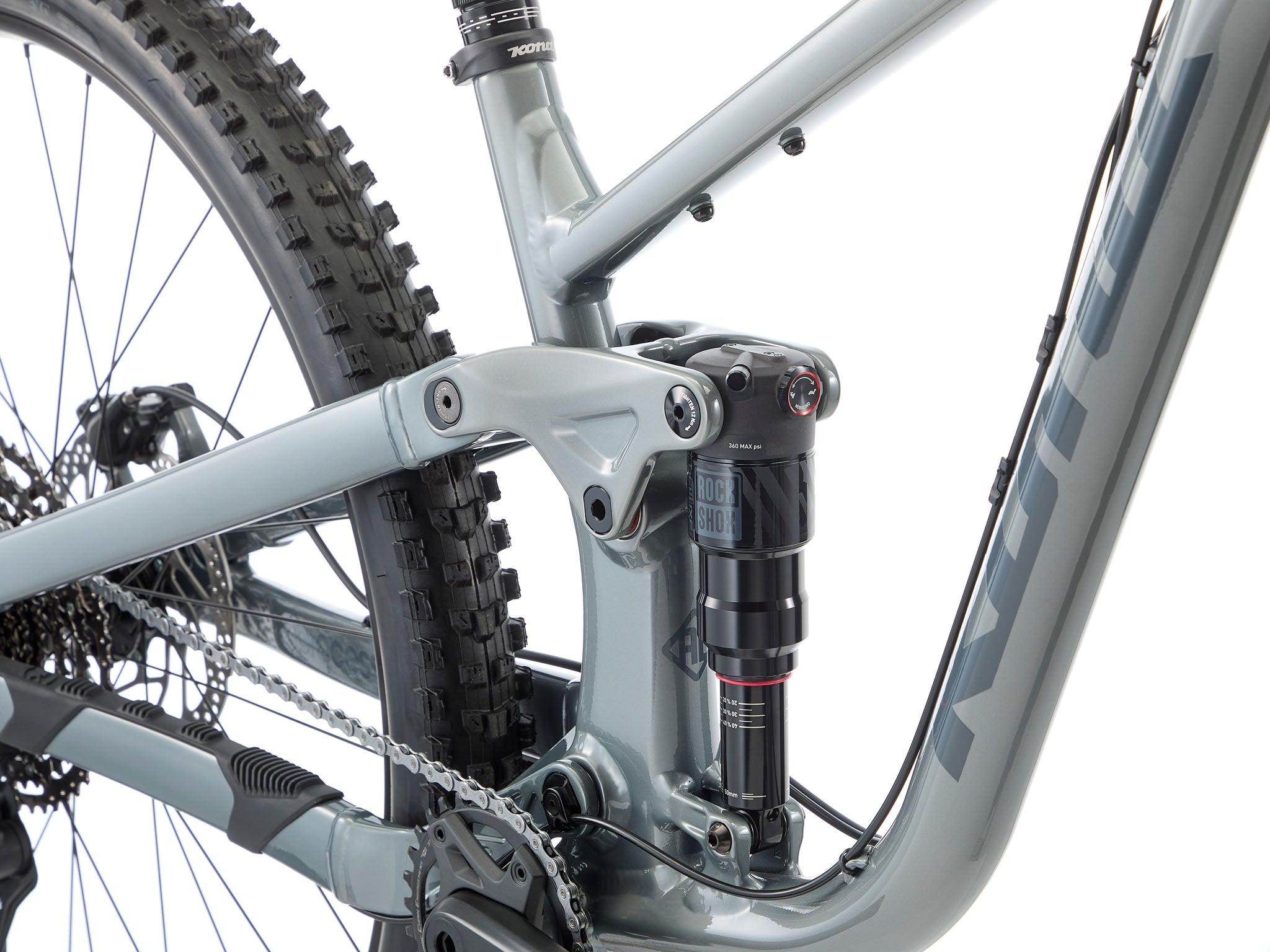

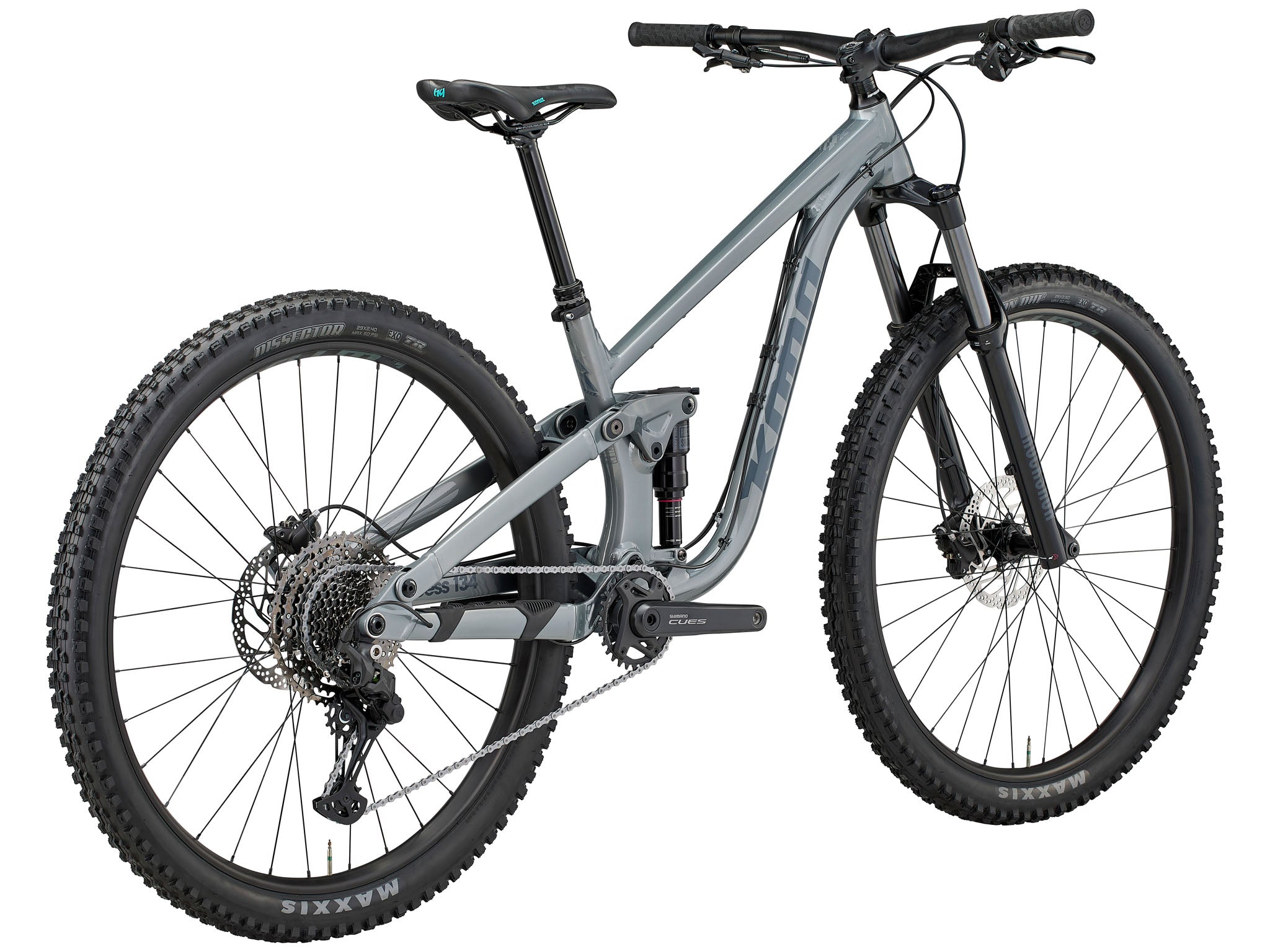

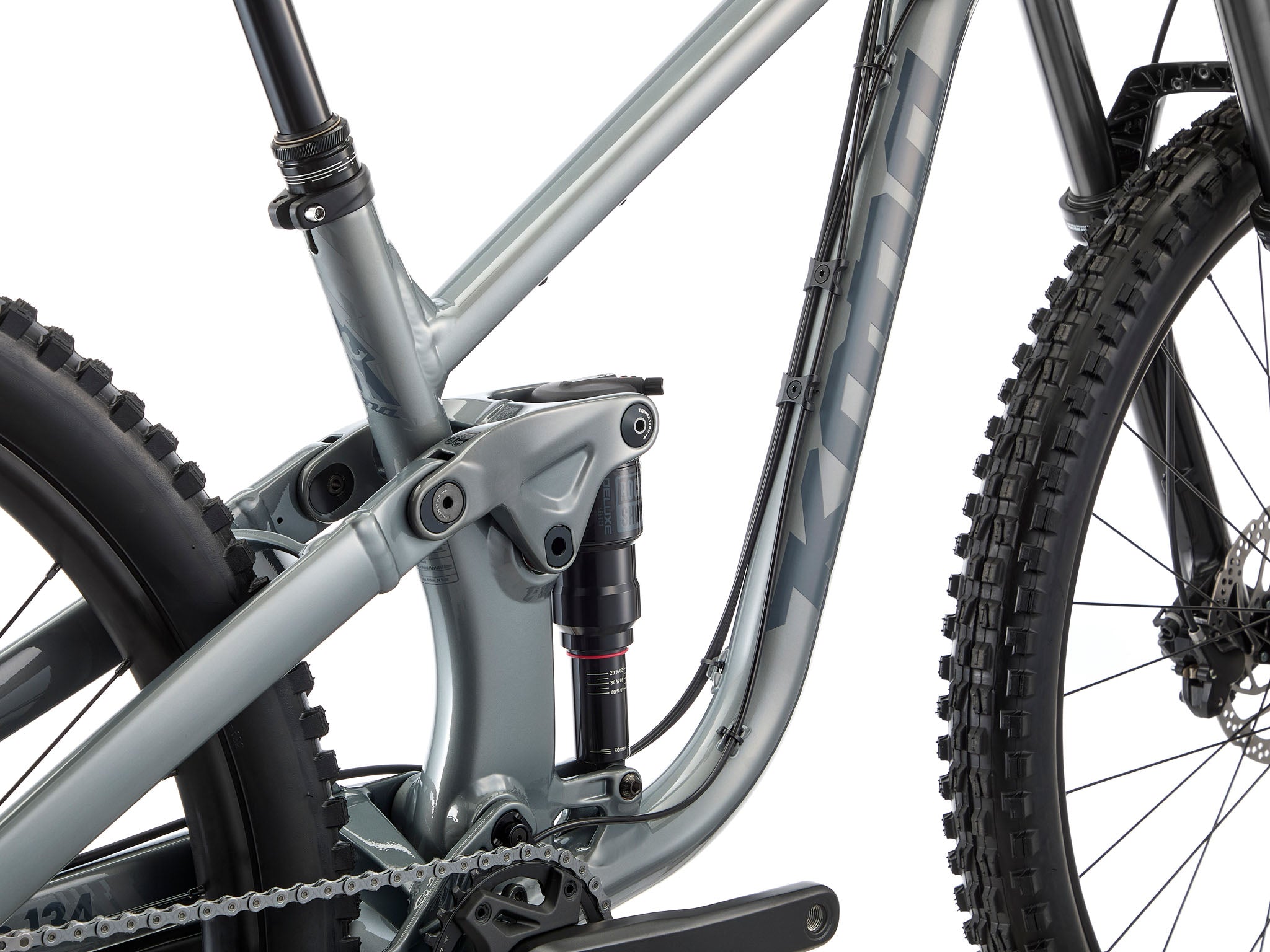

Looking for that totally dependable singletrack sidekick with solid kung fu skills? Look no further. The Process 134 is ready for any kind of riding you want to explore, from the sublime to the sketchy. Refined progressive geometry never sets a wheel wrong, and new suspension kinematics that are perfect out of the box not only keep the wheels railing smooth but can smoothly incorporate any amount of upgrade you want to throw in down the line. Smart spec ensures ripping good times and peace of mind. The Process 134 offers all the legendary durability, flip-chip versatility and jib-friendly behavior of its bigger siblings at an unbeatable price.
Now available in size XS with 27.5” wheels, MX-ready.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Kona 6061 Aluminum Butted 134mm Travel |
| SIZES | XS, S, M, L, XL |
| REAR SHOCK | RockShox Deluxe Select 185x50mm |
| FORK | RockShox Recon Silver 140mm 29" (27.5" size XS) |
| CRANKSET | Shimano CUES 6000 30t / XS-S 165mm / M-XL 170mm |
| BOTTOM BRACKET | Shimano MT500 PF92 |
| PEDALS | n/a |
| CHAIN | KMC XGlide EPT |
| CASSETTE | Shimano CUES 4000 11-50t 11spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Shimano CUES 6000 |
| SHIFTERS | Shimano CUES 6000 |
| BRAKE CALIPERS | Shimano ALTUS |
| FRONT BRAKE ROTOR | Shimano 180mm Centerlock |
| REAR BRAKE ROTOR | Shimano 180mm Centerlock |
| BRAKE LEVERS | Shimano ALTUS |
| HEADSET | FSA Orbit No.57B ZS44/ZS56 |
| HANDLEBAR | Kona 35mm / Back 8º / Up 6º / Rise 18mm / Width XS-S 760mm / M 780mm / L-XL 800mm |
| STEM | Kona 35mm / Rise 0º / Length 40mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / XS 125mm / S 150mm / M 170mm / L 200mm / XL 230mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | Kona MTB |
| FRONT HUB | Shimano 15x110mm |
| REAR HUB | Shimano 12x148mm |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB ST i30 |
| FRONT TIRE | Maxxis Minion DHF 29x2.5" EXO / TR / Dual Compound (27.5x2.5" size XS) |
| REAR TIRE | Maxxis Dissector 29x2.4" EXO / TR / Dual Compound (27.5x2.4" size XS-S) |
| PAINT COLOR | Gloss Metallic Dark Faux Raw w/ Gunmetal & Spot Matte Decals |
GEOMETRY
| Size | XS | S | M | L | XL | |
| 1 | ST Length | 360 | 380 | 380 | 420 | 450 |
| 2 | TT Length | 541 | 572 | 599 | 628 | 666 |
| 3 | Reach | 405 | 430 | 455 | 480 | 515 |
| 4 | Stack | 594 | 611 | 615 | 625 | 635 |
| 5 | Standover | 677 | 700 | 700 | 710 | 720 |
| 6 | HT Angle | 65.5 | 65.5 | 65.5 | 65.5 | 65.5 |
| 7 | HT Length | 121 | 100 | 105 | 116 | 127 |
| 8 | ST Angle | 77.1 | 76.9 | 76.9 | 76.7 | 76.6 |
| 9 | CS Length | 425 | 435 | 435 | 435 | 435 |
| 10 | BB Drop | 15 | 23 | 33 | 33 | 33 |
| 11 | BB Height | 345 | 342 | 342 | 342 | 342 |
| 12 | Wheelbase | 1140.2 | 1171 | 1200 | 1230 | 1269 |
| 13 | Front Center | 715.6 | 740 | 767 | 797 | 836 |
| 14 | Fork Length | 534 | 551 | 551 | 551 | 551 |
| 15 | Fork Offset | 42 | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
