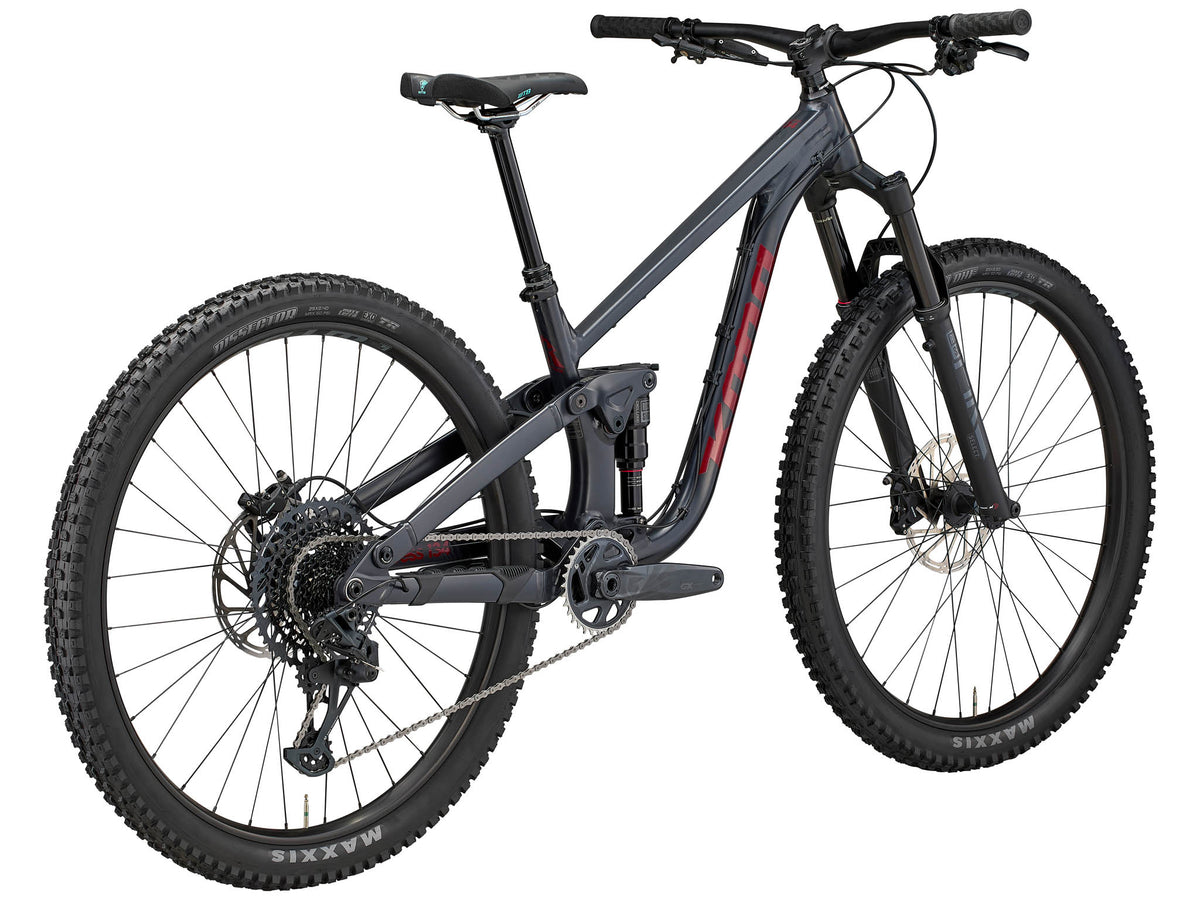

The Process 134 SE is the mountain bike you can drop into any region or any season and drive daily without hesitation. With 140mm of front travel and 134mm in the rear, it’s a little bit country and a little bit rock and roll, with everything respectable (so you don’t have to be). Every layer screams slayer at an unbeatable price. So don’t hold back—now you won’t have to.

SPECS & GEOMETRY

SPECIFICATIONS

FRAMEKona 6061 Aluminum Butted 134mm Travel
SIZESS, M, L, XL
REAR SHOCKRockShox Deluxe Select+ 185x50mm
FORKRockShox Pike Select 140mm 29"
CRANKSETSRAM Eagle 90 DUB 32t / Length 170mm
BOTTOM BRACKETSRAM DUB PF92 MTB WIDE
PEDALSn/a
CHAINSRAM NX Eagle
CASSETTESRAM GX 10-52t 12spd
CHAINGUIDEn/a
FRONT DERAILLEURn/a
REAR DERAILLEURSRAM GX Eagle
SHIFTERSSRAM GX Eagle
BRAKE CALIPERSSRAM DB G2 R
FRONT BRAKE ROTORSRAM Centerline 200mm 6B
REAR BRAKE ROTORSRAM Centerline 200mm 6B
BRAKE LEVERSSRAM DB G2 R
HEADSETFSA Orbit No.57B ZS44/ZS56
HANDLEBARKona 35mm / Back 8º / Up 6º / Rise 18mm / Width 780mm
STEMKona 35mm / Rise 0º / Length 40mm
SEATPOSTTranzX Dropper +RAD Internal 31.6mm / Length S-M 170mm / L-XL 200mm
SEAT CLAMPKona Clamp 34.9mm
GRIPSKona Key Grip Lock-on
SADDLEWTB Volt Cromoly SL
FRONT HUBDT Swiss 370 15x110mm
REAR HUBDT Swiss 370 12x148mm XD
SPOKESStainless 2.0mm Black
RIMSWTB KOM Team i30
FRONT TIREMaxxis DHF 29x2.5" WT EXO 3C MaxxTerra
REAR TIREMaxxis Dissector 29x2.4" WT EXO 3C Maxx Terra (27.5x2.4" size S)
PAINT COLORMatte Carbon w/ Gloss Carmine & Spot Gloss Decals
All specifications are subject to change without notice.

GEOMETRY

  SizeXSSMLXL
1 ST Length360380380420450
2 TT Length541572599628666
3 Reach405430455480515
4 Stack594611615625635
5 Standover677700700710720
6 HT Angle65.565.565.565.565.5
7 HT Length121100105116127
8 ST Angle77.176.976.976.776.6
9 CS Length425435435435435
10 BB Drop1523333333
11 BB Height345342342342342
12 Wheelbase1140.21171120012301269
13 Front Center715.6740767797836
14 Fork Length534551551551551
15 Fork Offset4244444444
Bike Geometry

Sizing & Selection

Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:

  • Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
  • Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.

GRAVEL / DROP BAR / URBAN

Height/Inches Height/Metric Inseam/Inches Inseam/Metric Rove Libre Sutra/Ouroboros Dews CoCo
4'10"-5'1" 147-155cm 24”-27” 61-69cm 48cm 50cm 48cm N/A XS
5'0"-5'3" 152-160cm 26"-29" 66-74cm 48-50cm 50cm 48-50cm Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm 48-52cm 50-52cm 48-52cm Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm 52-54cm 52-54cm 52-54cm Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm 52-56cm 54-56cm 54-56cm Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm 54-58cm 54-58cm 54-58cm Large, XL Large
6'1"-6'5" 185-196cm 33"-36" 84-91cm 56-58cm 58cm 56-58cm XL N/A

MTB FULL SUSPENSION / HARDTAIL / SPLICE

Height/Inches Height/Metric Inseam/Inches Inseam/Metric MTB/XC Trail/Fat All Mountain/Enduro Splice
4'10"-5'1" 147-155cm 24”-27” 61-69cm XS XS Small
5'0"-5'3" 152-160cm 26"-29" 66-74cm Small Small Small
5'2"-5'7" 157-170cm 27"-30" 69-76cm Small, Medium Small, Medium Small, Medium
5'6"-5'10" 168-178cm 29"-31" 74-79cm Medium Medium Medium
5'9"-6'0" 175-183cm 30"-33" 76-84cm Medium, Large Medium, Large Medium, Large
5'11"-6'2" 180-188cm 32"-35" 81-89cm Large, XL Large, XL Large, XL
6'1"-6'5" 185-196cm 33"-36" 84-91cm Large, XL Large, XL Large, XL
