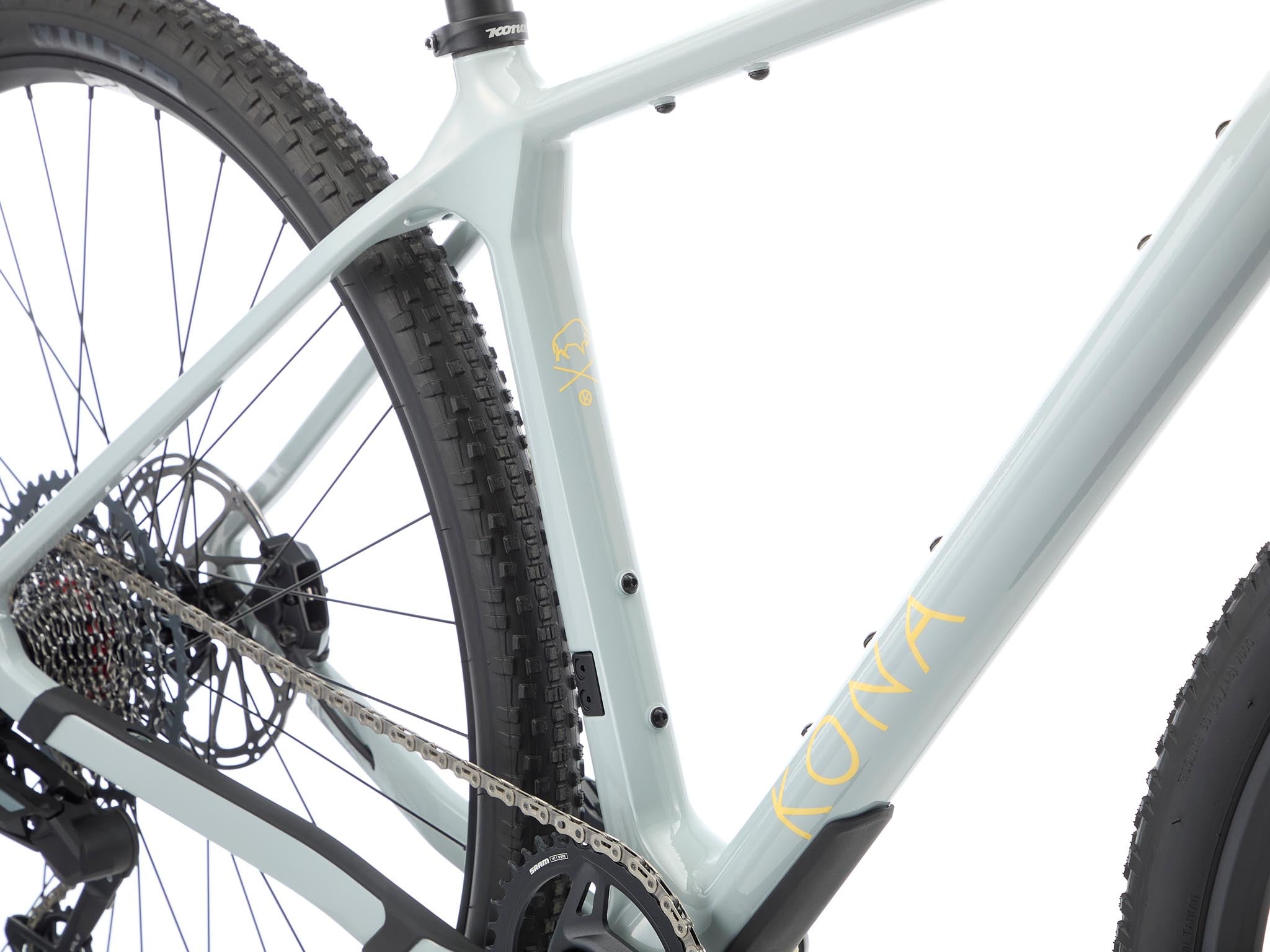

Ouroboros CR/DL
Sale price$4,999.00 USD
Regular price$0.00 USD (/)
An absolutely stunning gravel bike for those who seek a more traditional look and feel. This creation prioritizes lightweight features and adheres to the sacred and long-established characteristics of a drop bar bike. We’ve thoughtfully spec’d gear steps that are closer together to help you maintain your ideal cadence. With that sweet spot so easy to find, you won’t lose your rhythm – no matter your load or speed.
SPECS & GEOMETRY
SPECIFICATIONS

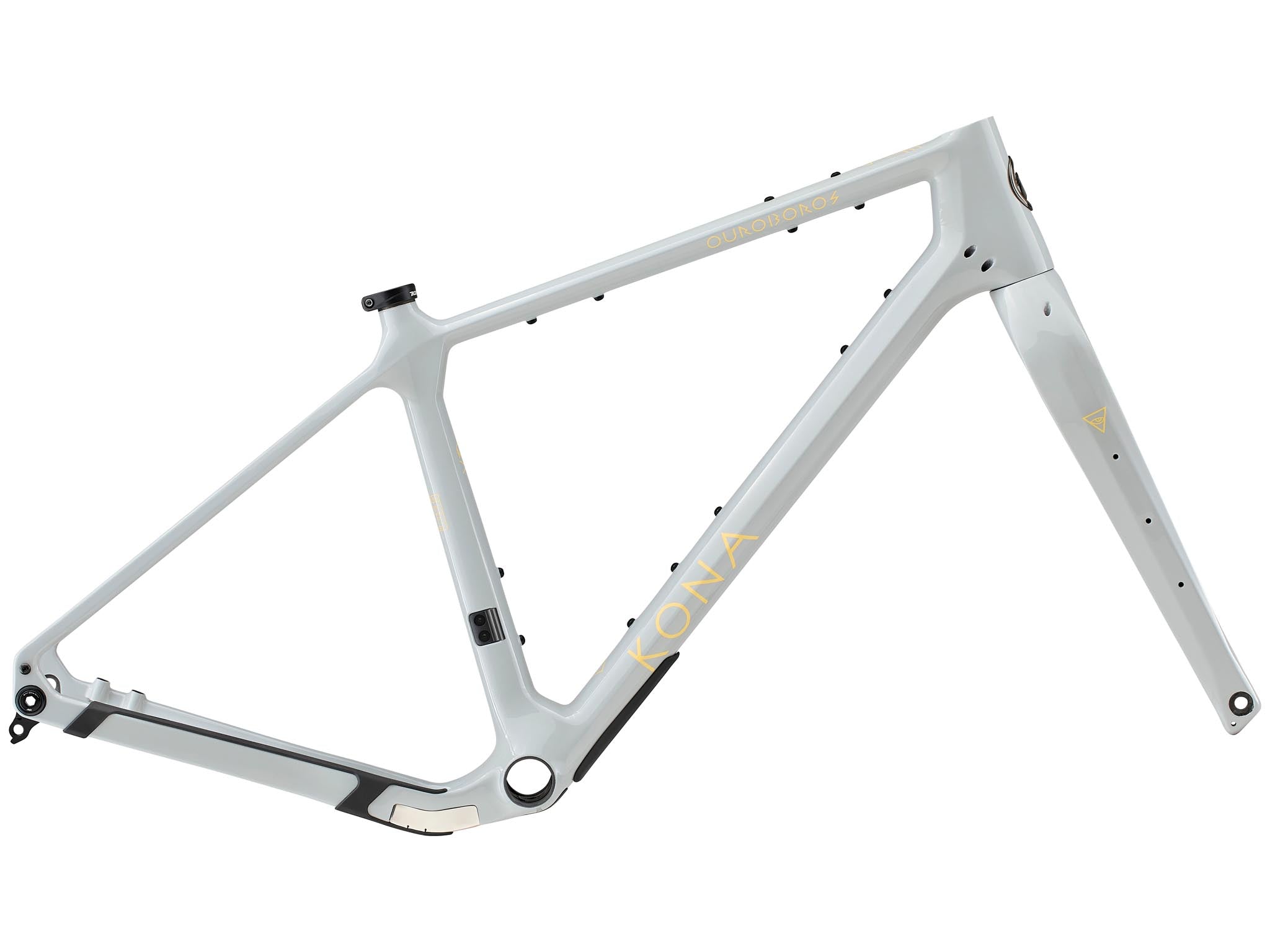

| FRAME | Kona Carbon |
| SIZES | 48, 50, 52, 54, 56, 58 |
| REAR SHOCK | n/a |
| FORK | RockShox Rudy Ultimate XPLR / Charger Race Day 2 / 40mm travel / tapered / 12x100 |
| CRANKSET | SRAM Rival XPLR 38t / Length 48-52 165mm / 54 170mm / 56-58 172.5mm |
| BOTTOM BRACKET | SRAM PF86.5 DUB Wide |
| PEDALS | n/a |
| CHAIN | SRAM Rival |
| CASSETTE | SRAM XG 1351 XPLR 10-46t 13sp XDR |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Rival XPLR AXS |
| SHIFTERS | SRAM Rival AXS |
| BRAKE CALIPERS | SRAM Rival AXS |
| FRONT BRAKE ROTOR | SRAM Centerline 180mm 6B |
| REAR BRAKE ROTOR | SRAM Centerline 180mm 6B |
| BRAKE LEVERS | SRAM Rival XPLR |
| HEADSET | FSA Orbit No.57 ZS44/ZS56 |
| HANDLEBAR | Ritchey Venturemax Comp / 24-degree flare / 4.6 degree back / Width 48-50 460mm / 52-54 480mm / 56 500mm / 58 520mm |
| STEM | Ritchey Comp Trail / Length 48-52 45mm / 54-58 60mm |
| SEATPOST | Rockshox Reverb AXS 31.6mm / Length 48-52 100mm / 54-58 125mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Cork Tape |
| SADDLE | WTB Volt Medium Cromoly SL Fusion |
| FRONT HUB | KT 12x100mm |
| REAR HUB | KT 12x142mm XDR |
| SPOKES | Stainless 2.0/1.8mm Black |
| RIMS | WTB KOM Team i27 TCS CVX 29" |
| FRONT TIRE | WTB Resolute TCS Light 700x50mm |
| REAR TIRE | WTB Resolute TCS Light 700x50mm |
| PAINT COLOR | Gloss Concrete w/ Honeycomb Decals |
| EXTRAS | AXS Powerpack |
All specifications are subject to change without notice.
GEOMETRY
| Size | 48 | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 410 | 410 | 455 | 455 | 500 | 535 |
| 2 | TT Length | 532 | 547 | 559 | 578 | 595 | 616 |
| 3 | Reach | 372 | 377 | 382 | 386 | 391 | 396 |
| 4 | Stack | 566 | 581 | 598 | 616 | 636 | 666 |
| 5 | Standover | 725 | 730 | 769 | 777 | 814 | 848 |
| 6 | HT Angle | 68.7 | 68.7 | 68.7 | 68.7 | 68.7 | 68.7 |
| 7 | HT Length | 116 | 132 | 148 | 172 | 193 | 225 |
| 8 | ST Angle | 74.2 | 73.7 | 73.2 | 72.7 | 72.2 | 71.7 |
| 9 | CS Length | 445 | 445 | 445 | 445 | 445 | 445 |
| 10 | BB Drop | 69 | 69 | 69 | 66 | 66 | 66 |
| 11 | BB Height | 296 | 296 | 296 | 299 | 299 | 299 |
| 12 | Wheelbase | 1060 | 1071 | 1082 | 1096 | 1108 | 1124 |
| 13 | Front Center | 624 | 635 | 646 | 659 | 671 | 687 |
| 14 | Fork Length | 435 | 435 | 435 | 435 | 435 | 435 |
| 15 | Fork Offset | 51 | 51 | 51 | 51 | 51 | 51 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
