Libre EL
Not finding what you want here?
Contact your local Kona Dealer.
The Libre EL has made itself known as a go-to adventure bike for people of all abilities. Looking to up your distance? Want a tool that allows you to ride farther in less time? The Libre EL is a versatile machine that has the legs to go just about anywhere. Built on our wildly popular Libre platform, the Libre EL features an aluminum frame and Verso Full Carbon Flat Mount Disc fork. Like its CR DL sibling, it runs a gravel-specific drivetrain and brakes, ensuring the grime that you’ll inevitably get from a mucky ride doesn’t affect shifting and braking performance. Unlike its analog sibling it gets a power boost from a Shimano motor and internal battery. In other words, it’ll get you to the top of that insanely steep mountain you’ve been eyeing up, and let you enjoy the benefits of rippin’ gravel on the way down!
“Throughout all our test rides, probably the most glaring and consistent observation riders made was how balanced the Kona’s handling felt… On the way back down that very trail, we literally almost forgot it was an e-bike.” -Road Bike Action
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | 50, 52, 54, 56, 58 |
| Rear Shock | n/a |
| Fork | Kona Verso Full Carbon Flat Mount Disc |
| Crankarms | Shimano E8000 |
| Chainrings | Direct Mount Samox 38t |
| B/B | n/a |
| Pedals | n/a |
| Chain | Shimano 105 |
| Cassette | Shimano Deore 11-42t 11spd |
| Chainguide | n/a |
| F/D | n/a |
| R/D | Shimano GRX 812 |
| Shifters | Shimano GRX 810 |

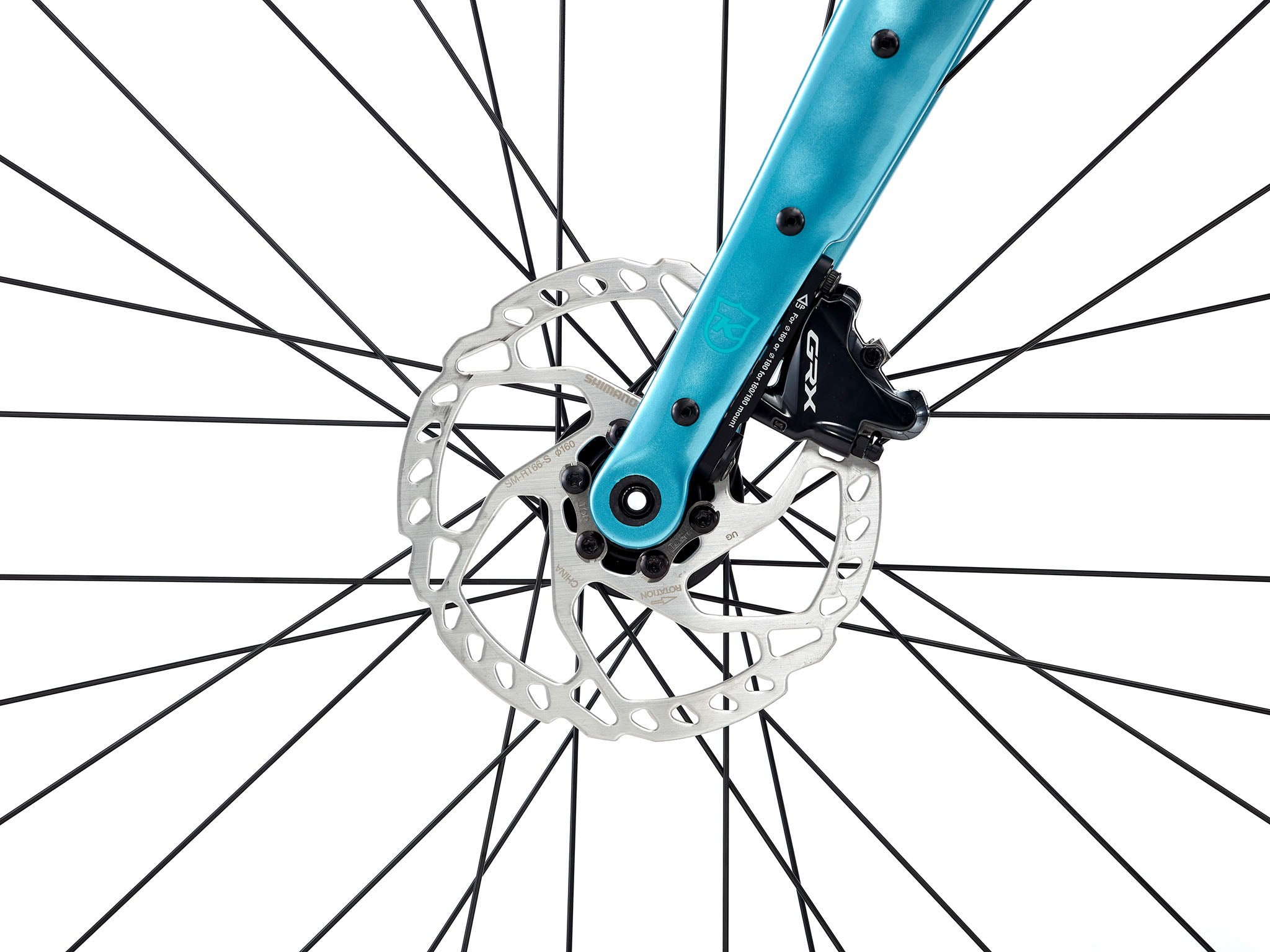

| Brake Calipers | Shimano GRX 810 |
| Front Brake Rotor | Shimano RT66 160mm |
| Rear Brake Rotor | Shimano RT66 160mm |
| Brake Levers | Shimano GRX 810 |
| Headset | Orbit 1.5 ZS, No.57-T |
| Handlebar | Kona Road |
| Stem | Kona Road Deluxe |
| Seatpost | TranzX Dropper +RAD Internal w/ Shimano Lever 31.6mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Cork Tape |
| Saddle | WTB Volt |
| Front Hub | Formula 100x12mm |
| Rear Hub | Formula 142x12mm |
| Spokes | Stainless 14g |
| Rims | WTB HTZ i25 TCS 2.0 |
| Front Tire | WTB Venture TCS w/ Puncture Protection 650x47c |
| Rear Tire | WTB Venture TCS w/ Puncture Protection 650x47c |
| DriveUnit | Shimano E7000 20MPH |
| Battery | Shimano 504Wh |
| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| BatteryLock | n/a |
| Paint Color | Gloss Metallic Blue w/ Charcoal & Turquoise Decals |
| Extras | n/a |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | 50 | 52 | 54 | 56 | 58 | |
| 1 | ST Length | 455 | 490 | 510 | 540 | 550 |
| 2 | TT Length | 543 | 558 | 573 | 588 | 608 |
| 3 | Reach | 378 | 383 | 386 | 389 | 394 |
| 4 | Stack | 575 | 590 | 610 | 630 | 660 |
| 5 | Standover | 721 | 749 | 772 | 799 | 818 |
| 6 | HT Angle | 70.5 | 70.5 | 71.0 | 71.0 | 71.0 |
| 7 | HT Length | 137 | 153 | 175 | 197 | 230 |
| 8 | ST Angle | 74.0 | 73.5 | 73.0 | 72.5 | 72.0 |
| 9 | CS Length | 440 | 440 | 440 | 440 | 440 |
| 10 | BB Drop | 75 | 75 | 72 | 72 | 70 |
| 11 | BB Height | 268 | 268 | 271 | 271 | 273 |
| 12 | Wheelbase | 1042 | 1052 | 1058 | 1068 | 1084 |
| 13 | Front Center | 613 | 623 | 628 | 638 | 654 |
| 14 | Fork Length | 410 | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
The Libre EL
We're boldly going where few have dared to roam. Our ultra-successful Libre receives the electric treatment, bringing big gravel adventures to more riders than ever before.

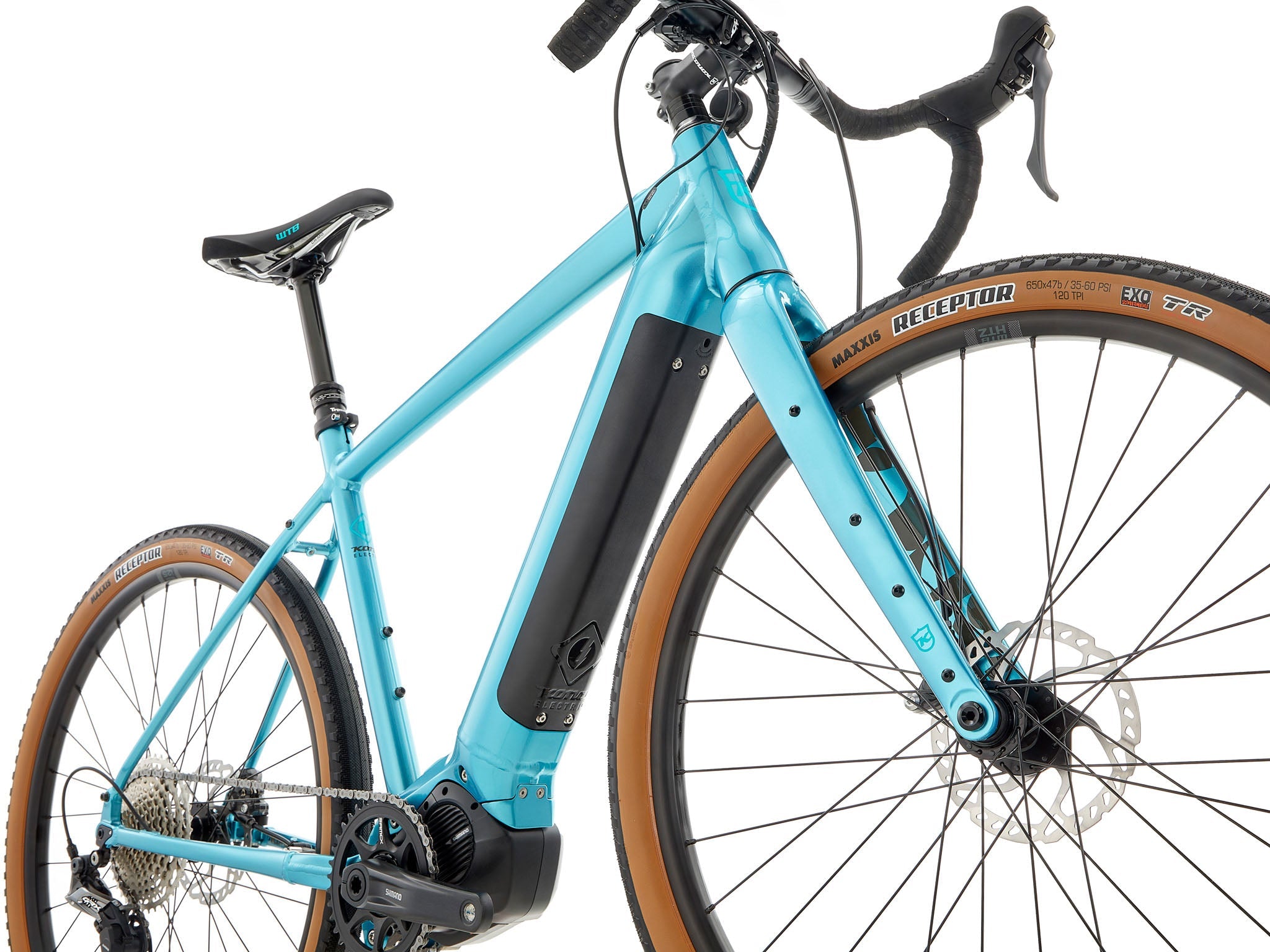

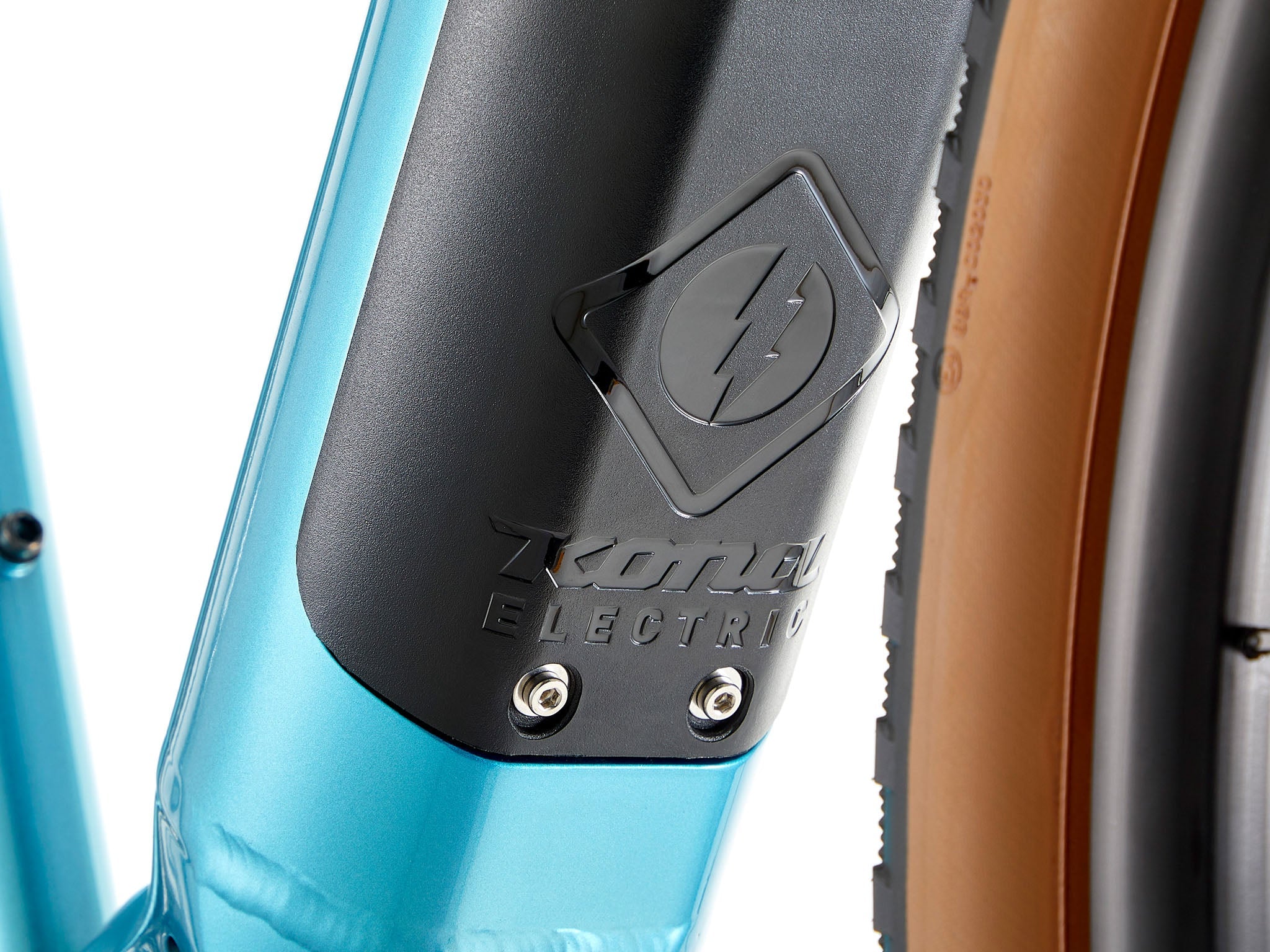

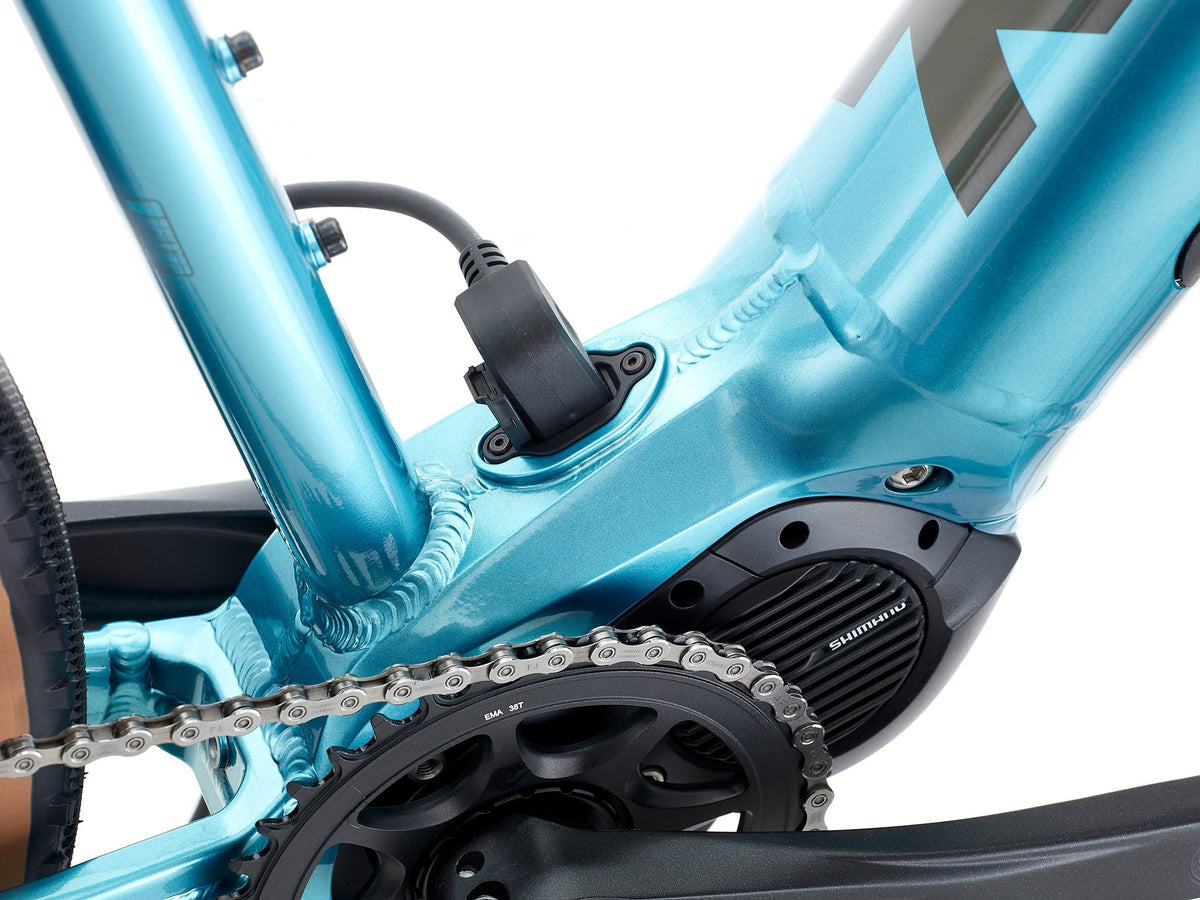

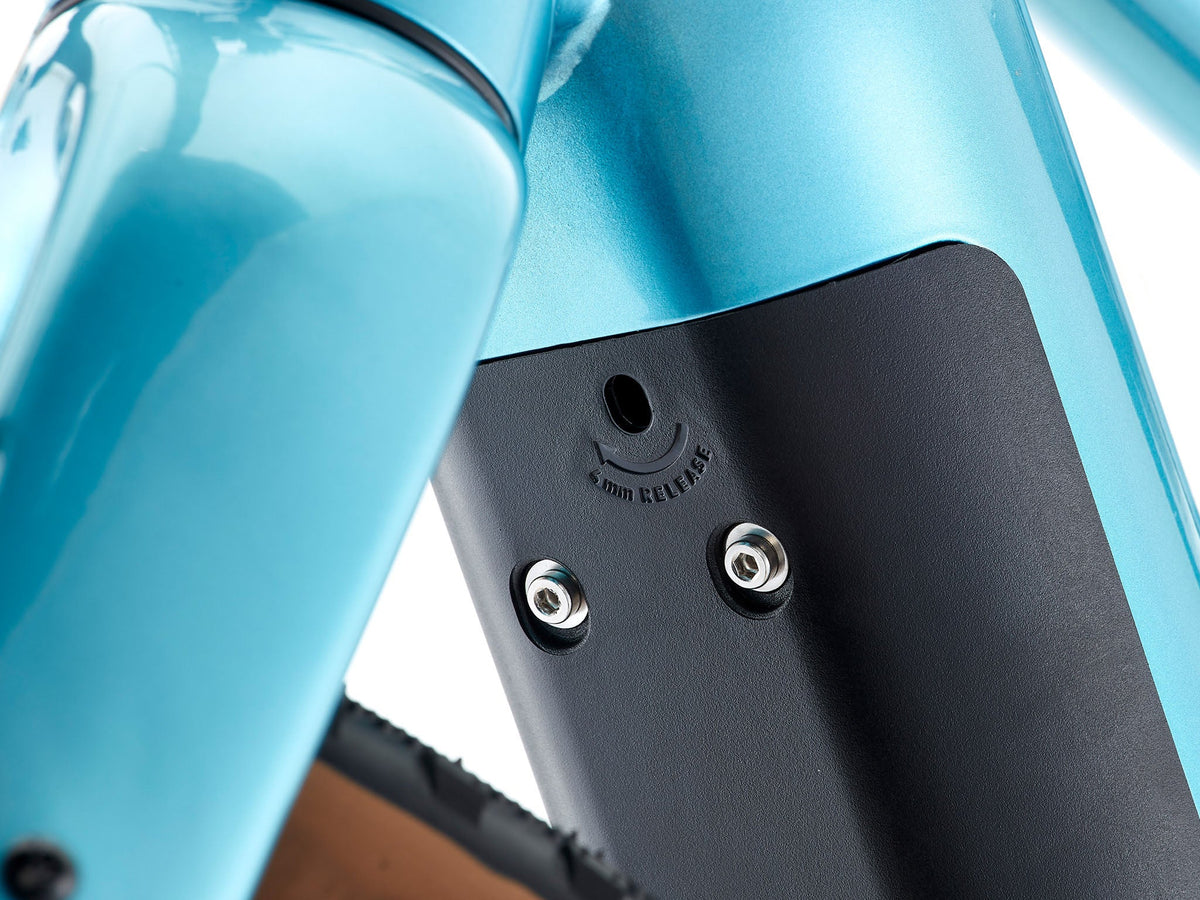

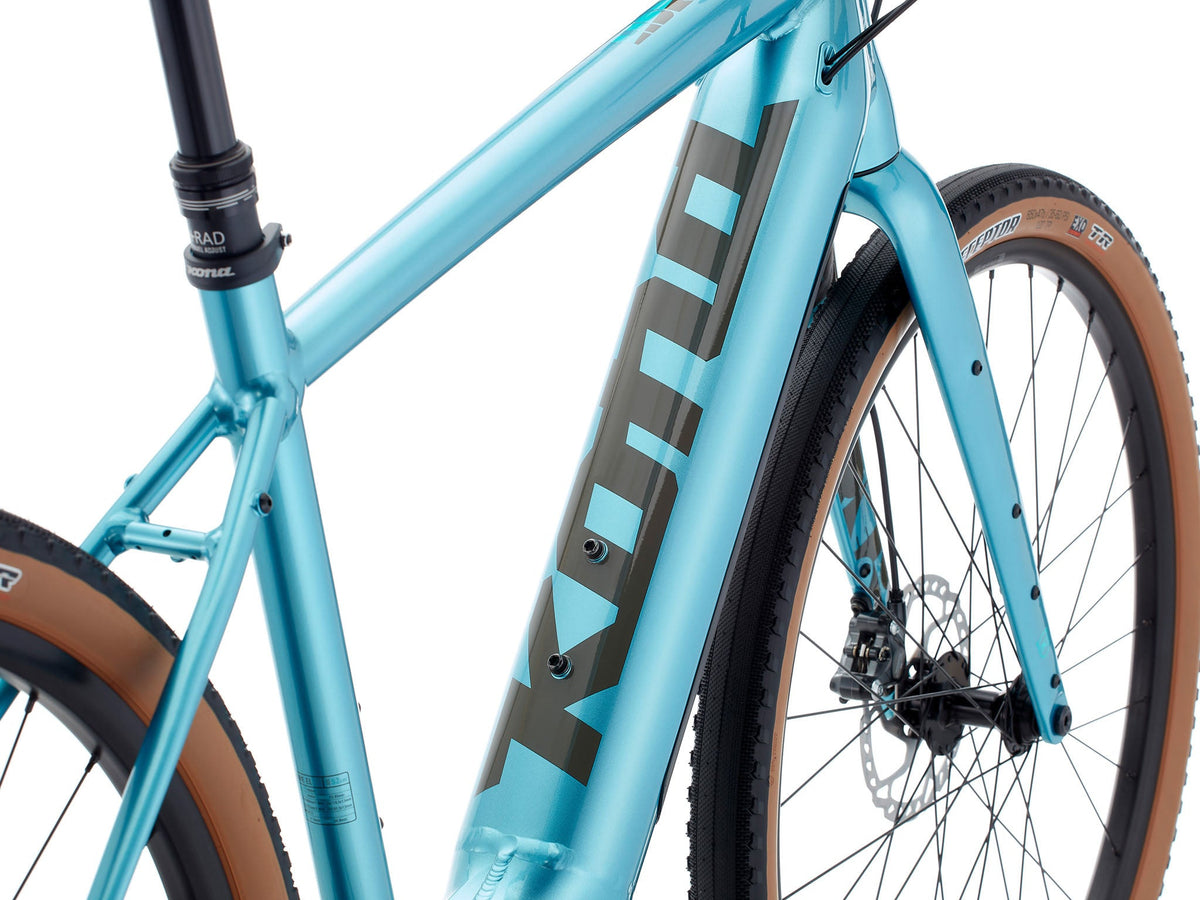

A Shimano E7000 drive unit is powered by a fully integrated 504 Wh battery.

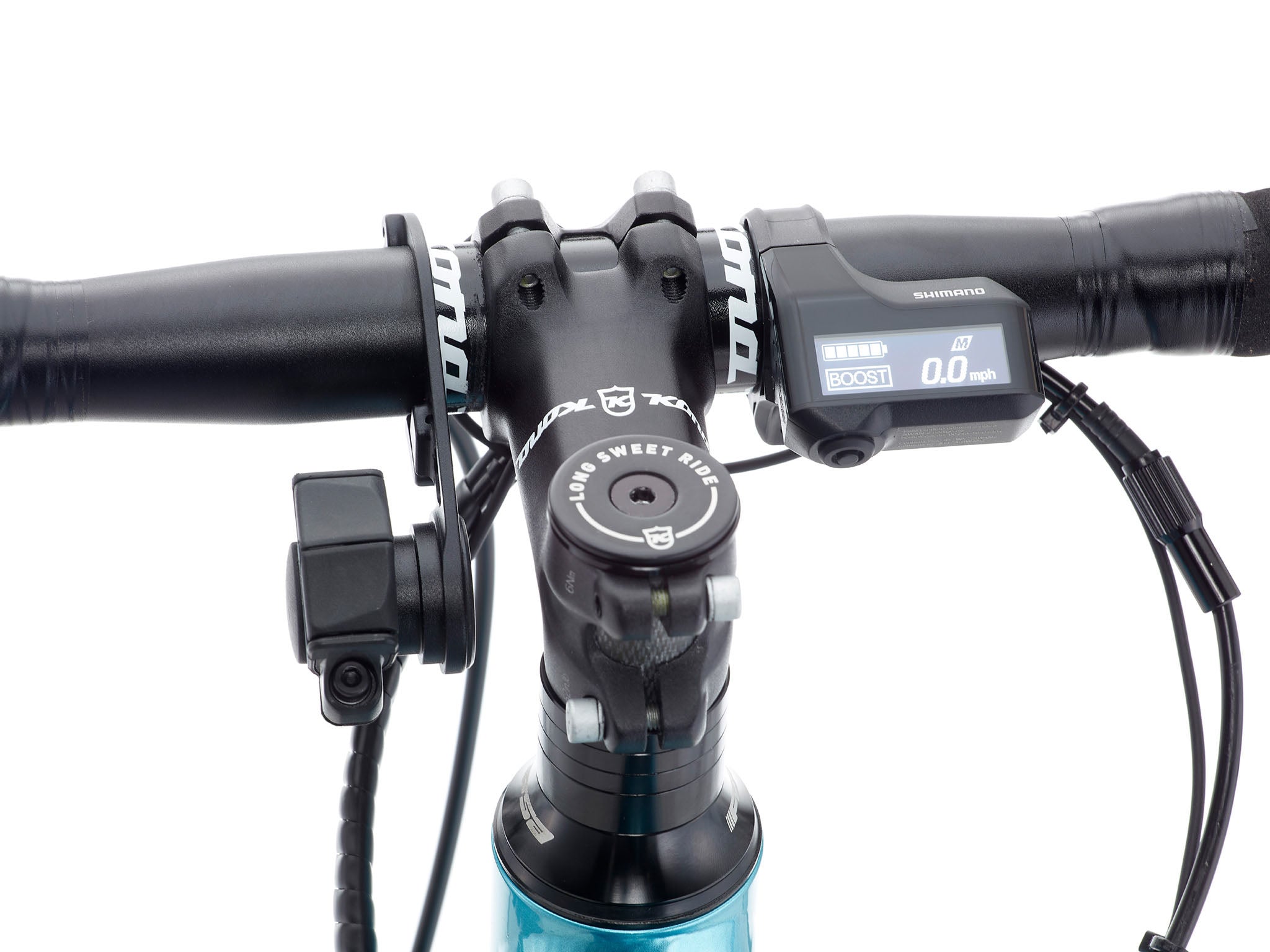

The E7000 display is intuitive and can be synced to a smartphone via bluetooth.
The Libre EL includes a dropper post for when the trail calls for more aggressive descending.

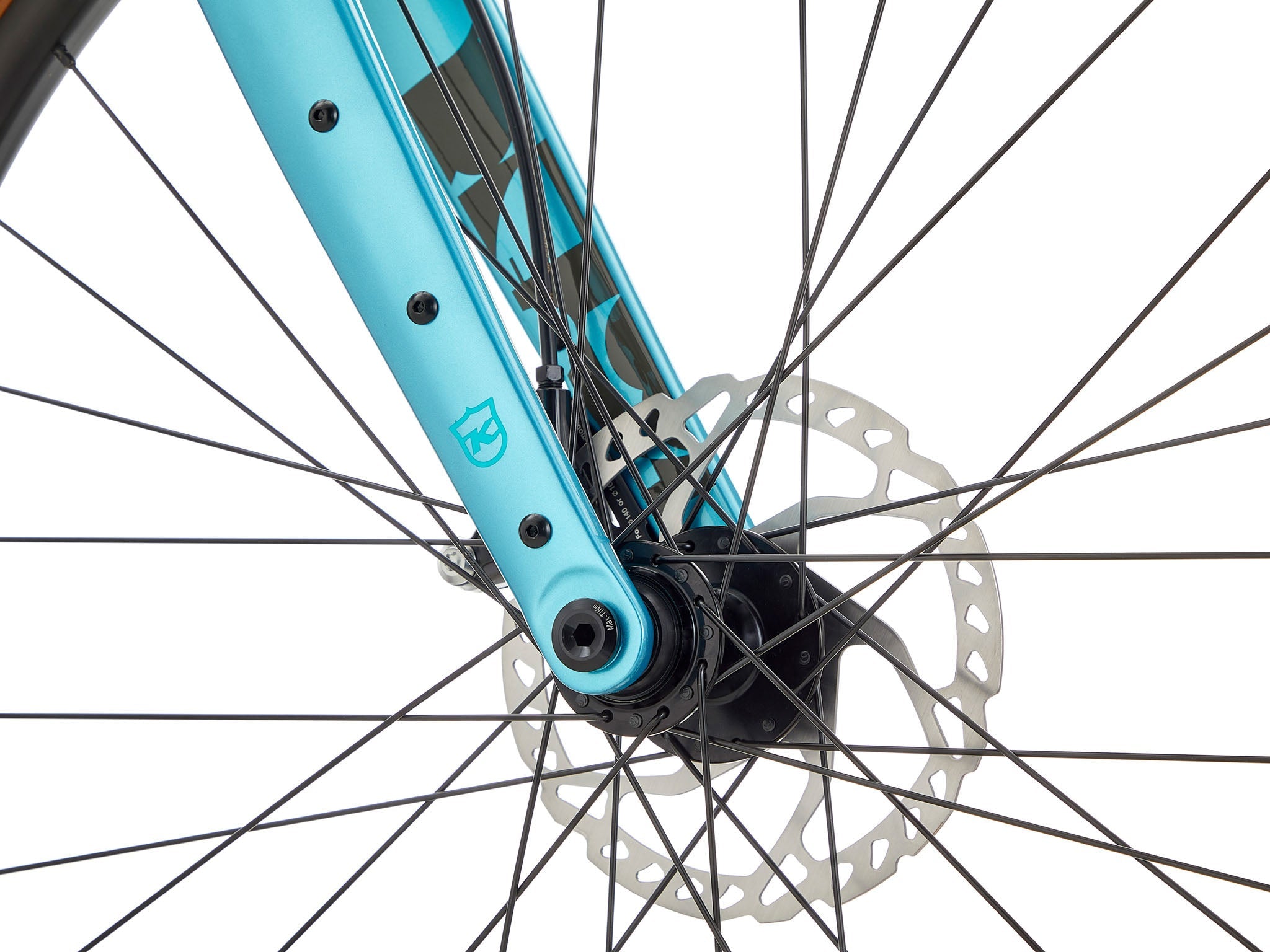

The Libre EL features the Kona Verso Carbon fork complete with 3-pack cage mounts that are excellent for carrying gear.
The Libre EL has tire clearance to run 650x47c or 700x45c tires with fenders.
The Libre EL uses the same hanger as the Libre models and features a 12x142 e-thru dropout.
