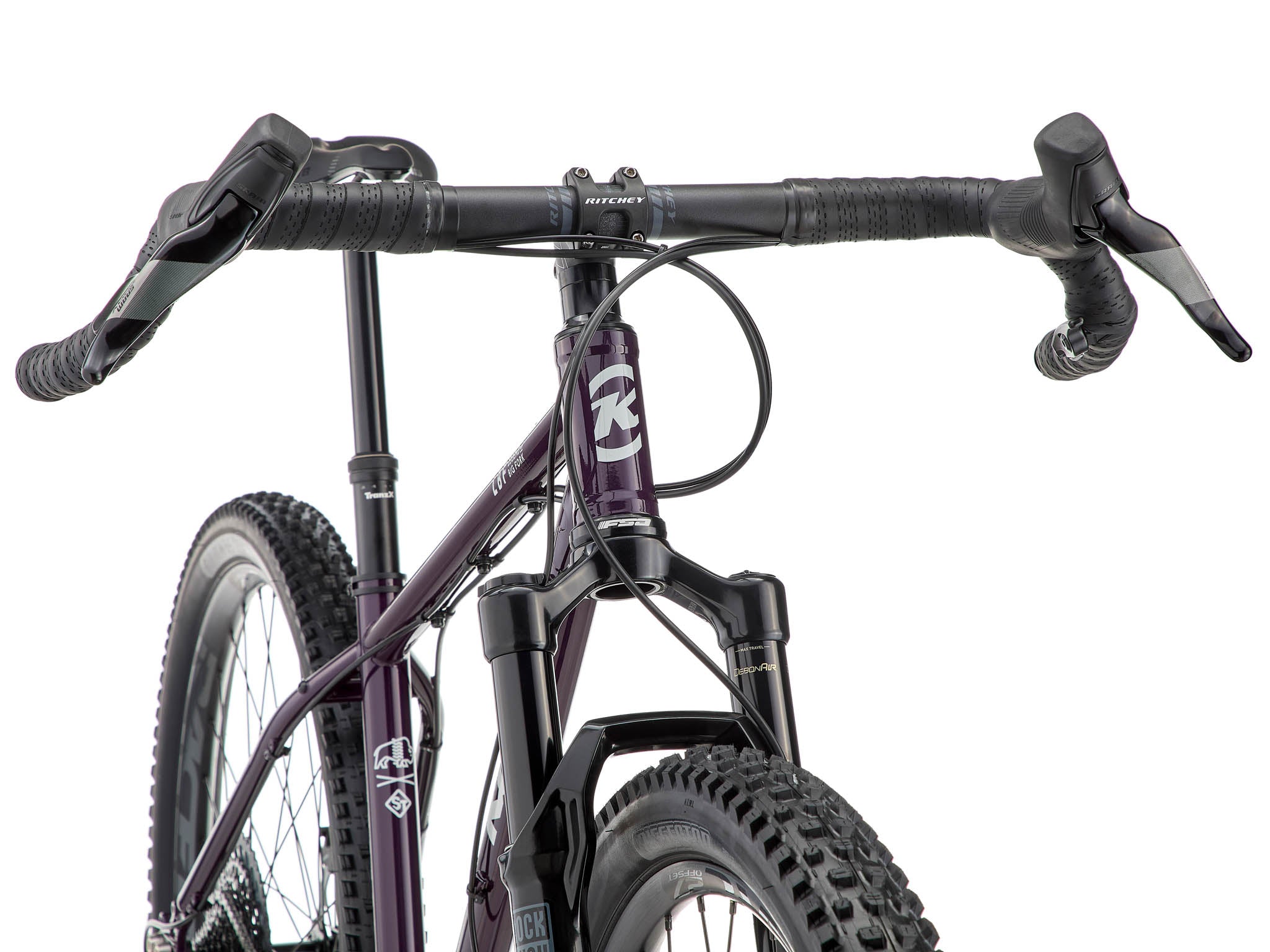

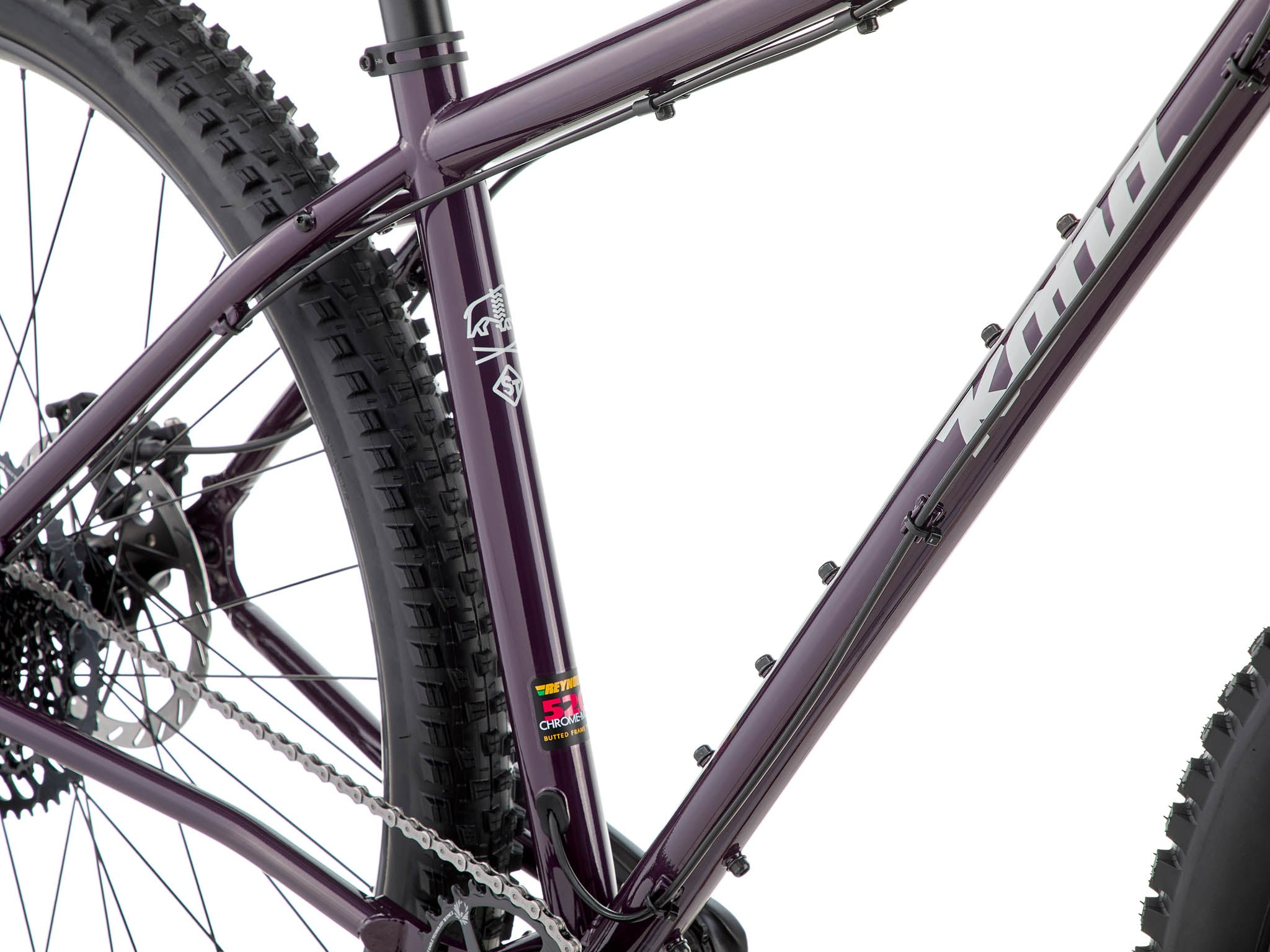

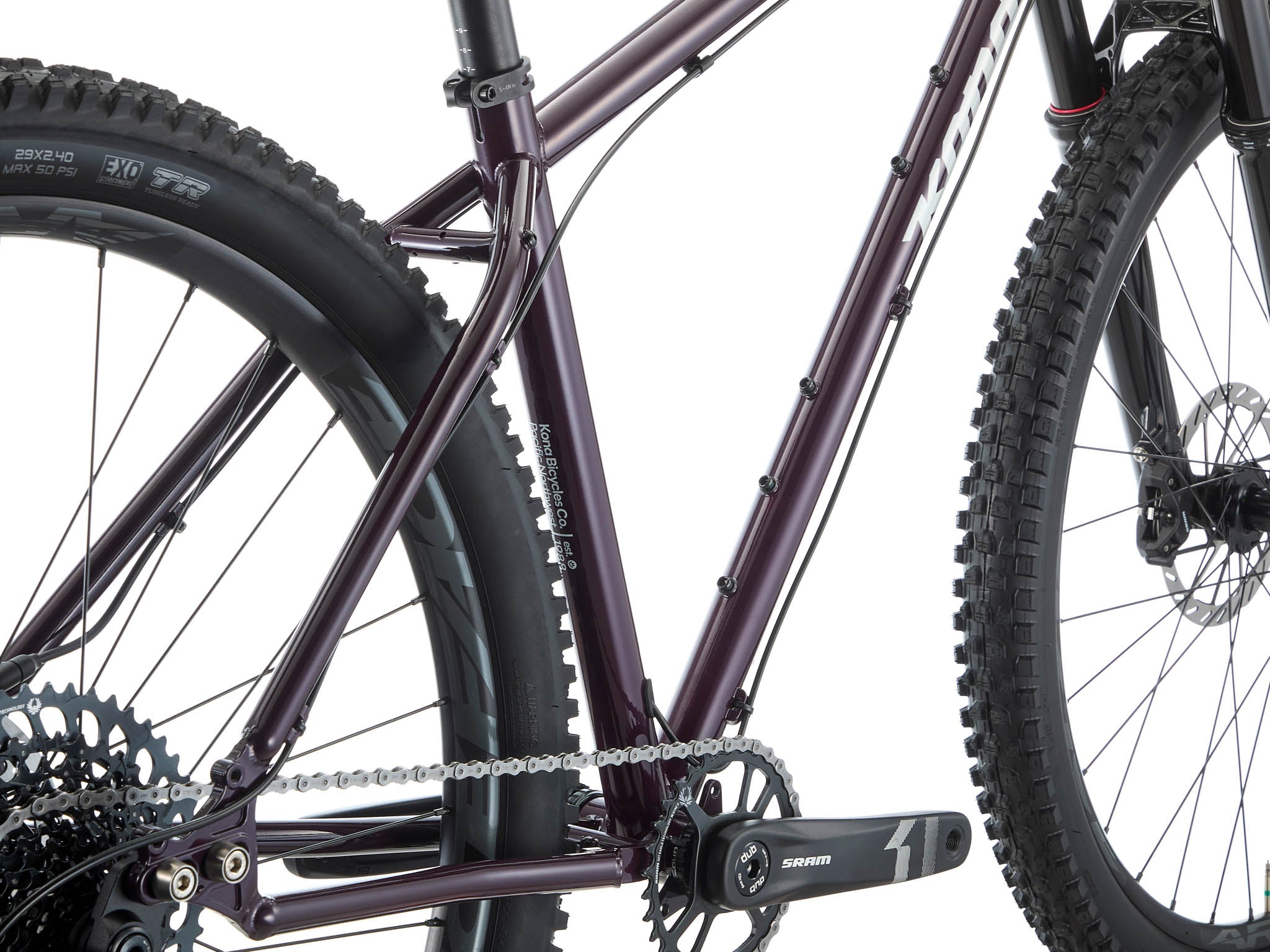

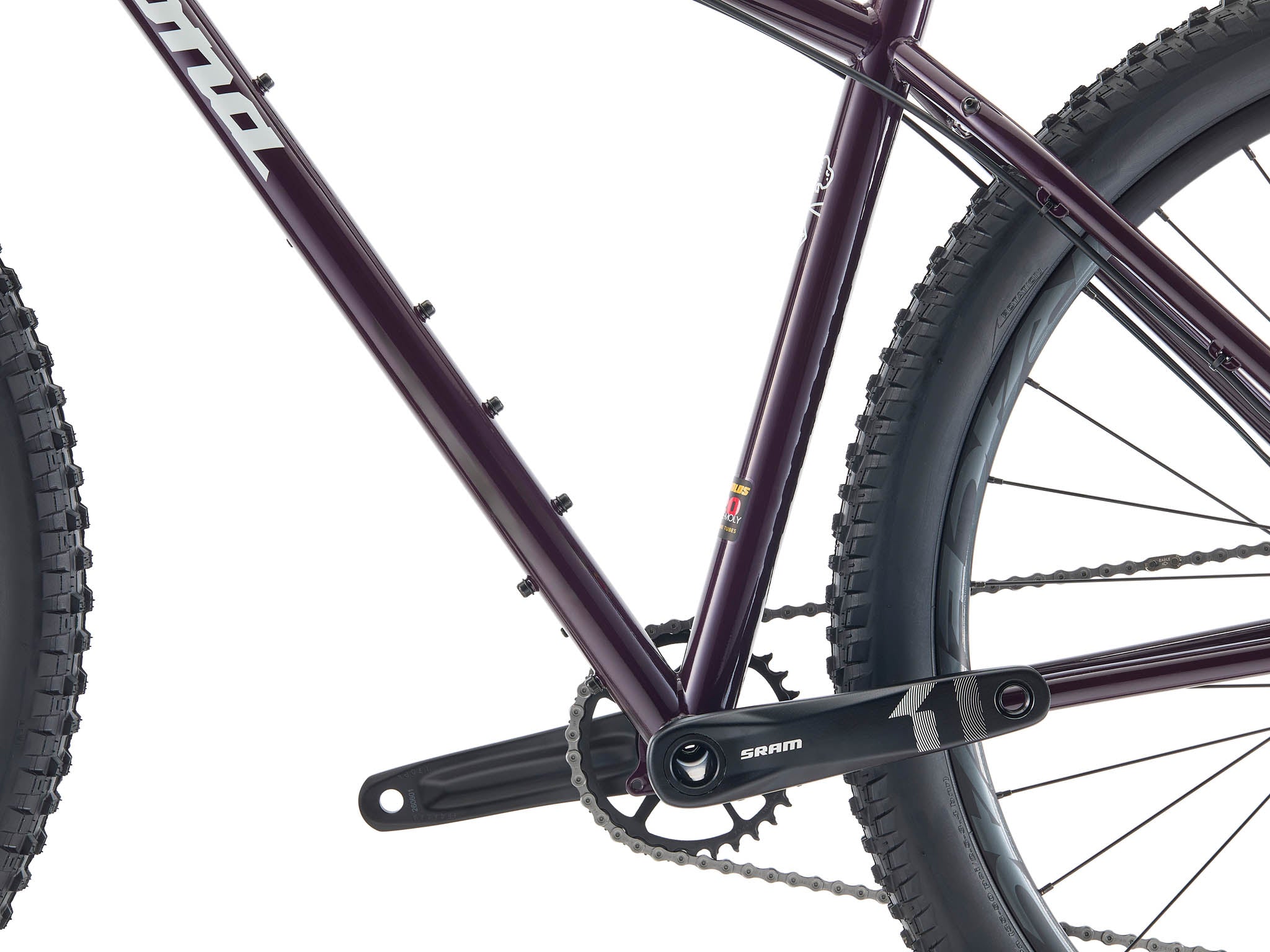

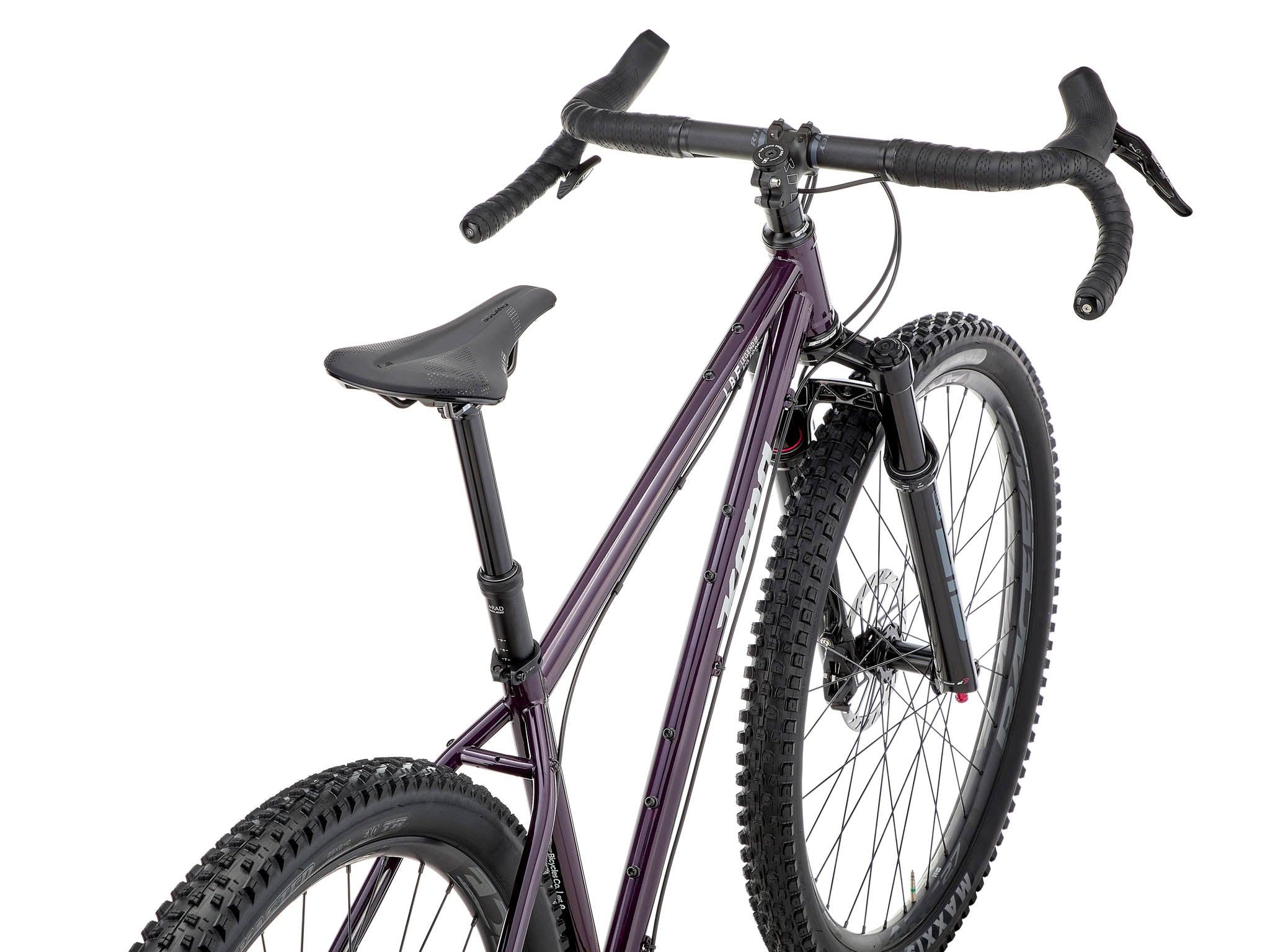

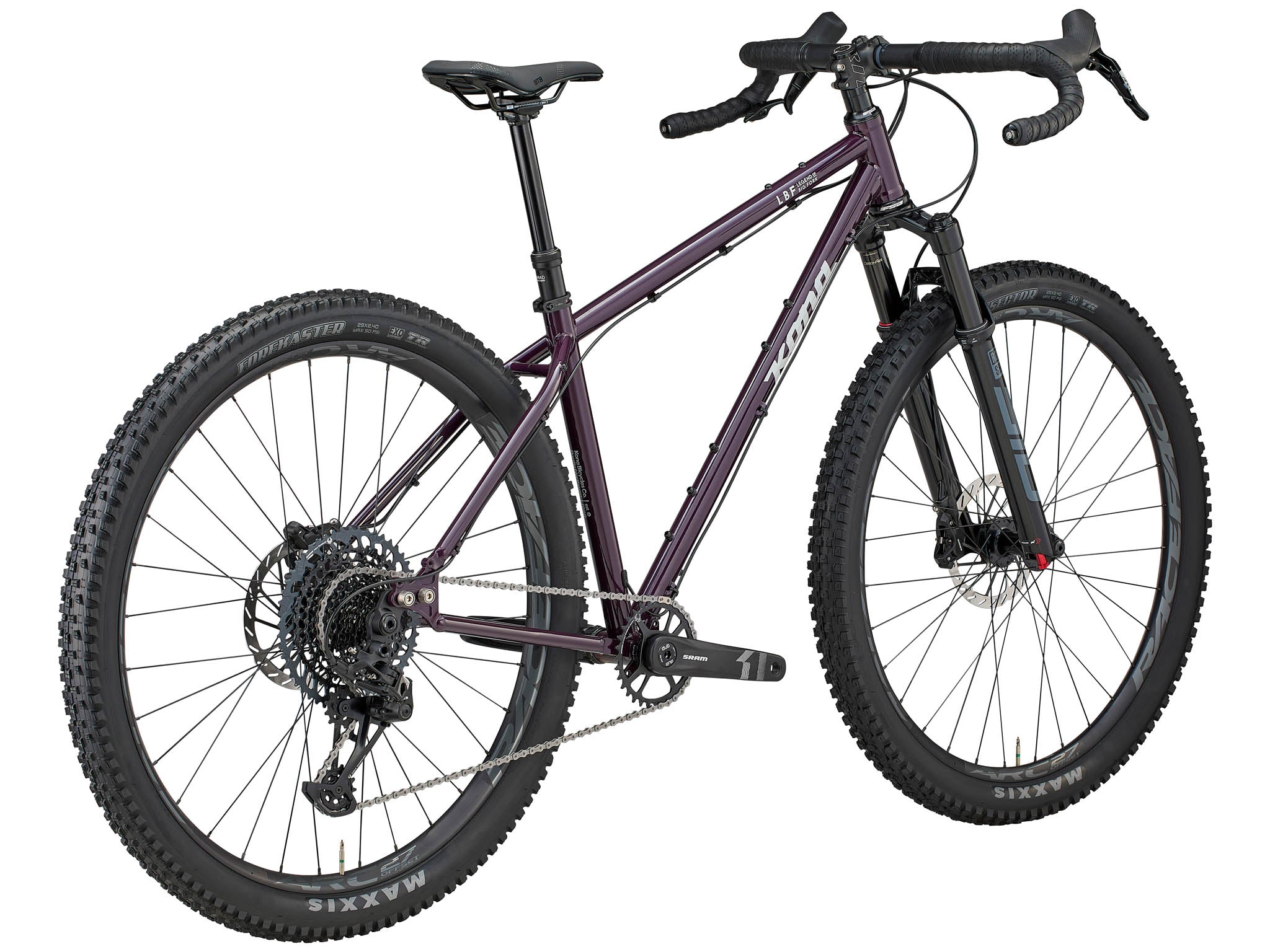

The LBF is a steel suspension gravel bike built for technical singletrack, chunky backcountry descents, and every rough route drop bars were supposedly meant to avoid. Forged in the wilderness of the Pacific Northwest, it pairs a durable steel frame with a 100mm suspension fork for real control when gravel riding starts looking a lot more like mountain biking. This is exactly the kind of category bending bike Kona’s mountain bike heritage has prepared us to build. Custom SRAM Apex Eagle levers and powerful G2 calipers deliver mountain bike level braking without giving up drop bar comfort, while burly Race Face rims and wide, grippy Maxxis tires keep it planted when the trail gets wild. Part gravel bike, part mountain bike, and still not fully explained by science. Reports remain unconfirmed. The tire tracks are very real.
SPECS & GEOMETRY
SPECIFICATIONS
| FRAME | Reynolds 520 Butted Cromoly |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | RockShox SID 100mm 29" |
| CRANKSET | SRAM X1 32t / S-M 170mm / L-XL 175mm |
| BOTTOM BRACKET | SRAM DUB BSA 73 |
| PEDALS | n/a |
| CHAIN | SRAM NX |
| CASSETTE | SRAM GX 10-52t 12spd |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | SRAM Apex |
| SHIFTER | SRAM Apex |
| BRAKE CALIPERS | SRAM G2 4P |
| FRONT BRAKE ROTOR | SRAM HS2 180mm 6B |
| REAR BRAKE ROTOR | SRAM HS2 180mm 6B |
| BRAKE LEVERS | SRAM Apex |
| HEADSET | FSA No.9M ZS44/EC44 |
| HANDLEBAR | Ritchey Beacon Comp / S 46cm / M 50cm / L-XL 52cm |
| STEM | Ritchey Comp Trail / S 35mm / M 45mm / L-XL 60mm |
| SEATPOST | TranzX Dropper +RAD Internal 31.6mm / S 125mm / M 150mm / L-XL 170mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Cork Tape |
| SADDLE | WTB Solano Steel Fusion Form |
| FRONT HUB | Formula 15x110mm |
| REAR HUB | Formula 12x148mm XD |
| SPOKES | Stainless 2.0mm Black |
| RIMS | RaceFace ARC 27 Offset |
| FRONT TIRE | Maxxis Dissector 29x2.4" |
| REAR TIRE | Maxxis Forekaster 29x2.4" |
| PAINT COLOR | Gloss Cherry Lacquer w/ Gum White Decals |
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 400 | 445 | 490 | 535 |
| 2 | TT Length | 552 | 577 | 607 | 647 |
| 3 | Reach | 385 | 405 | 430 | 465 |
| 4 | Stack | 623 | 642 | 660 | 679 |
| 5 | Standover | 748 | 783 | 816 | 849 |
| 6 | HT Angle | 67 | 67 | 67 | 67 |
| 7 | HT Length | 90 | 110 | 130 | 150 |
| 8 | ST Angle | 75 | 75 | 75 | 75 |
| 9 | CS Length | 440-456 | 440-456 | 440-456 | 440-456 |
| 10 | BB Drop | 75 | 75 | 75 | 75 |
| 11 | BB Height | 305 | 305 | 305 | 305 |
| 12 | Wheelbase | 1099-1215 | 1127-1143 | 1160-1176 | 1203-1219 |
| 13 | Front Center | 670 | 697 | 730 | 773 |
| 14 | Fork Length | 511 | 511 | 511 | 511 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
