El Kahuna
Not finding what you want here?
Contact your local Kona Dealer.
Looking for more Technical Information?
Click Here

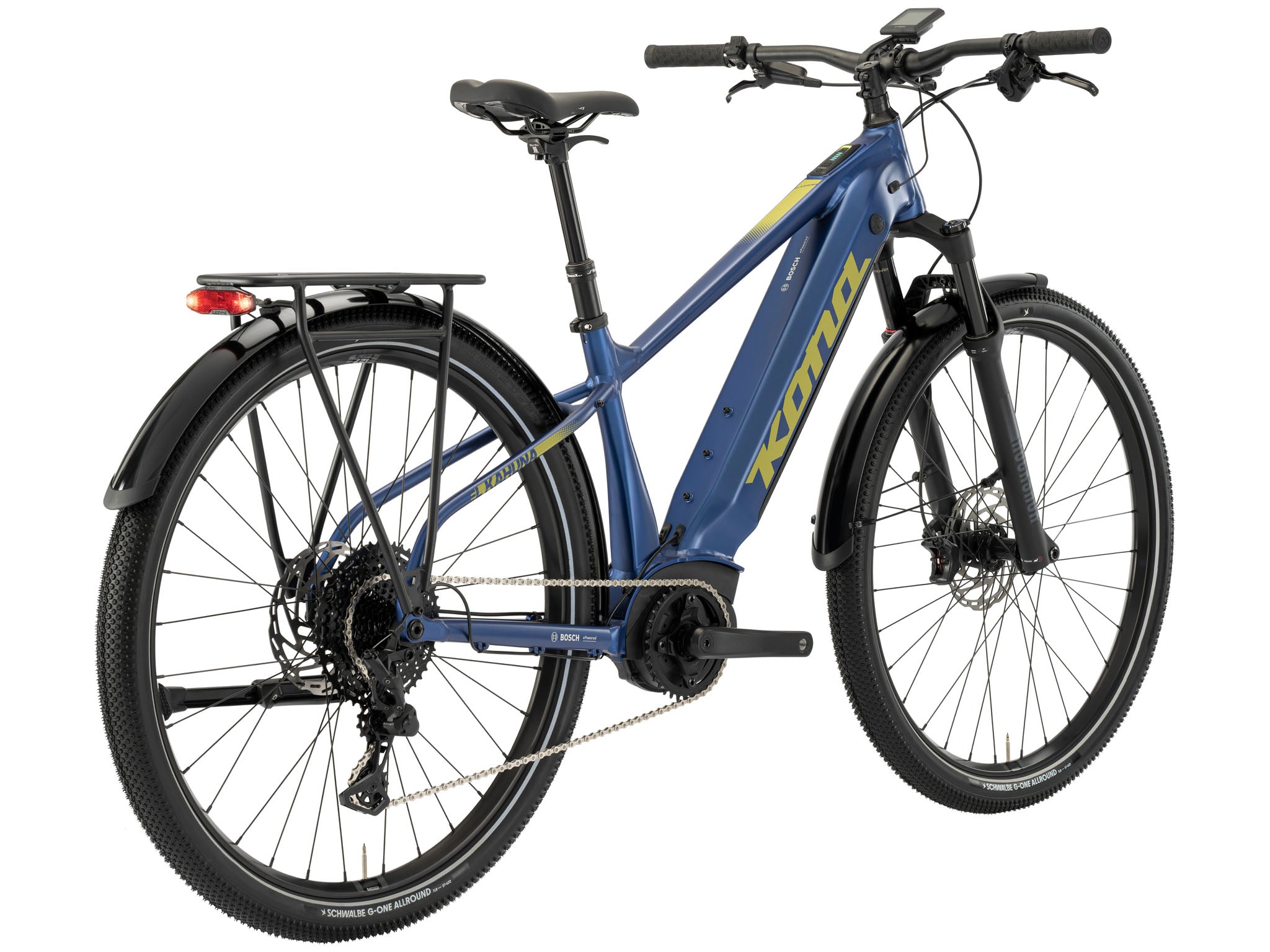

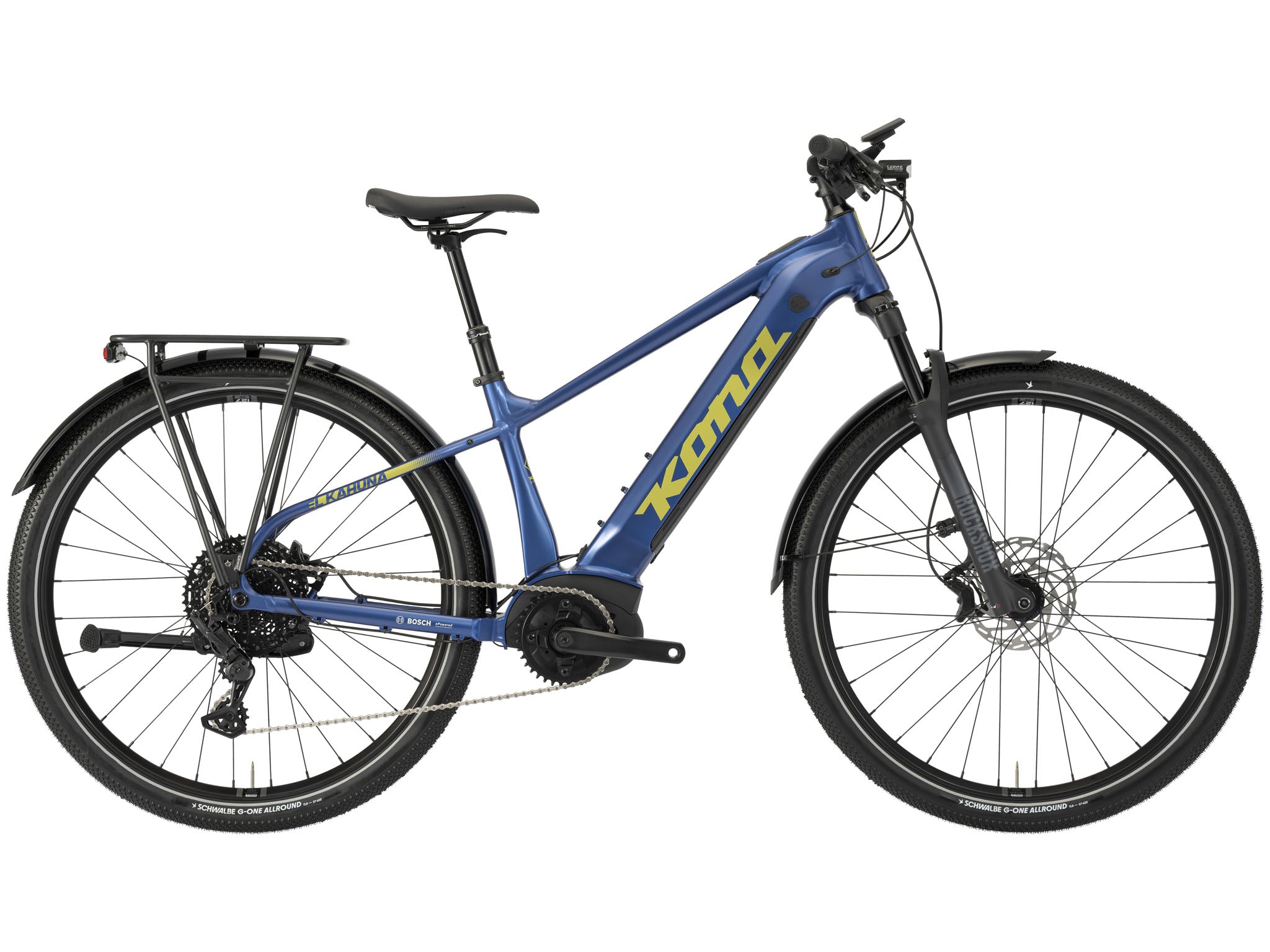

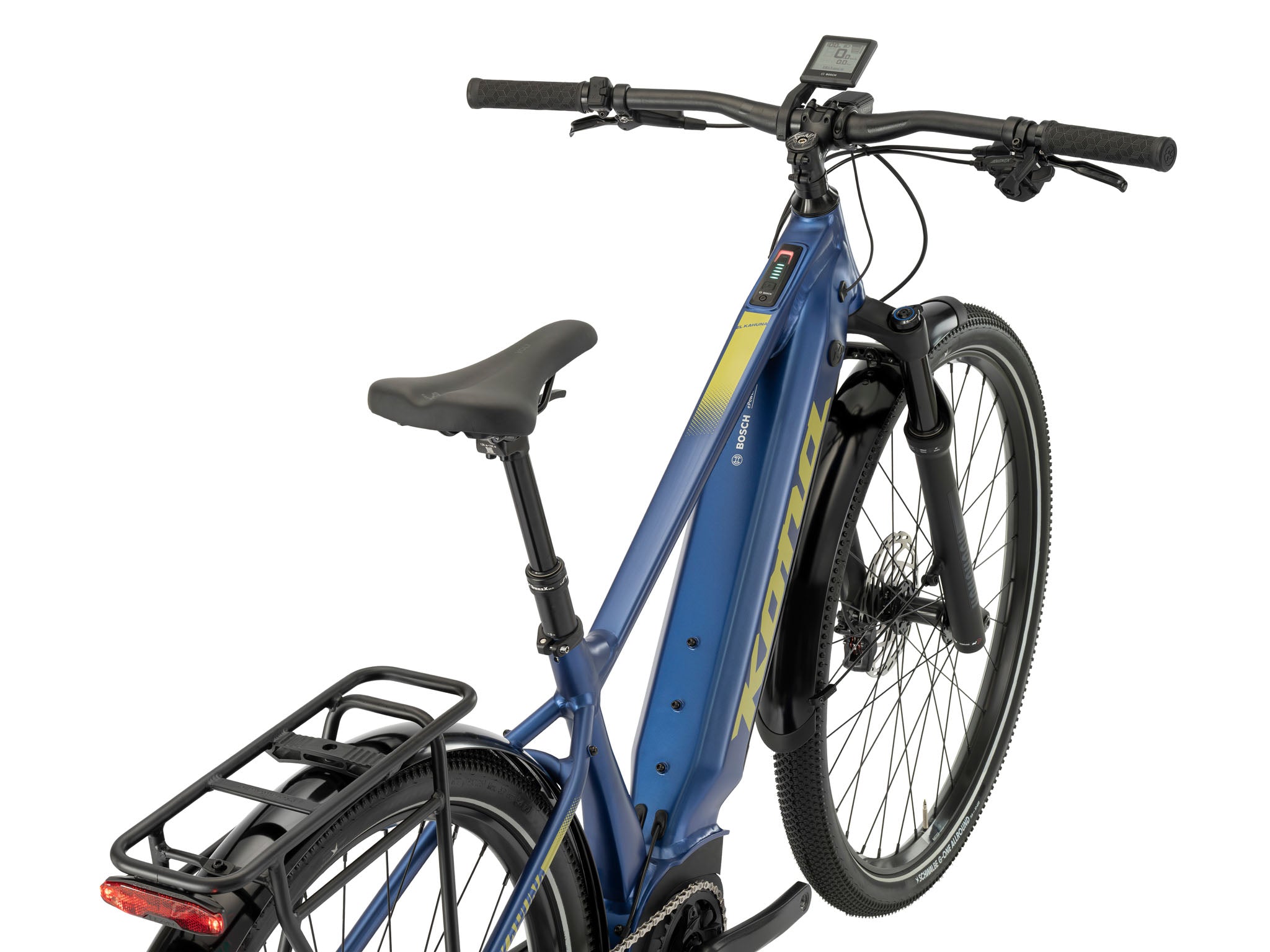

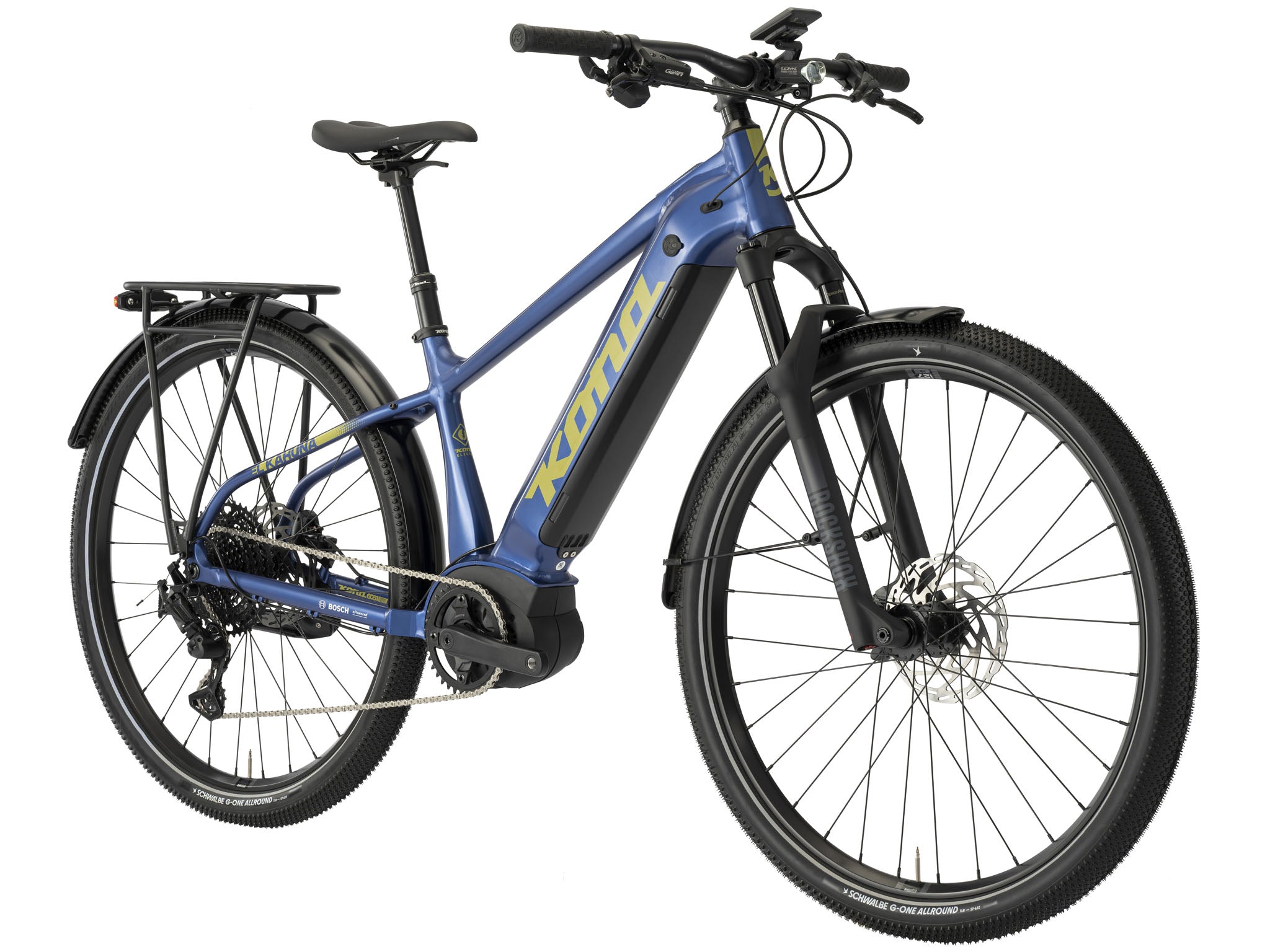

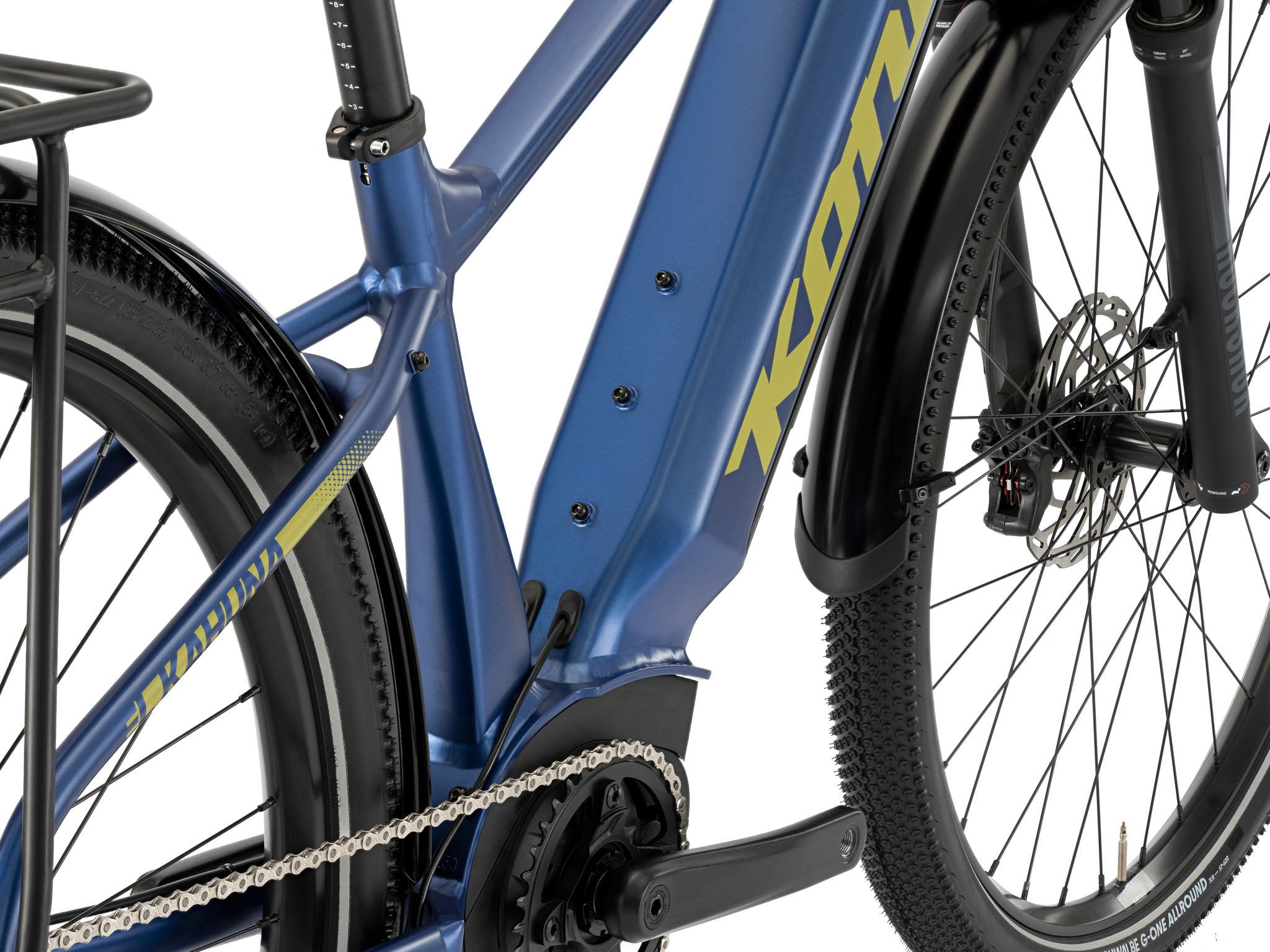

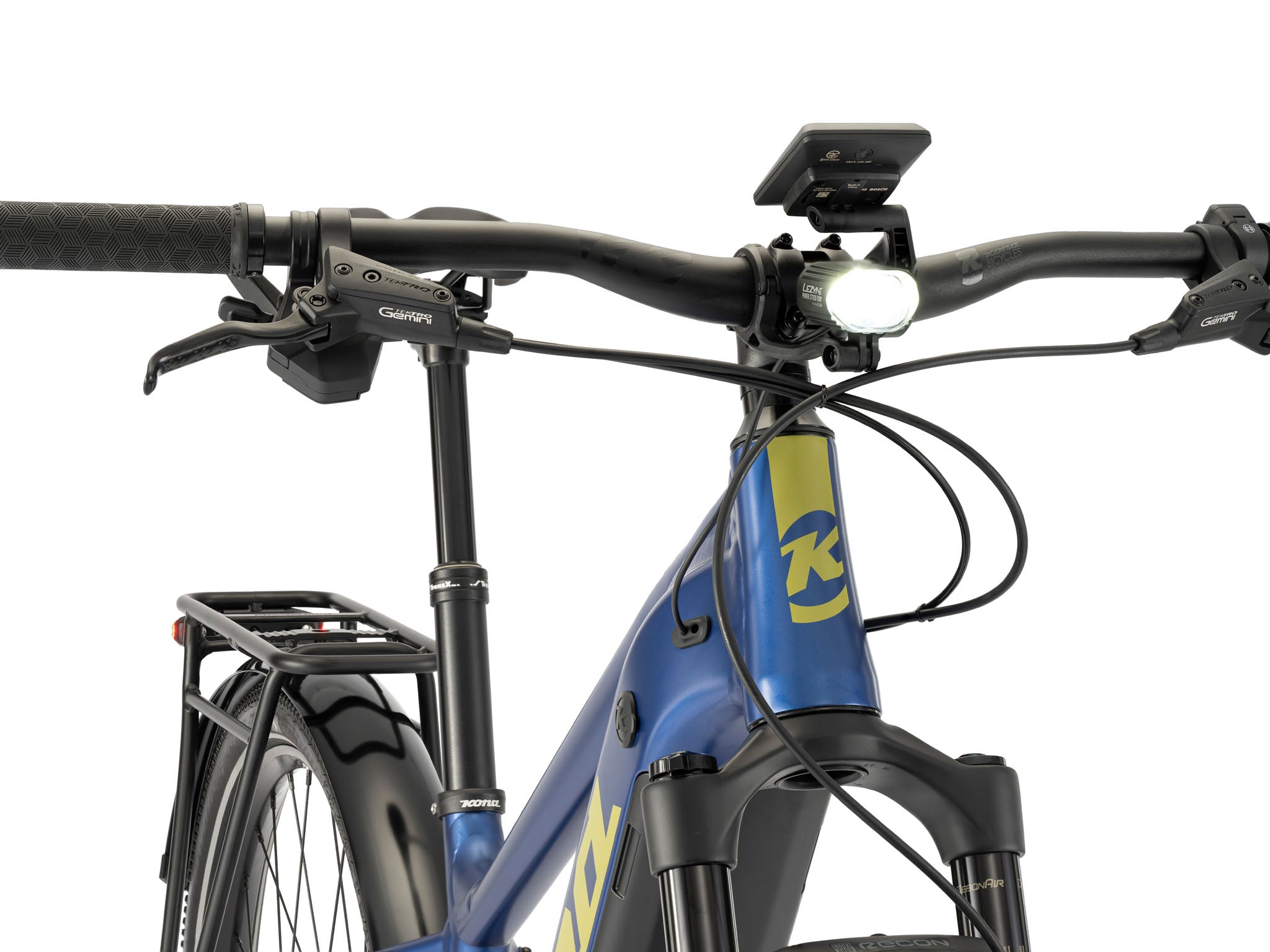

The El Kahuna is your go-anywhere, do-everything, multi-purpose hardtail—with a quiet boost. We’ve updated our best-selling e-MTB with the smooth, responsive Bosch Performance Line motor, delivering confidence on climbs and calm on commutes. An internal 625Wh battery keeps the lines clean, while a 100mm fork and 29” wheels roll easily between campgrounds, gravel, and everyday errands. Whether you’re chasing bike paths or hauling groceries, the El Kahuna is the perfect all-rounder.
SPECS & GEOMETRY
SPECIFICATIONS

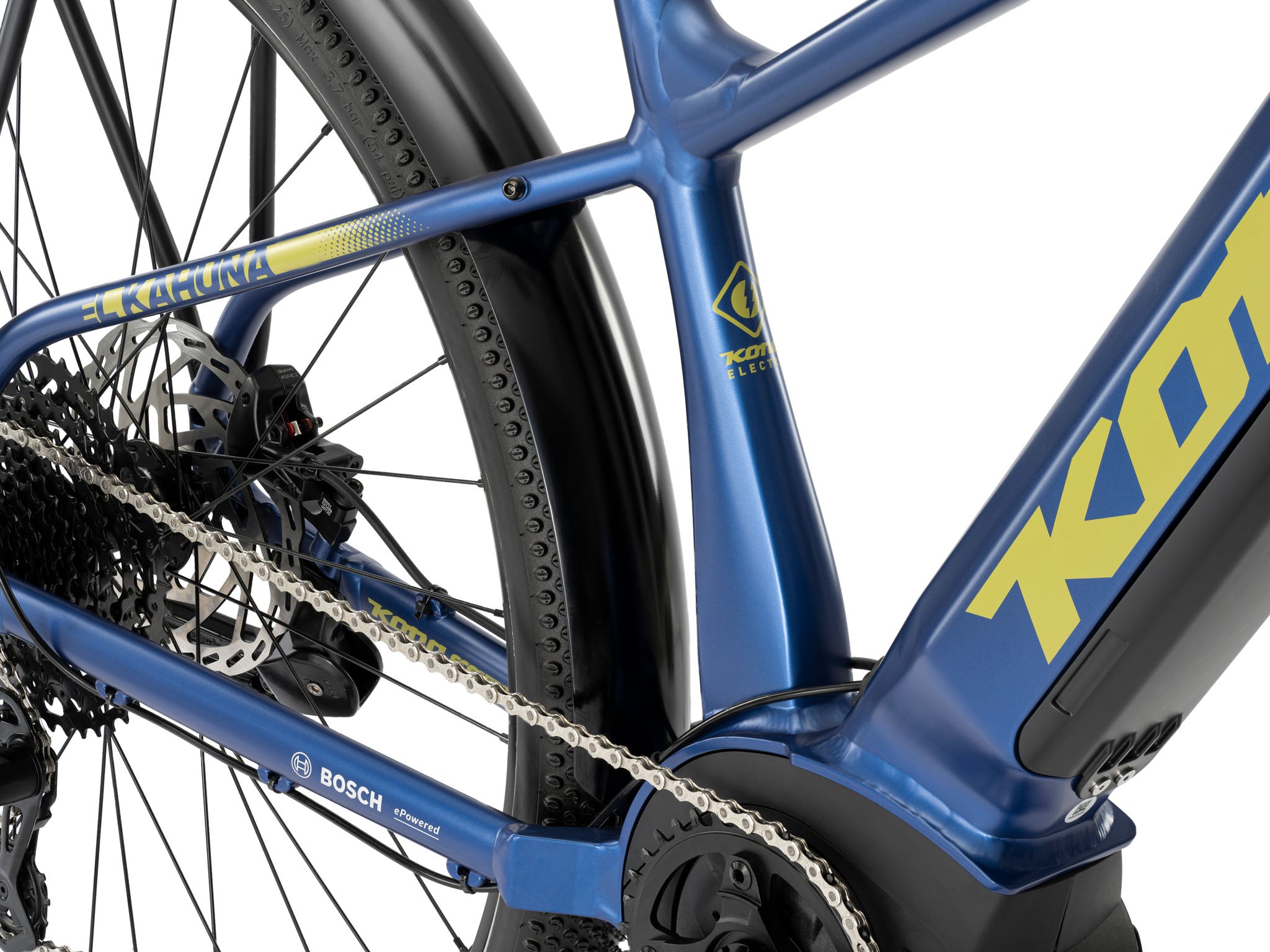

| FRAME | Kona 6061 Aluminum Butted |
| SIZES | S, M, L, XL |
| REAR SHOCK | n/a |
| FORK | RockShox Recon Gold 100mm Debonair |
| CRANKSET | Prowheel 165mm 36t 4-bolt 104mm |
| BOTTOM BRACKET | n/a |
| PEDALS | n/a |
| CHAIN | KMC 10 spd |
| CASSETTE | Microshift Advent X 11-48t 10spd HG |
| CHAINGUIDE | n/a |
| FRONT DERAILLEUR | n/a |
| REAR DERAILLEUR | Microshift Advent X |
| SHIFTER | Microshift Advent X |
| BRAKE CALIPERS | Tektro Gemini M530 4-piston |
| FRONT BRAKE ROTOR | Tektro 180mm 6B 2.3mm |
| REAR BRAKE ROTOR | Tektro 180mm 6B 2.3mm |
| BRAKE LEVERS | Tektro Gemini M530 |
| HEADSET | Feimin ZS44/ZS56 |
| HANDLEBAR | Kona XC/BC Back 9º / Up 5º / Rise 22mm / Width 750mm |
| STEM | Kona XC 31.8mm / Rise 6º / Length: S-M 50mm / L-XL 60mm |
| SEATPOST | TranzX Dropper 31.6mm / Travel: S 100mm / M 120mm / L-XL 150mm |
| SEAT CLAMP | Kona Clamp 34.9mm |
| GRIPS | Kona Key Grip Lock-on |
| SADDLE | WTB Volt Medium |
| FRONT HUB | Formula 15x110mm |
| REAR HUB | Formula 12x148mm HG |
| SPOKES | Stainless 2.0mm Black |
| RIMS | WTB KOM Team i27 TCS |
| FRONT TIRE | Schwalbe G-One ALLROUND TLE 29x2.25" |
| REAR TIRE | Schwalbe G-One ALLROUND TLE 29x2.25" |

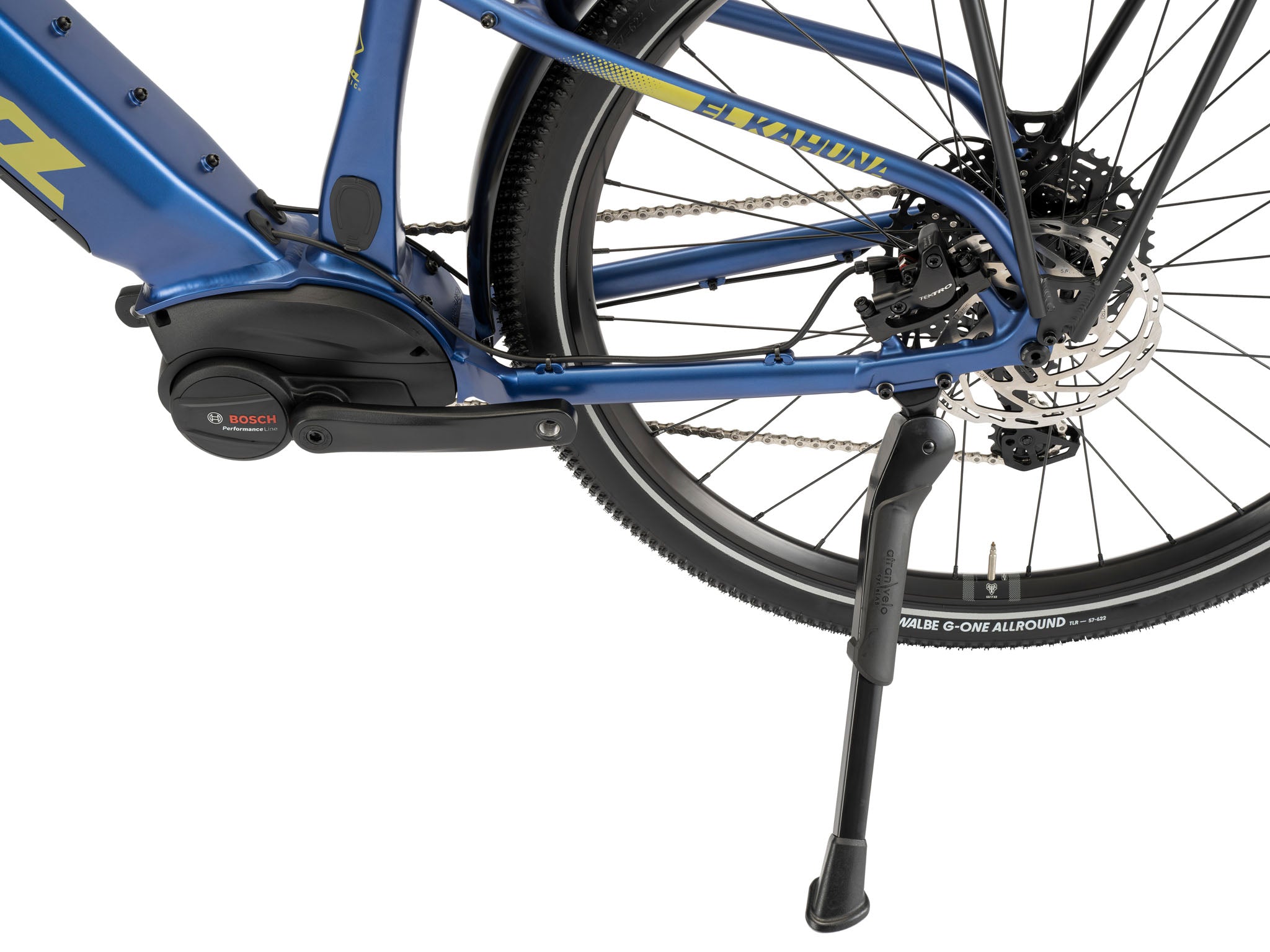

| DRIVE UNIT | Bosch Performance Line Sport 28mph |
| BATTERY | Bosch PowerTube 625Wh |

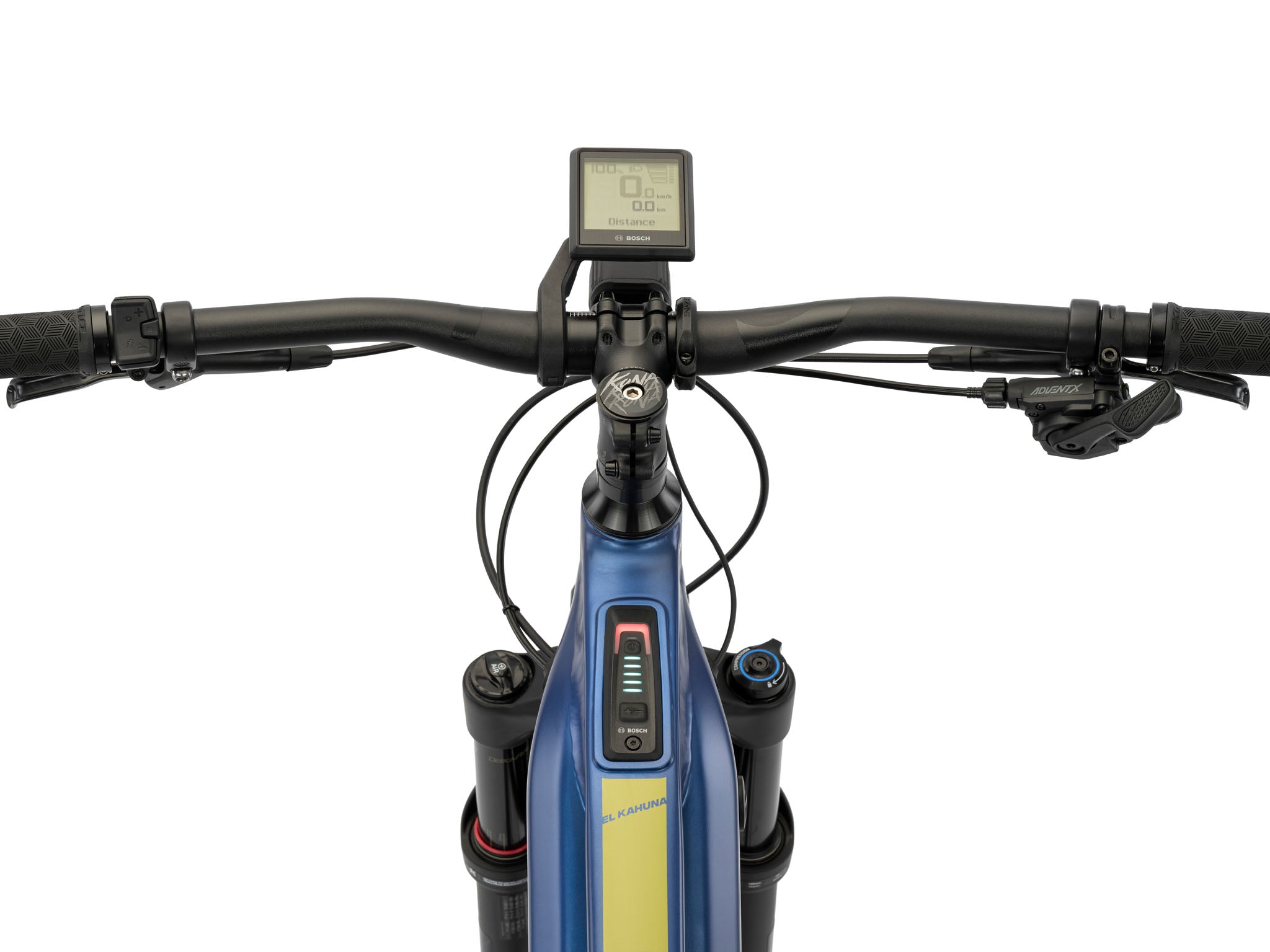

| DISPLAY | Bosch Intuvia 100 |
| CHARGER | Bosch 2A (110V) |
| BATTERY LOCK | Abus T82 |
| PAINT COLOR | Satin Metallic Lazuli w/ Olive Oil Decals |

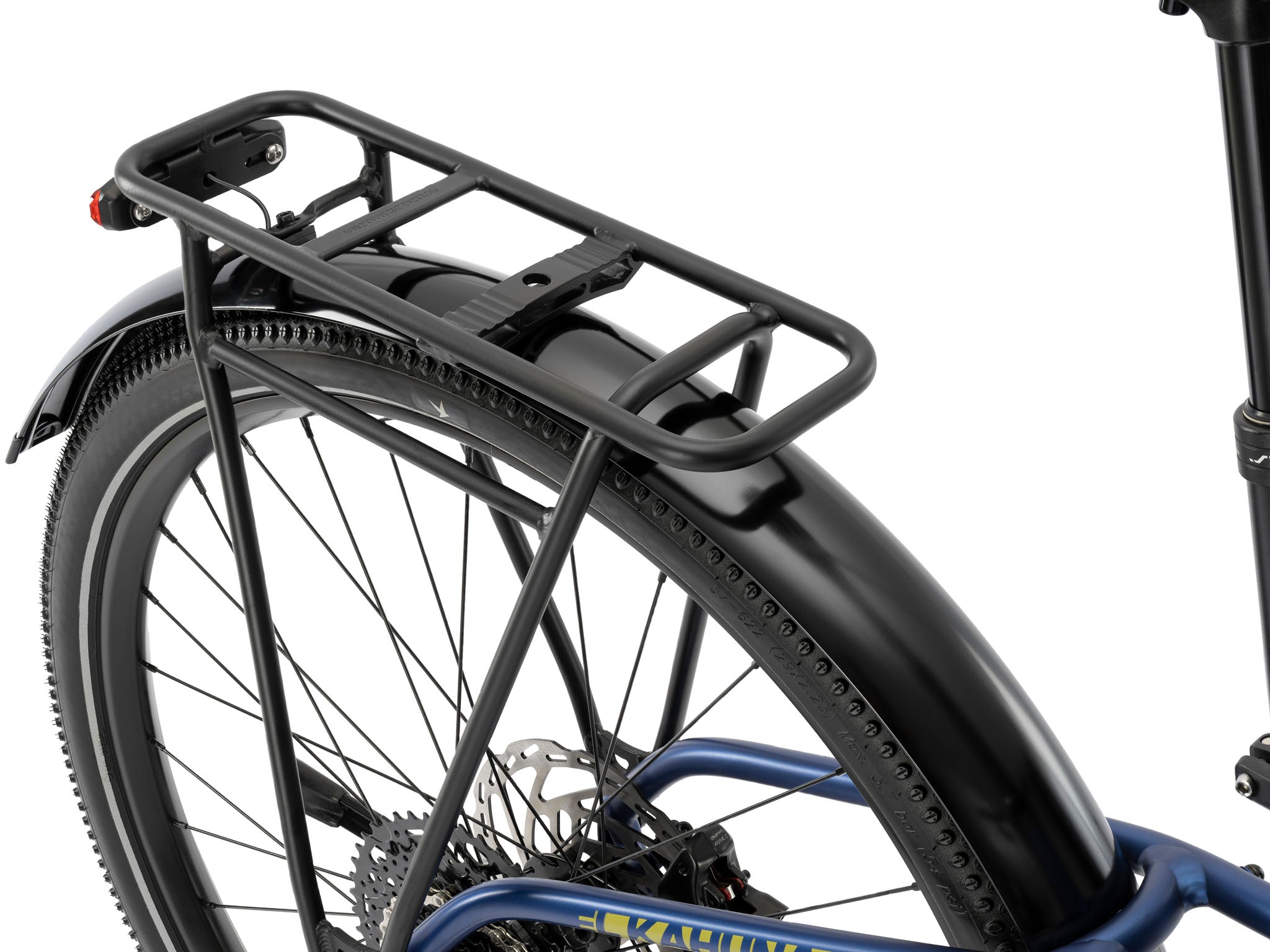

| EXTRAS | Rear Rack / Fenders / Front and Rear Lezyne Lights / Kickstand |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 370 | 420 | 470 | 530 |
| 2 | TT Length | 588 | 613 | 640 | 672 |
| 3 | Reach | 404 | 428 | 453 | 484 |
| 4 | Stack | 642 | 646 | 651 | 656 |
| 5 | Standover | 742 | 750 | 760 | 773 |
| 6 | HT Angle | 69 | 69 | 69 | 69 |
| 7 | HT Length | 125 | 130 | 135 | 140 |
| 8 | ST Angle | 74 | 74 | 74 | 74 |
| 9 | CS Length | 495 | 495 | 495 | 495 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 315 | 315 | 315 | 315 |
| 12 | Wheelbase | 1166 | 1192 | 1218 | 1251 |
| 13 | Front Center | 677 | 703 | 730 | 762 |
| 14 | Fork Length | 512 | 512 | 512 | 512 |
| 15 | Fork Offset | 44 | 44 | 44 | 44 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Call2Recycle FAQ
Does Kona participate in any ebike battery recycling programs?
Yep! Kona has partnered with Call2Recycle to take care of all battery recycling at the end of their life.
Who is Call2Recycle?
Call2Recycle is the country’s largest consumer battery stewardship and recycling program, with a network of thousands of public collection sites. Founded in the mid-1990s as a voluntary, industry-run initiative to keep the heavy metals from rechargeable batteries out of the solid waste stream.
Are there any fees associated with this service?
Yes, the structure is set up so that the eco fee is passed along the chain to the end consumer. These fees ensure that the program runs effectively and that all collection sites can be outfitted with the appropriate safety and recycling materials. Here’s how it works:
- As the importer of record, Kona will remit the fees to C2R. It’s $15 per electric bike or aftermarket battery.
- Kona will be passing the eco fee to the dealer when they are shipped any ebikes or batteries.
- The consumer buying the bike or battery will pay the dealer the fee.
- This fee ensures that when your battery has reached the end of its life that it will be safely recycled and there will be no additional fee.
Do I need to pay a fee when the battery is ready to be recycled too?
Nope. The fee you paid at the time of purchase is the only fee you’ll ever need to pay to recycle your battery.
Will my dealer take the battery when I can no longer use it?
This will vary from dealer to dealer as it’s up to them if they want to sign up to be a battery collection site. You can find a participating dealer near you on the call2recycle locator.
I’m a dealer and want to become a collection site. How do I sign up?
Great! The more collection sites the better! It costs nothing to become a collection site. Find out more info here. Once registered, you will complete a short training and have access to recycling and safety materials
I’m a consumer and my local dealer isn’t a collection site. Where can I recycle my batteries?
We will do our best to encourage our dealer network to participate in the program, but if they haven’t had time or choose not to participate, please use the locator to find your nearest location.
Why should I recycle my batteries?
Ensuring your e-bike battery is disposed of in the proper waste stream is an important part of responsible e-bike ownership. Metals in both batteries and cellphones can be recycled and used in new products such as new batteries, stainless steel alloy and cement additives. Recycling reduces the need to mine for virgin material to manufacture these products. Additionally, Universal waste laws prohibit throwing lithium-ion batteries in the trash as they pose safety risks to people, property, and the natural environment. The Call2Recycle program ensures these products are safely and compliantly recycled through the proper channels.
