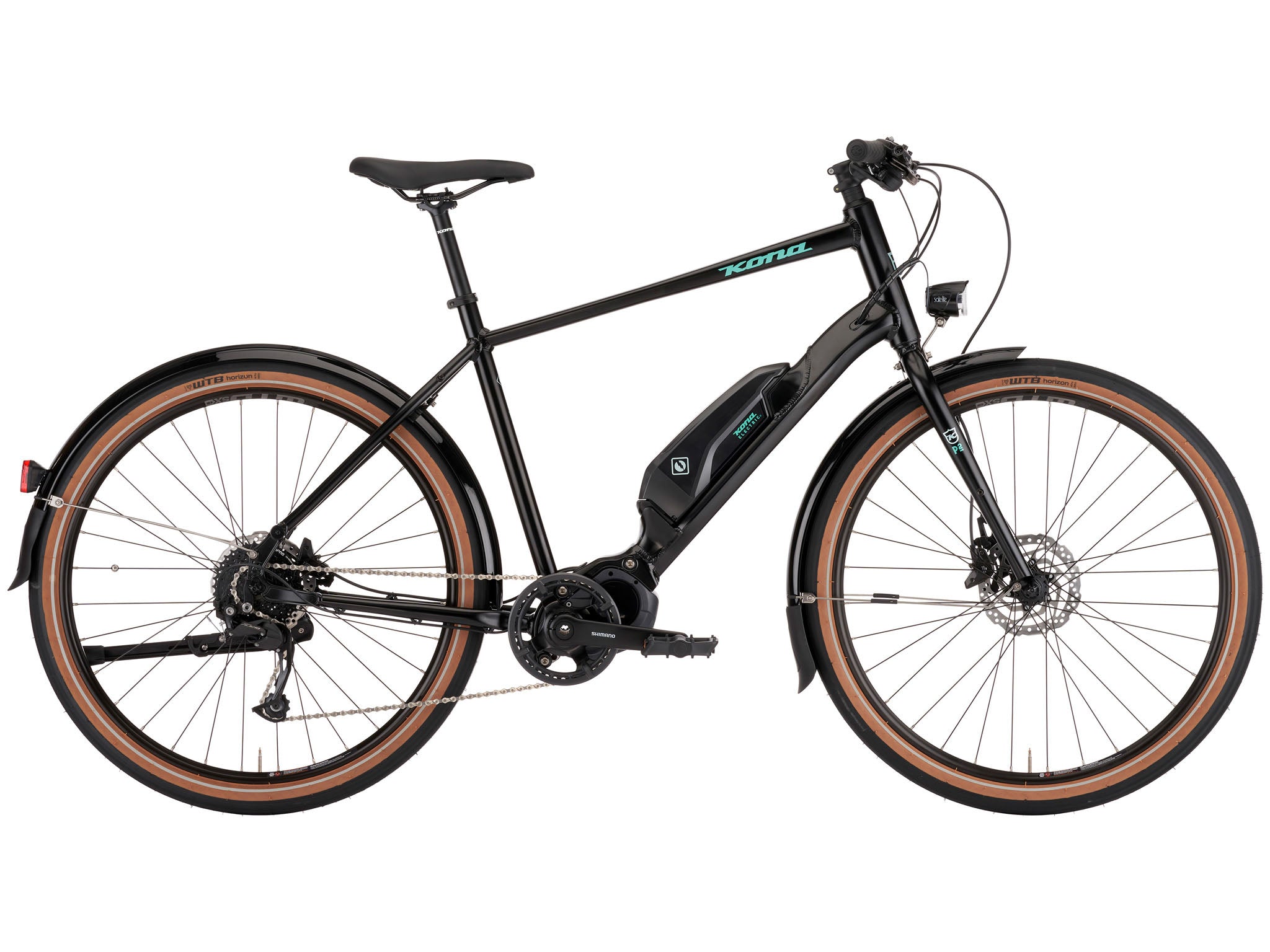

Dew-E
Not finding what you want here?
Contact your local Kona Dealer.
SPECS & GEOMETRY
SPECIFICATIONS
| Frame Material | Kona 6061 Aluminum Butted |
| Sizes | S, M, L, XL |
| Rear Shock | n/a |
| Fork | Kona Project Two Aluminum Disc |

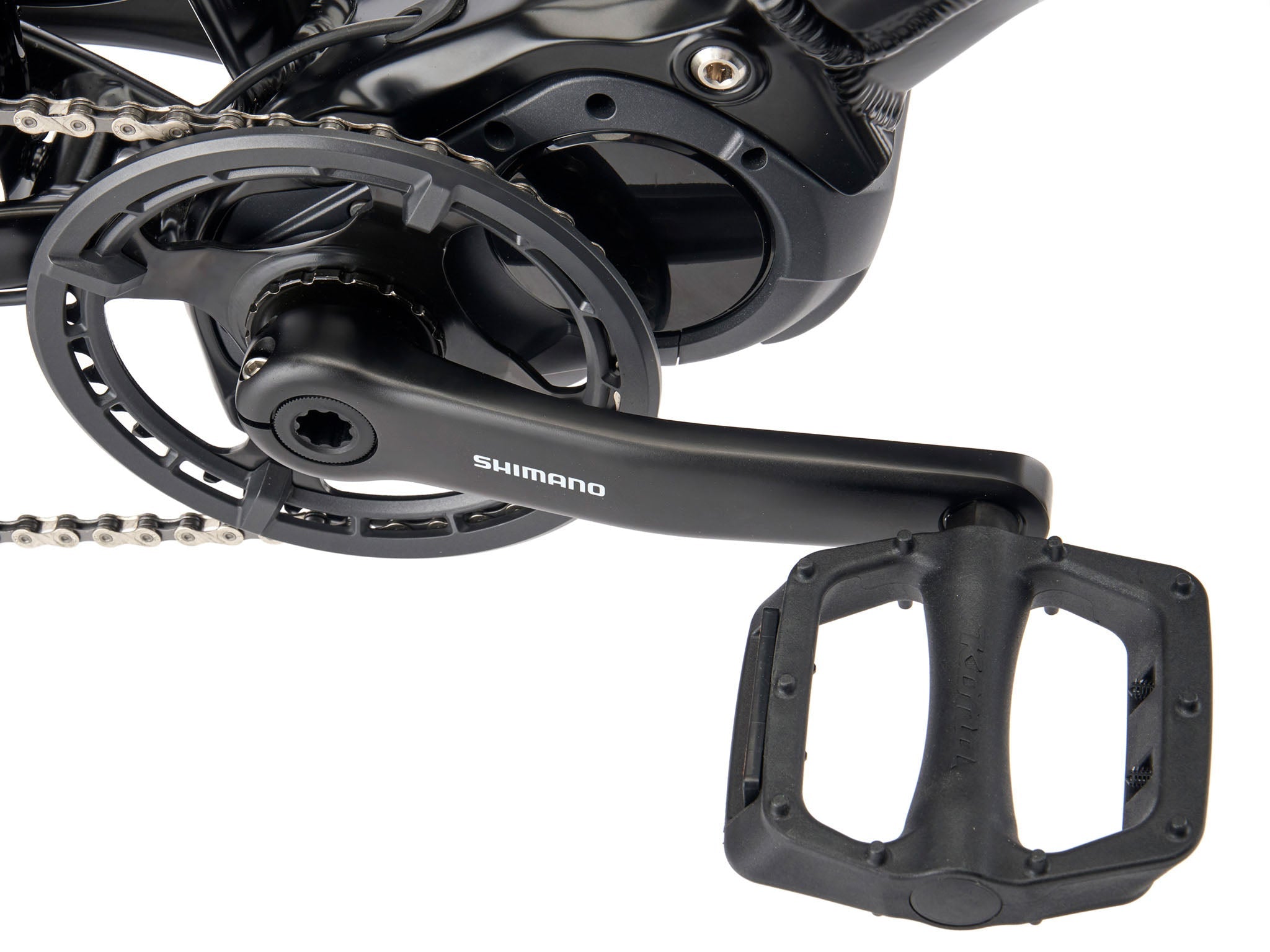

| Crankarms | Shimano E6100 |
| Chainrings | 38t |
| B/B | n/a |
| Pedals | Kona JS2 |
| Chain | KMC X9 |
| Cassette | Shimano Alivio 11-34t 9spd |
| Chainguide | Shimano E-Bike Chain Guard |
| F/D | n/a |

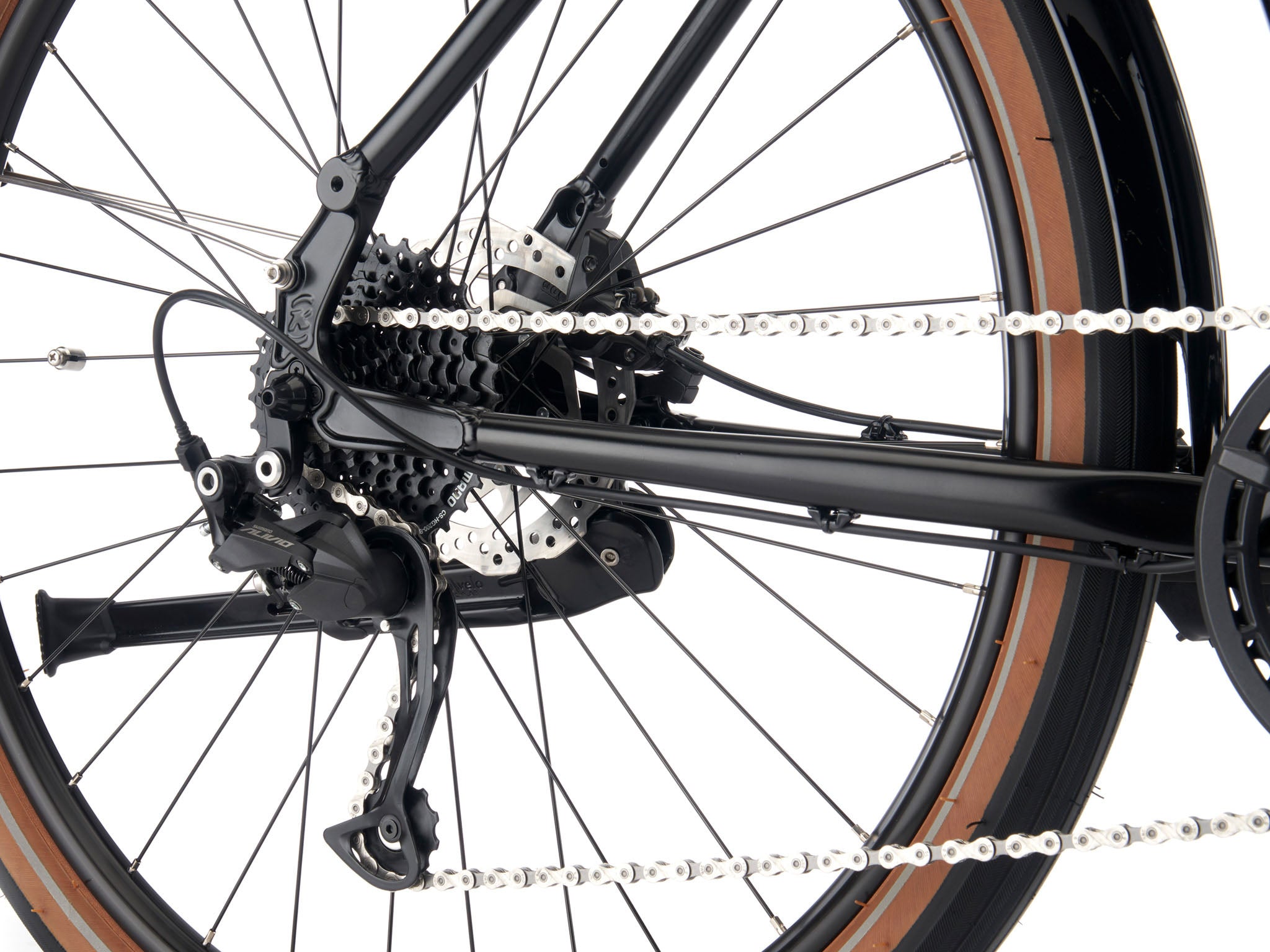

| R/D | Shimano Alivio |

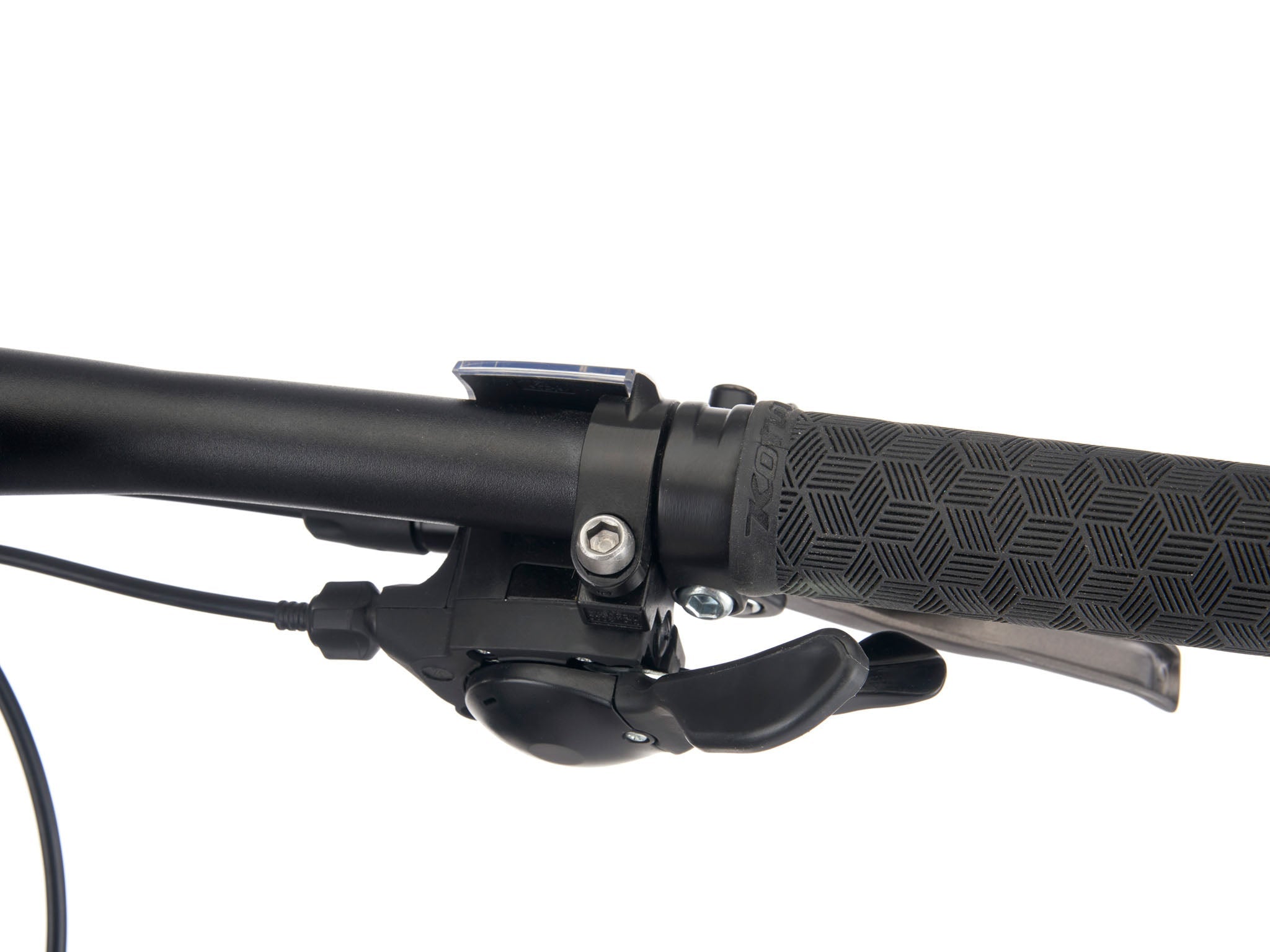

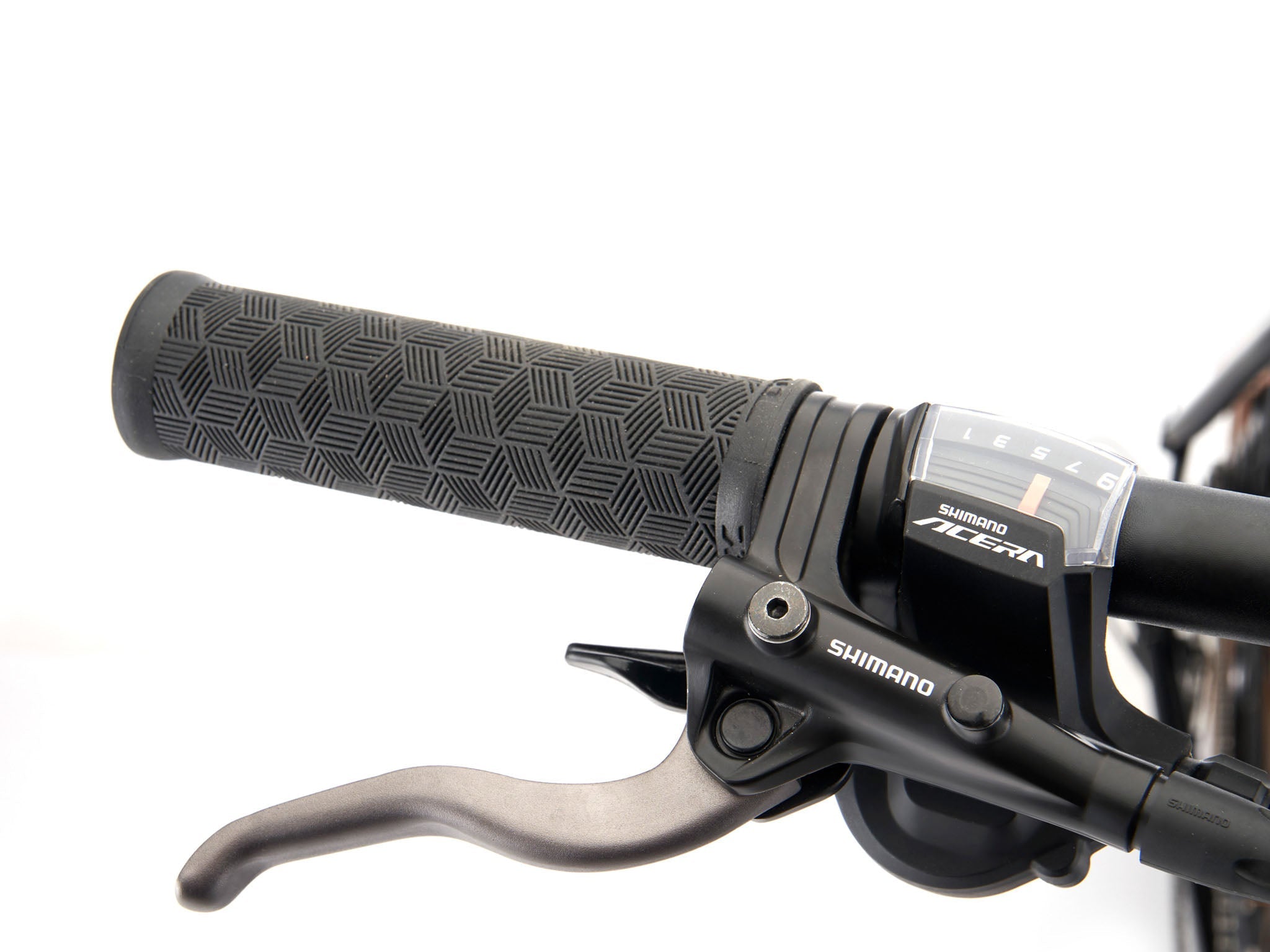

| Shifters | Shimano Acera |

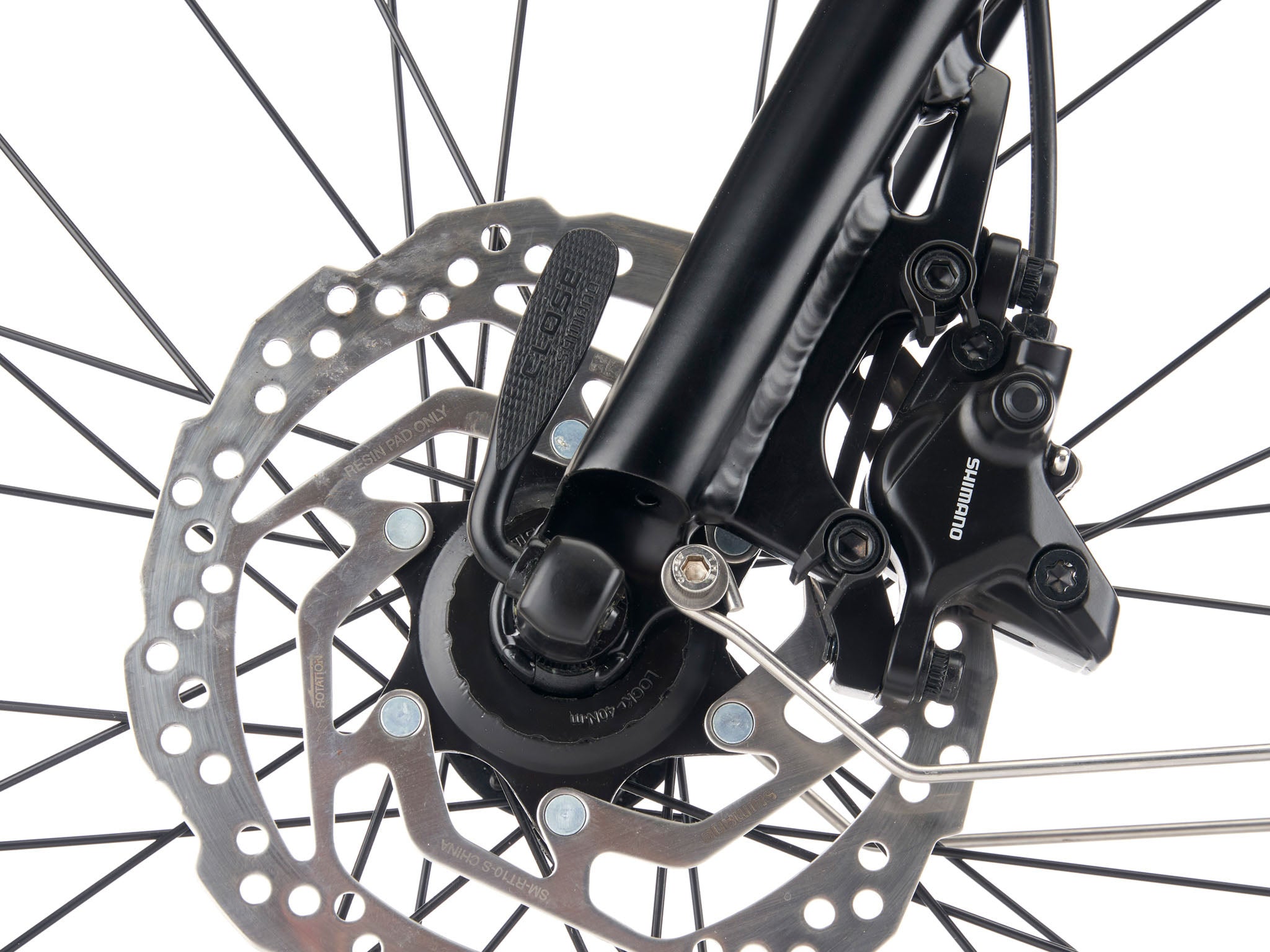

| Brake Calipers | Shimano MT410 |
| Front Brake Rotor | Shimano RT10 160mm (centerlock) |
| Rear Brake Rotor | Shimano RT10 160mm (centerlock) |
| Brake Levers | Shimano MT401 |
| Headset | Feimin H863 |

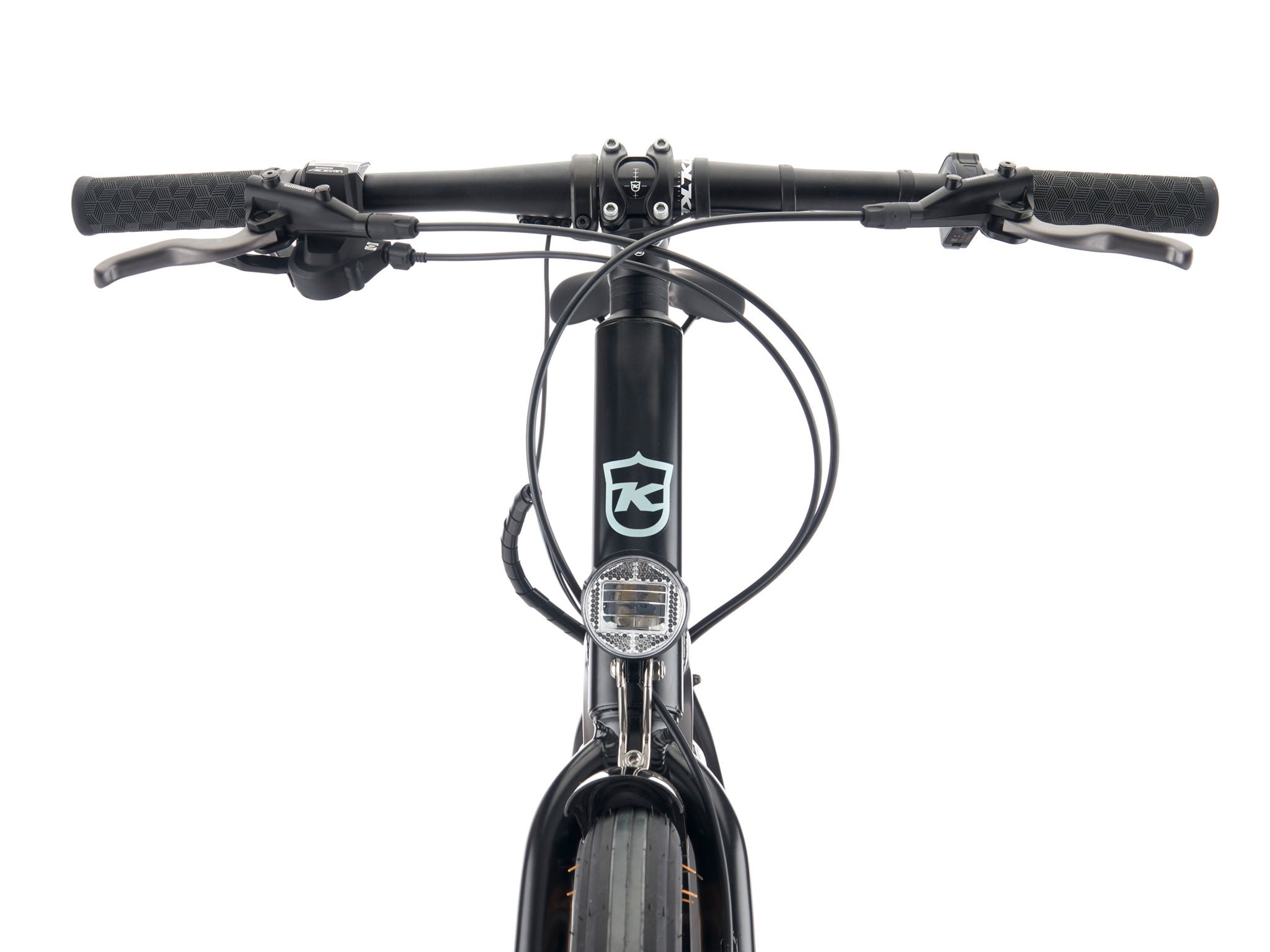

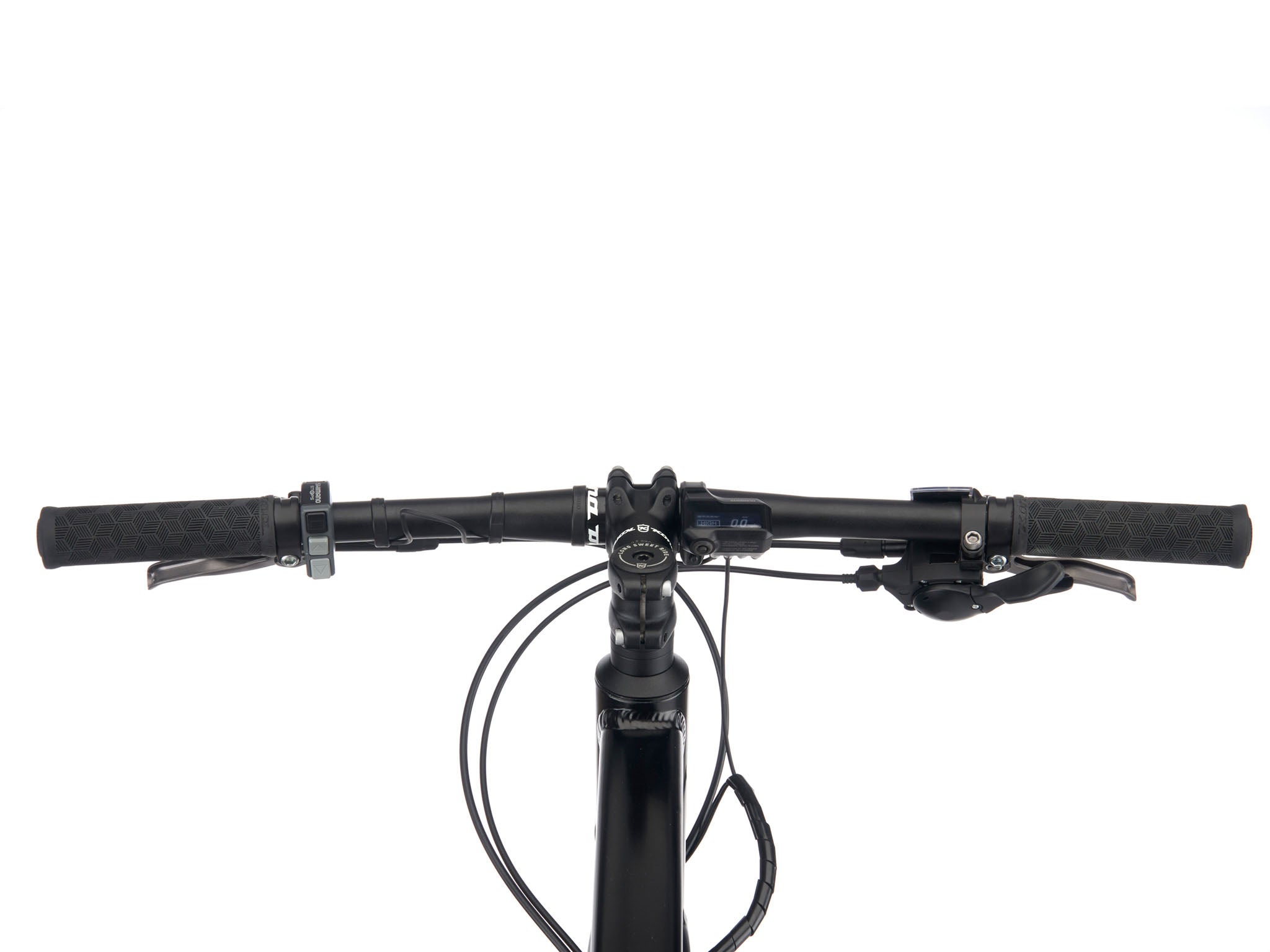

| Handlebar | Kona Aluminum Riser |
| Stem | Kona Control |
| Seatpost | Kona Commuter 27.2mm |
| Seat Clamp | Kona Clamp |
| Grips | Kona Key Grip Slip on |
| Saddle | Kona Comfort |
| Front Hub | Shimano Alivio 100x9mm |
| Rear Hub | Shimano Alivio 135x10mm |
| Spokes | Stainless 14g |
| Rims | WTB SX19 |
| Front Tire | WTB Horizon Comp Puncture Protect 650x47c |
| Rear Tire | WTB Horizon Comp Puncture Protect 650x47c |

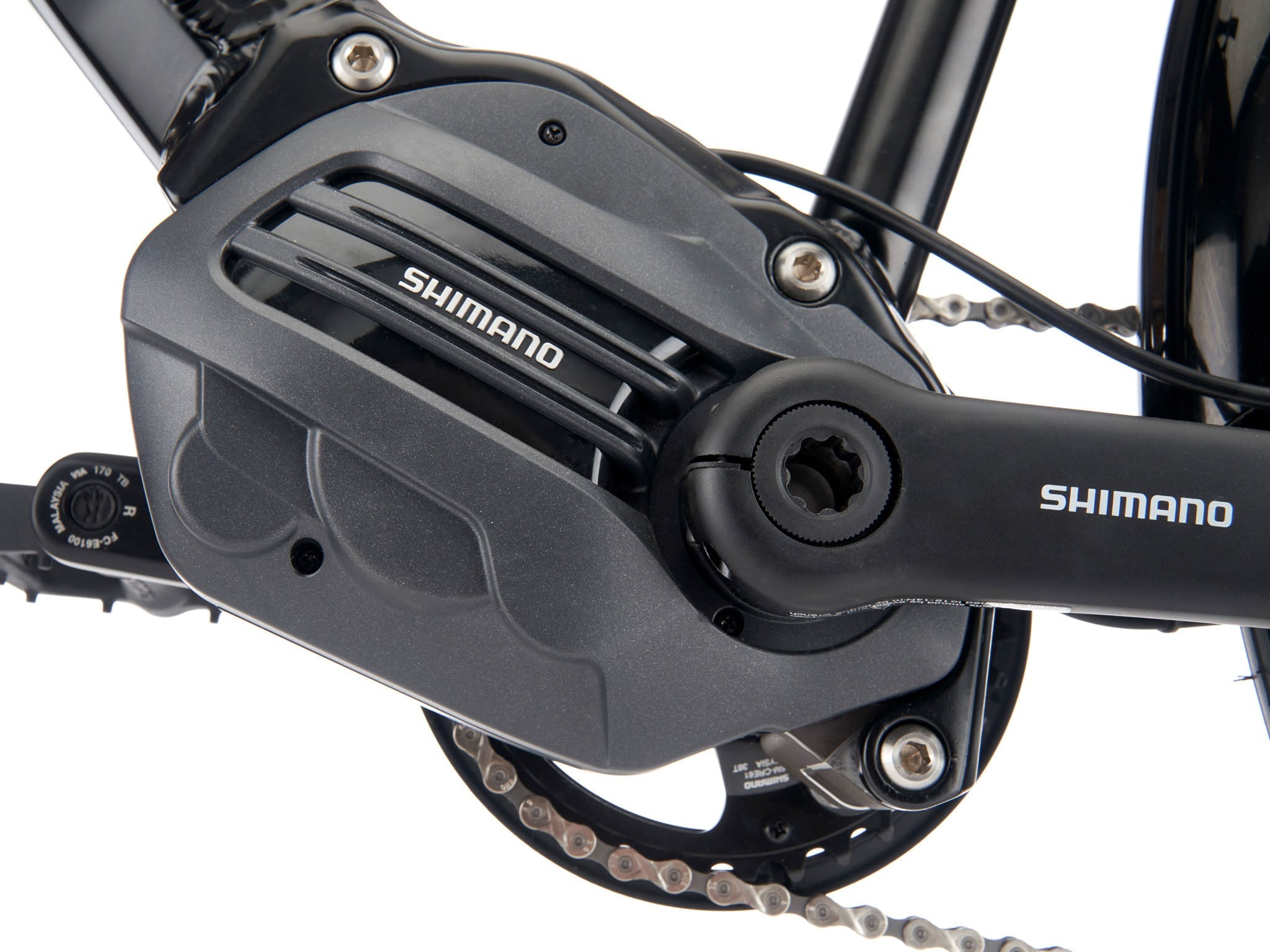

| DriveUnit | Shimano E6100 20MPH |
| Battery | Shimano 504Wh |

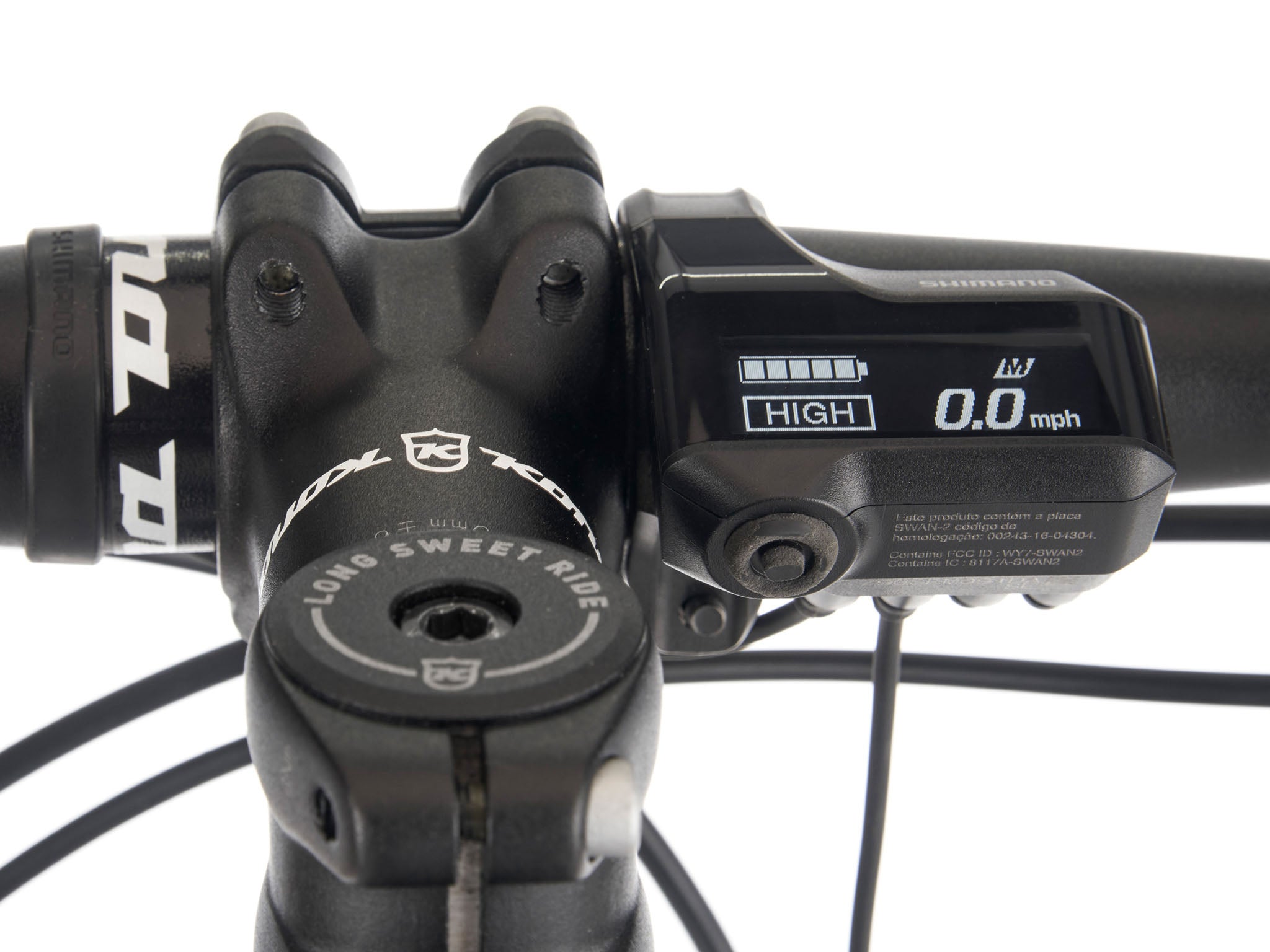

| Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
| BatteryLock | Abus |
| Paint Color | Satin Black w/ Metallic Mint & Metallic Silver Decals |
| Extras | Fenders, Front & Rear Light, Kickstand |
All Kona e-bikes have passed EN 15194 (EPAC) and ISO 4210 testing.
All specifications are subject to change without notice.
GEOMETRY
| Size | S | M | L | XL | |
| 1 | ST Length | 420 | 470 | 520 | 580 |
| 2 | TT Length | 548 | 594 | 633 | 683 |
| 3 | Reach | 398 | 423 | 439 | 465 |
| 4 | Stack | 558 | 596 | 634 | 671 |
| 5 | Standover | 692 | 736 | 782 | 832 |
| 6 | HT Angle | 70.0 | 70.0 | 70.0 | 70.0 |
| 7 | HT Length | 135 | 175 | 215 | 255 |
| 8 | ST Angle | 75.0 | 74.0 | 73.0 | 72.0 |
| 9 | CS Length | 460 | 460 | 460 | 460 |
| 10 | BB Drop | 60 | 60 | 60 | 60 |
| 11 | BB Height | 282 | 282 | 282 | 282 |
| 12 | Wheelbase | 1089 | 1127 | 1157 | 1197 |
| 13 | Front Center | 635 | 674 | 704 | 743 |
| 14 | Fork Length | 410 | 410 | 410 | 410 |
| 15 | Fork Offset | 50 | 50 | 50 | 50 |
Sizing & Selection
Choosing the right bike size is essential for comfort, performance, and the best riding experience. To help you select the correct size:
- Check Our Sizing and Fit Chart: Use the chart below to determine the size range that works best for your height and riding style.
- Get Personalized Recommendations: Not sure which size to choose? Fill out our Sizing Form, and Kona staff will provide suggestions to help you find the perfect fit.
GRAVEL / DROP BAR / URBAN
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
MTB FULL SUSPENSION / HARDTAIL / SPLICE
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | MTB/XC Trail/Fat | All Mountain/Enduro | Splice |
|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | XS | XS | Small |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | Small | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | Small, Medium | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | Medium | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | Medium, Large | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | Large, XL | Large, XL | Large, XL |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | Large, XL | Large, XL | Large, XL |
Electric Commuter
The world seems to have ushered in a new era of car-free living. With more cities closing down roads to cars, electric bikes are taking over the pavement all around the world. We offer several electric commuter bikes that will make you wonder why you ever needed a car for commuting in the first place.
Three models, three styles, one hell of a good time
The Dew-E DL is built for the commuter with discerning taste. Tubeless, puncture-resistant tires, front and rear Busch & Müller lights, front and rear fenders, and a 10-speed Shimano drivetrain provide a reliable ride in any conditions.
The Dew-E DL features a Shimano e6100 motor powered by a fully-integrated 504 WH battery.
The Dew-E DL has a Kona Rove Carbon fork with three bosses capable of carrying heavy loads.

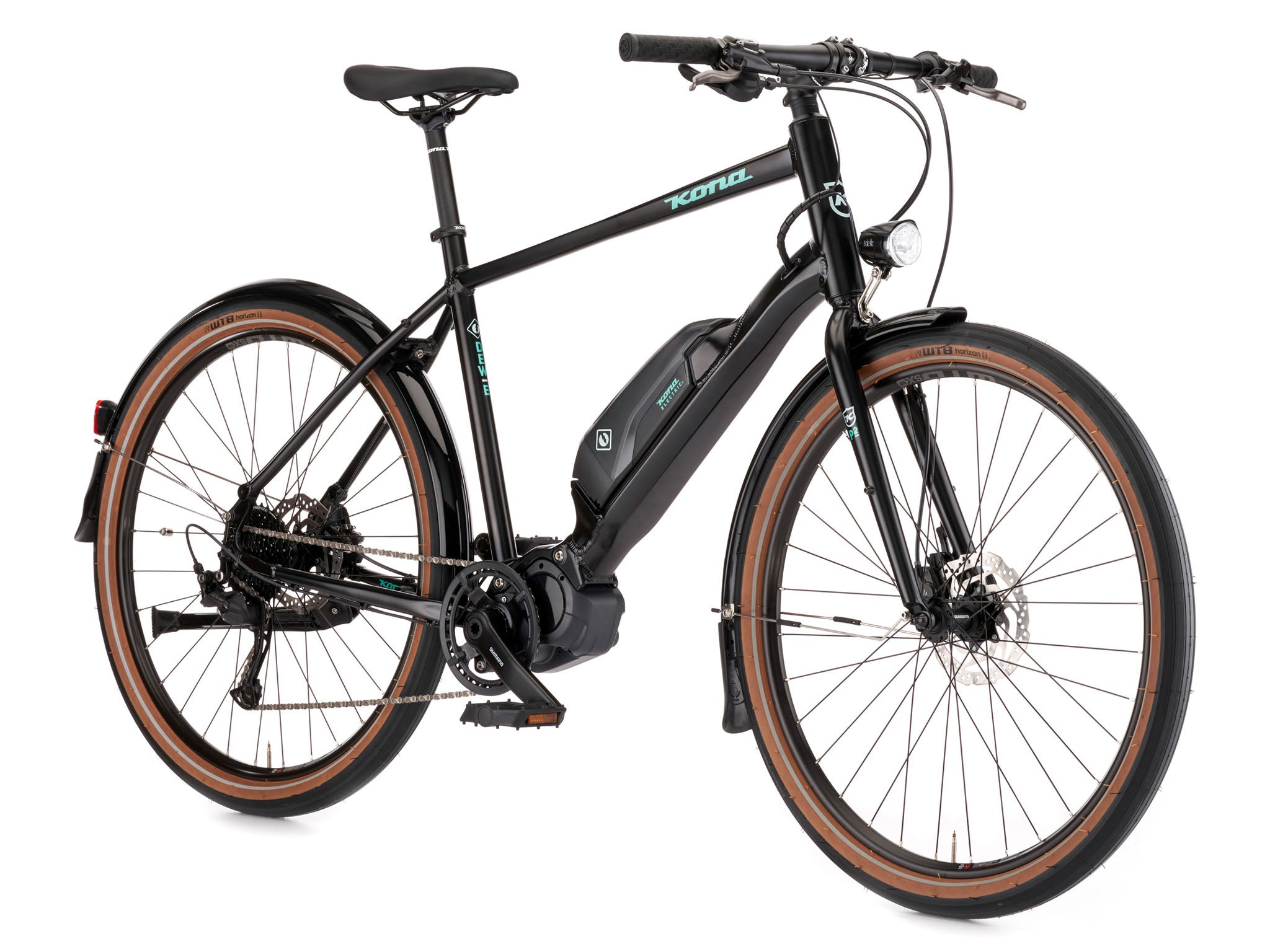

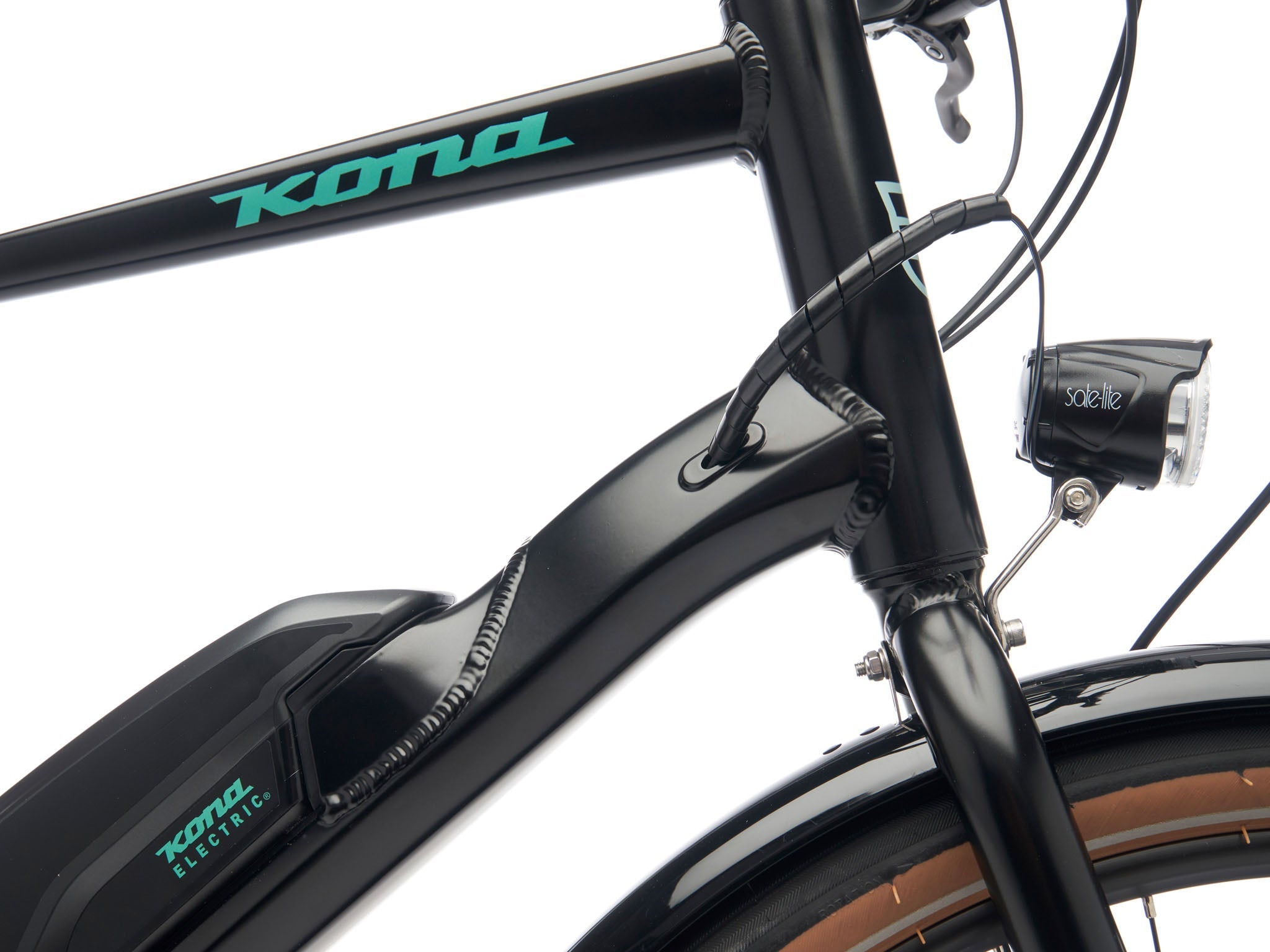

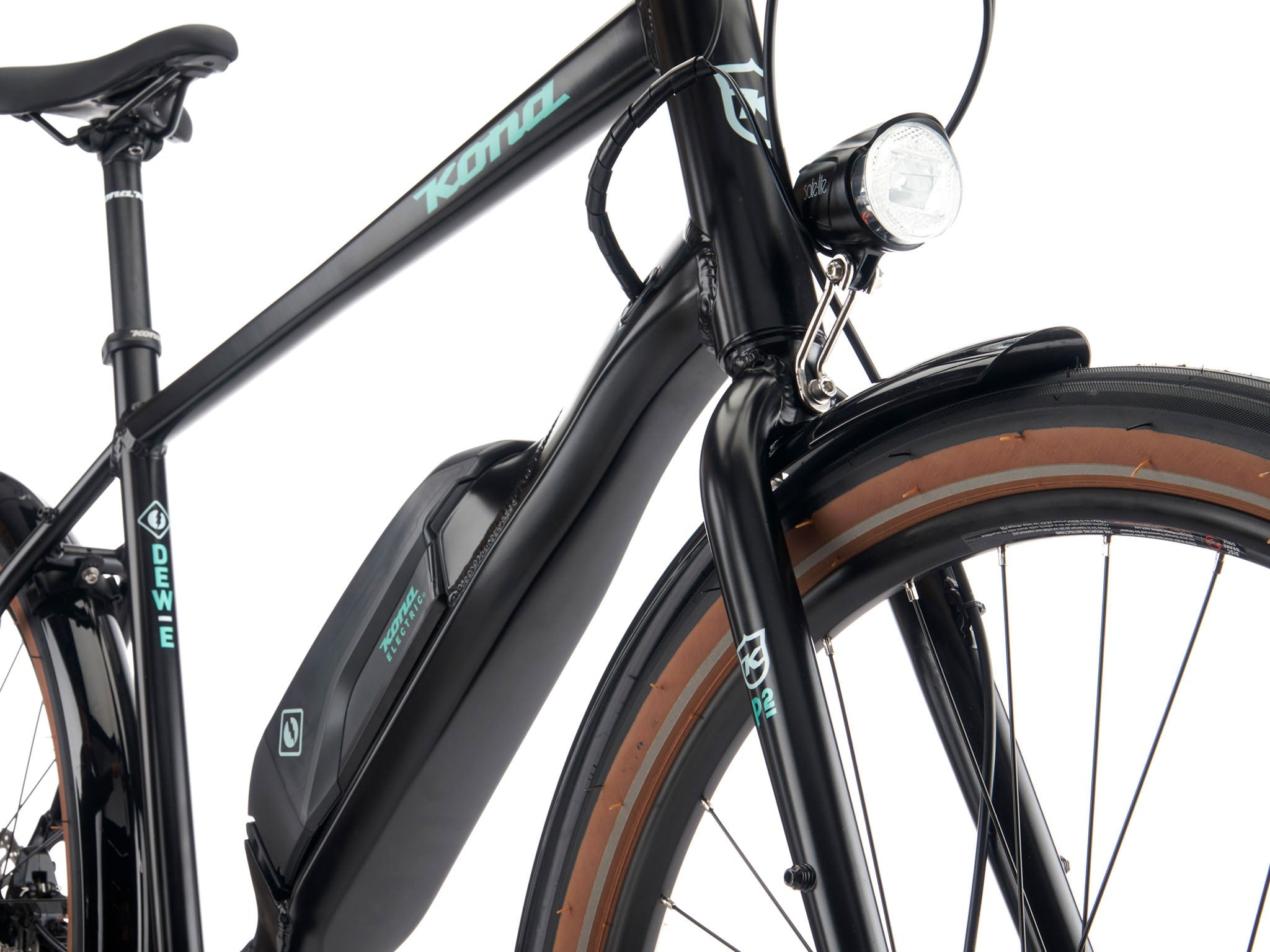

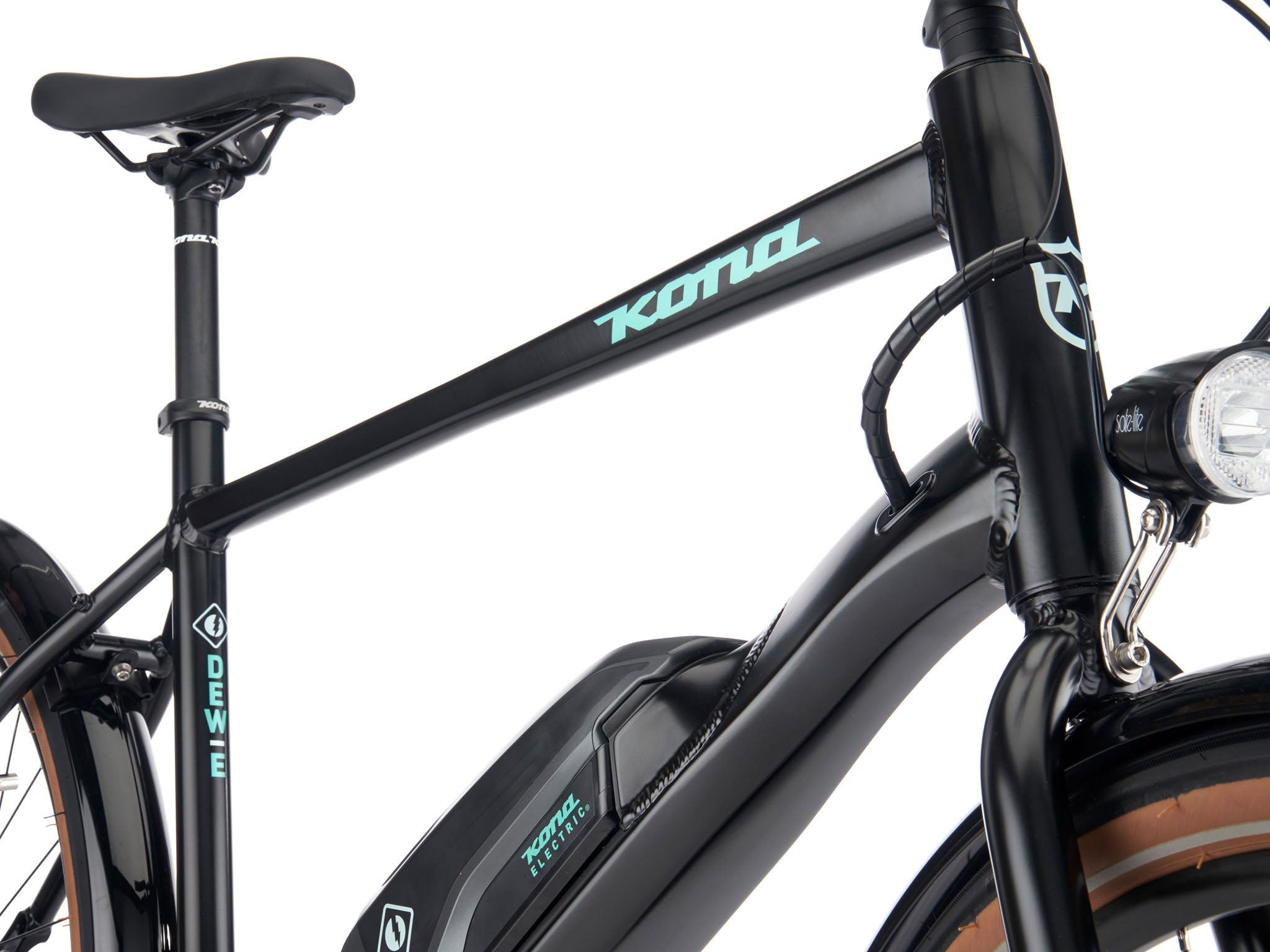

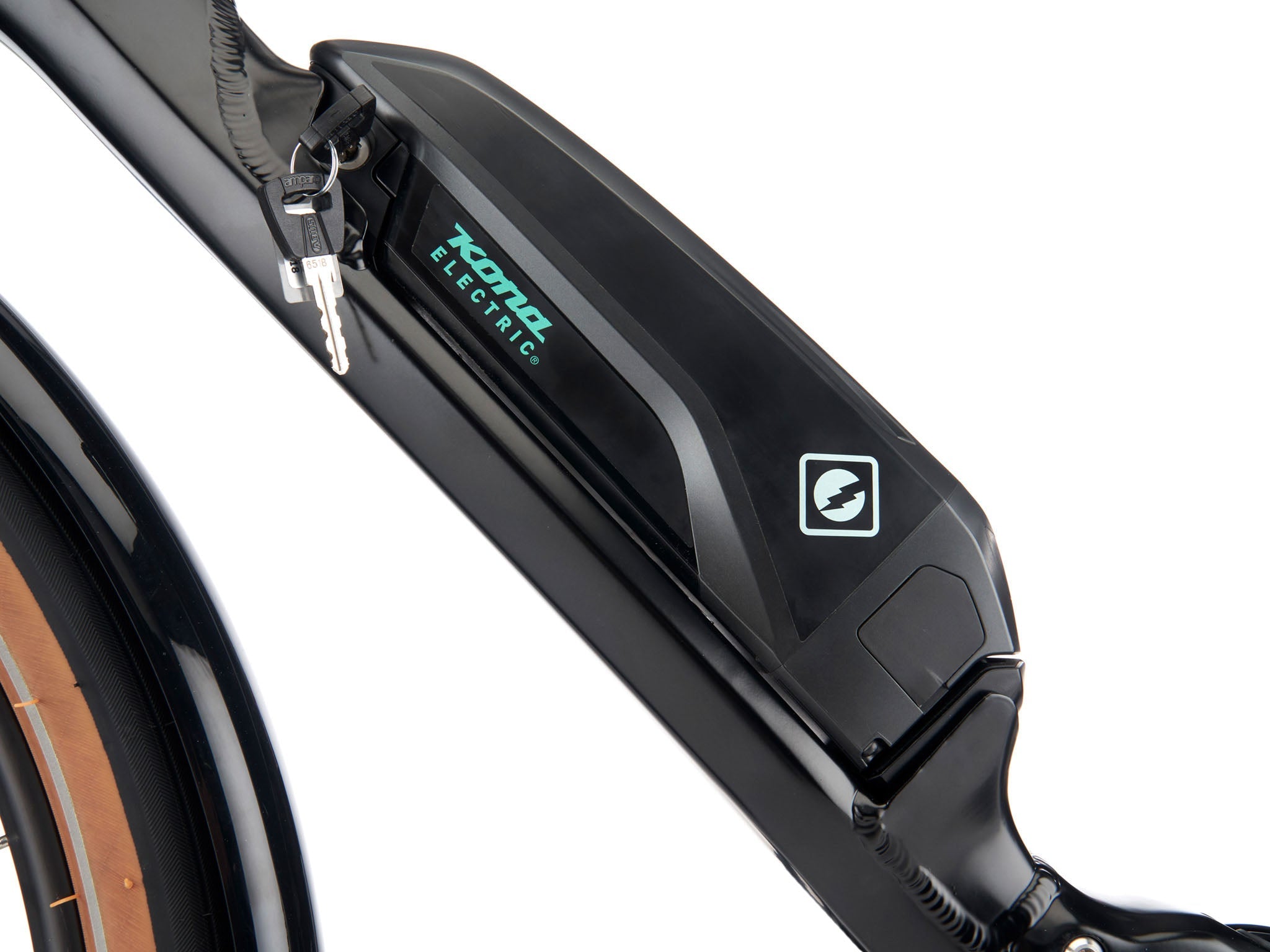

The Dew-E and Ecoco are easy on the eyes, ready to cruise up the steepest of hills, and make light work of your most tiring commutes. Both bikes feature a semi-integrated 504 Wh battery that powers a Shimano E6100 motor. With the Dew-E and the Ecoco, a little pedaling goes a long way.

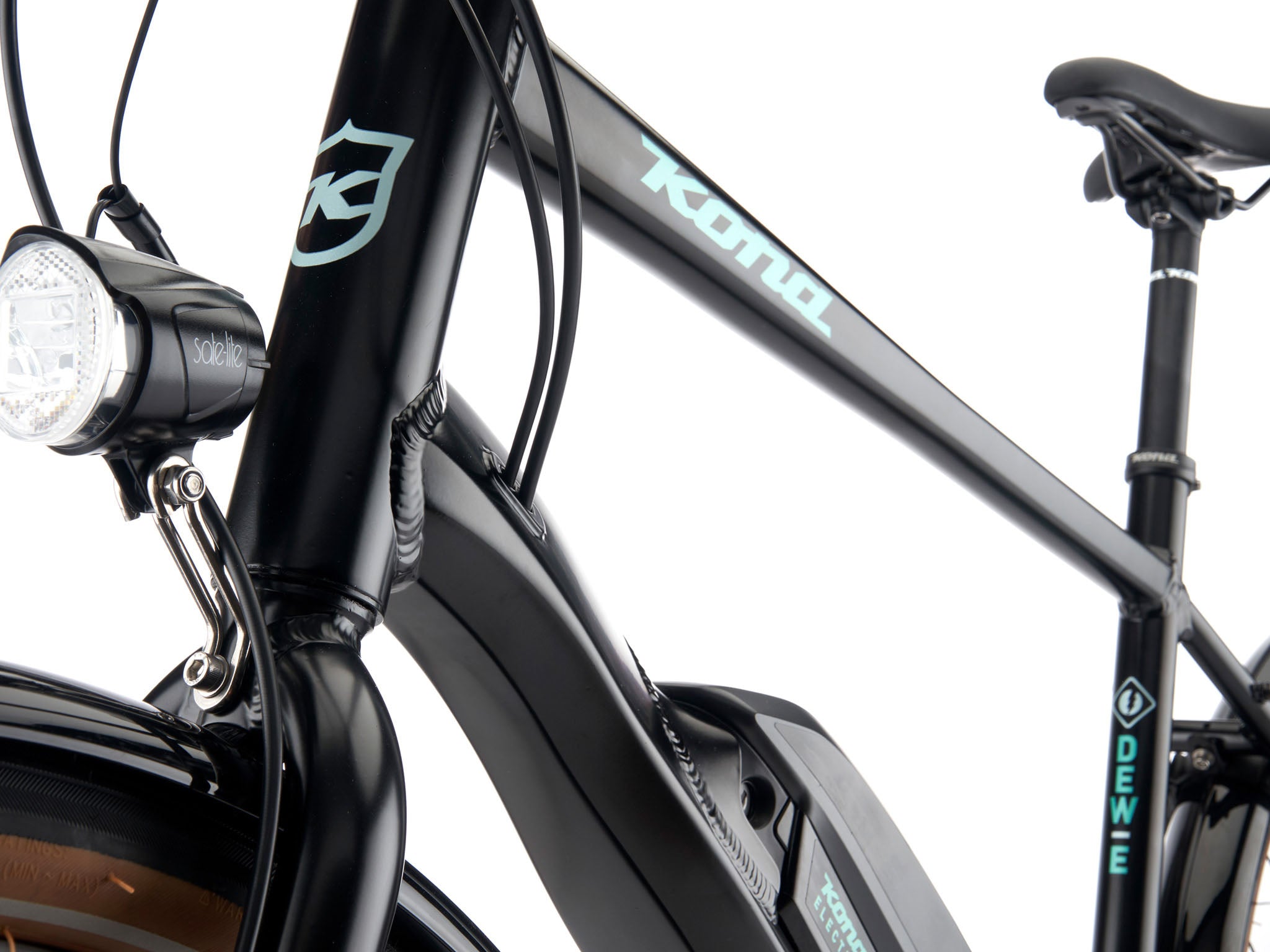

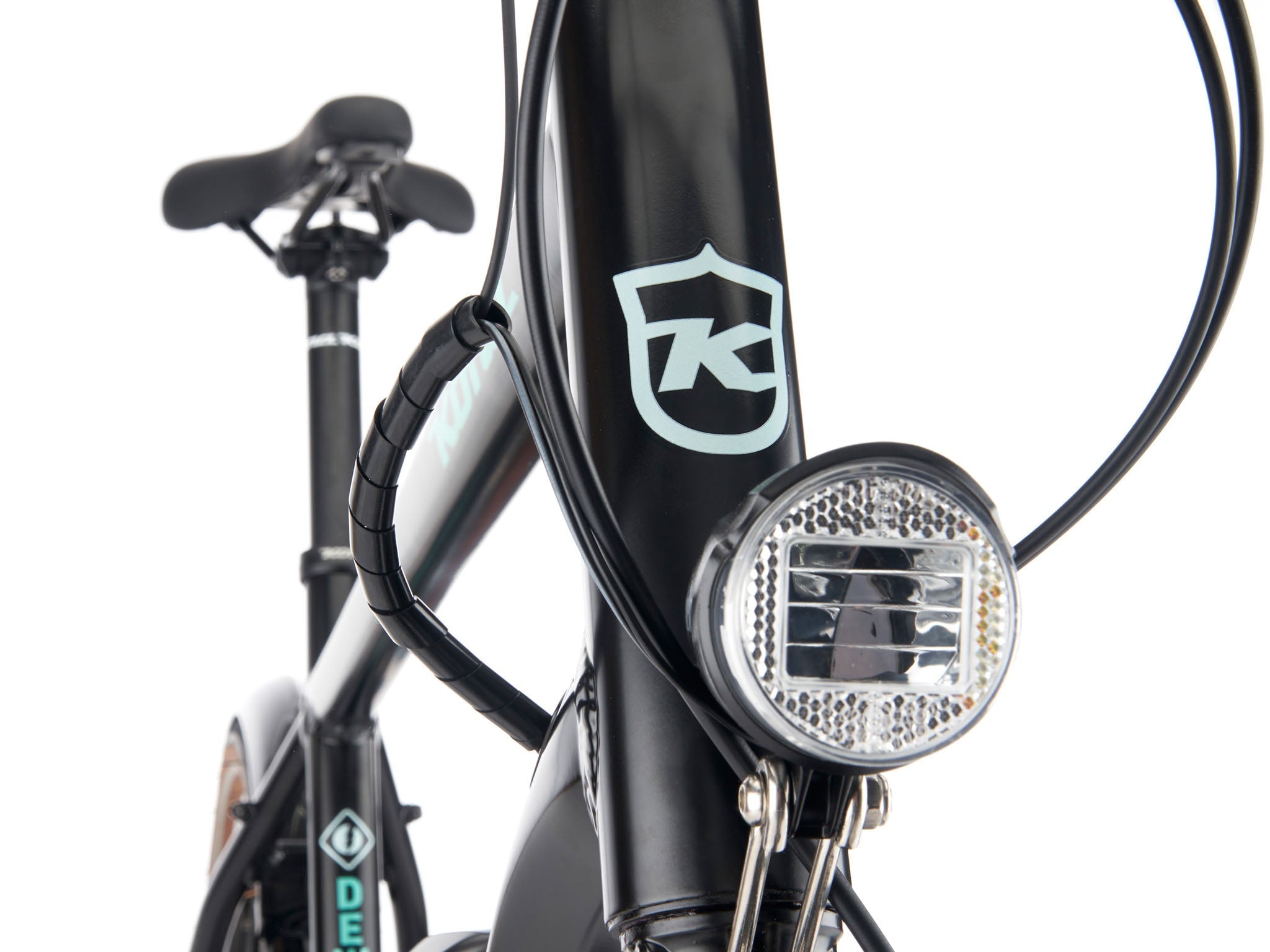

Both the Dew-E and the Ecoco feature front and rear fenders and lights, keeping you safe and clean on your commute.

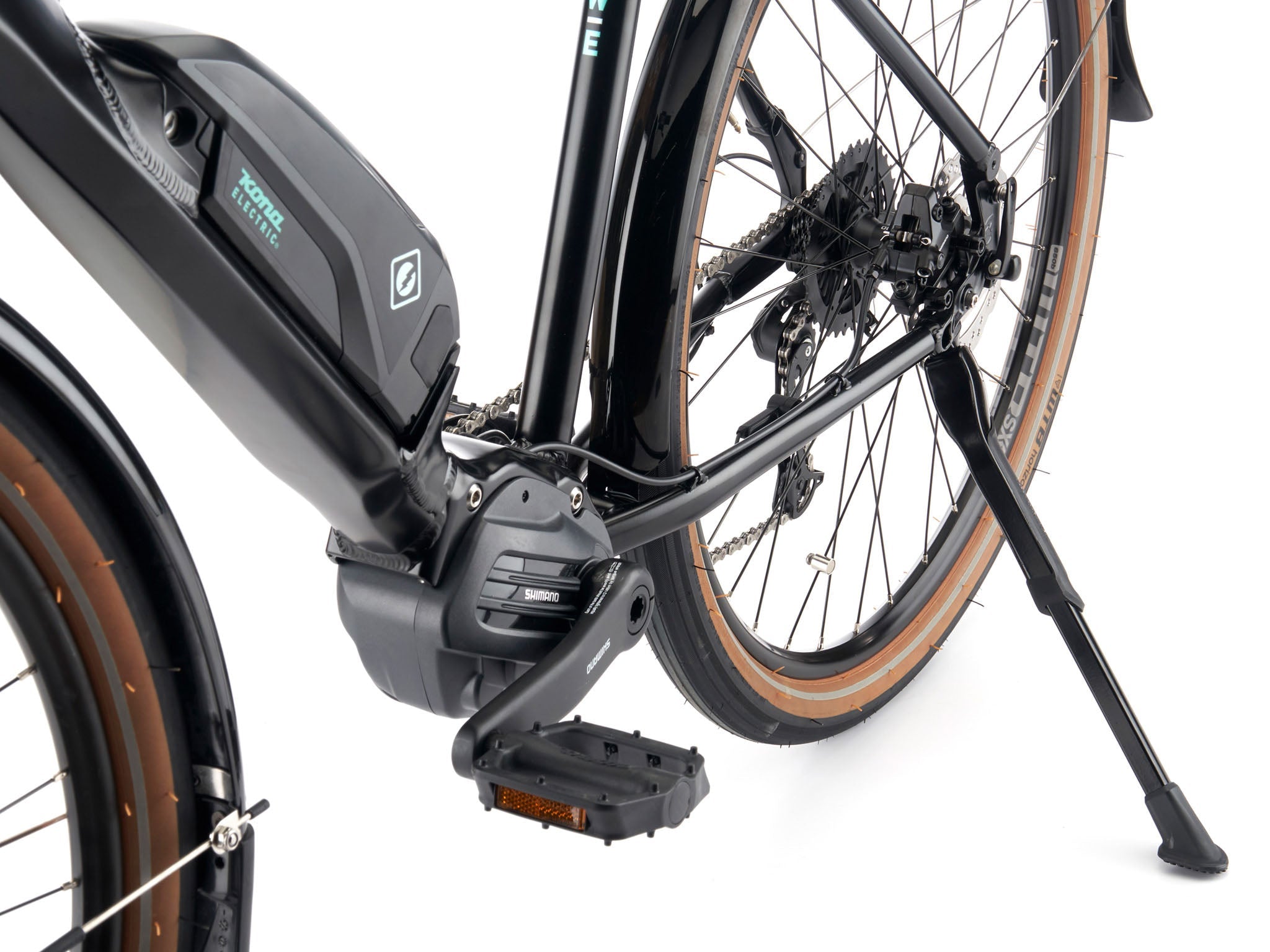

Both bikes rely on a sturdy integrated kickstand.
The Ecoco uses swept back bars for a more upright riding position. The bars easily accept a front basket to help haul groceries or a six pack.
WTB Horizon Comp Puncture Protect tires on both the Dew-e and Ecoco
